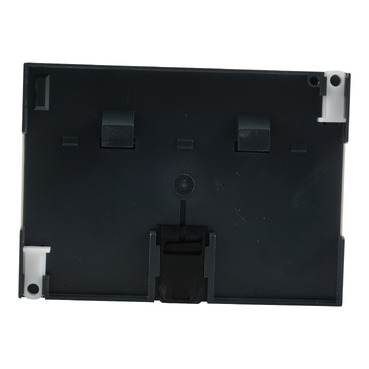

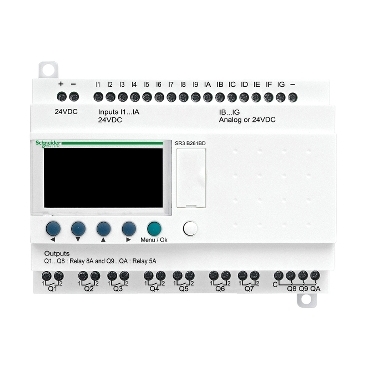

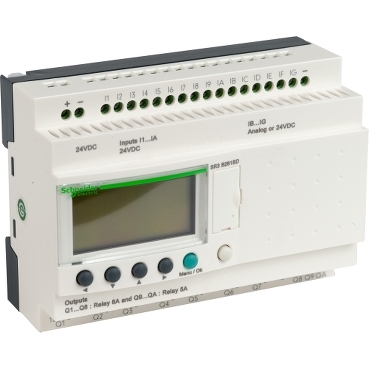

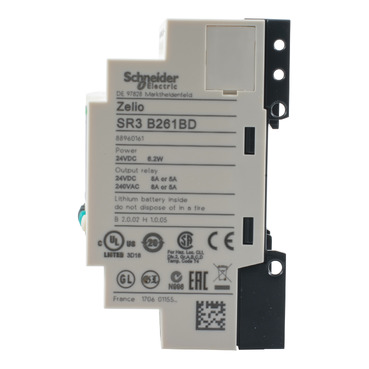

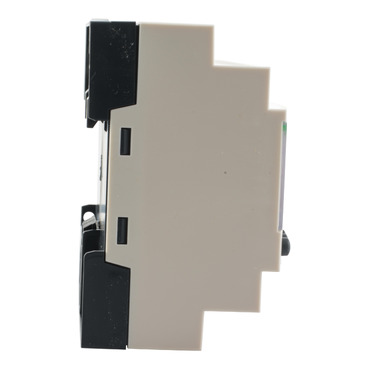

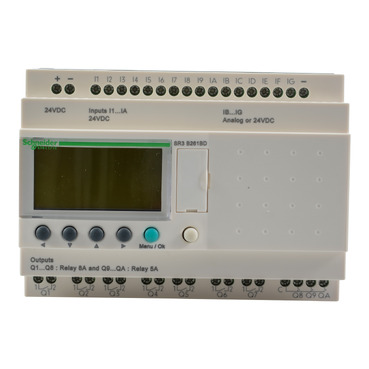

Zelio Logic Modular smart relay 26 I/O, 24V DC, clock, display

Item Number: SR3B261BD

1 PCE 0

This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24V direct current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110549980	-

Specifications

Design

Range of product

Zelio Logic

Product or component type

modular smart relay

Warranty

18 months

Physical

Backup time

10 years at 25 °C

Operating distance

10 m between stations, with screened cable (sensor not isolated) for analogue input circuit

Electrical durability

AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to IEC 60947-5-1
AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to IEC 60947-5-1
DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to IEC 60947-5-1
DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to IEC 60947-5-1

Mechanical durability

10000000 cycles for relay output

Connections - terminals

screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid
screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid
screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end

Net weight

0.4 kg

Product certifications

GL
C-Tick
CSA
UL
GOST

Standards

IEC 61000-4-2 level 3
IEC 61000-4-5
IEC 61000-4-6 level 3
IEC 61000-4-11
IEC 61000-4-3
IEC 60068-2-27 Ea
IEC 61000-4-12
IEC 60068-2-6 Fc
IEC 61000-4-4 level 3

Ip degree of protection

IP20 (terminal block) conforming to IEC 60529
IP40 (front panel) conforming to IEC 60529

Environmental characteristic

EMC directive conforming to IEC 61000-6-2
EMC directive conforming to IEC 61000-6-3
EMC directive conforming to IEC 61000-6-4
EMC directive conforming to IEC 61131-2 zone B
low voltage directive conforming to IEC 61131-2

Ambient air temperature for operation

-20...40 °C in non-ventilated enclosure conforming to IEC 60068...2-1 and IEC 60068...2-2
-20...55 °C conforming to IEC 60068...2-1 and IEC 60068...2-2

Ambient air temperature for storage

-40...70 °C

Relative humidity

95 % without condensation or dripping water

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP060406EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Average percentage of recycled plastic content

0 %

Package 3 bare product quantity

160

Package 2 bare product quantity

Package 1 bare product quantity

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Local display

with

Number or control scheme lines

0...500 with FBD programming
0...240 with ladder programming

Cycle time

6...90 ms

Clock drift

12 min/year at 0-55 °C
6 s/month at 25-25 °C

Checks

program memory on each power up

[us] rated supply voltage

24 V

Supply voltage limits

19.2...30 V

Maximum supply current

190 mA (without extension)
300 mA (with extensions)

Power dissipation in w

10 W with extensions
6 W without extension

Reverse polarity protection

with

Discrete input number

16 conforming to IEC 61131-2 Type 1

Discrete input type

resistive

Discrete input voltage

24 V DC

Discrete input current

4 mA

Counting frequency

1 kHz for discrete input

Voltage state 1 guaranteed

>= 15 V for I1...IA and IH...IR discrete input circuit
>= 15 V for IB...IG used as discrete input circuit

Voltage state 0 guaranteed

<= 5 V for I1...IA and IH...IR discrete input circuit
<= 5 V for IB...IG used as discrete input circuit

Current state 1 guaranteed

>= 1.2 mA (IB...IG used as discrete input circuit)
>= 2.2 mA (I1...IA and IH...IR discrete input circuit)

Current state 0 guaranteed

<= 0.5 mA (IB...IG used as discrete input circuit)
<= 0.75 mA (I1...IA and IH...IR discrete input circuit)

Input compatibility

3-wire proximity sensors PNP for discrete input

Analogue input number

Analogue input type

common mode

Analogue input range

0...10 V
0...24 V

Temperature probe type

NTC 10k at 25 °C
NTC 1000k at 25 °C
KTY81 210/220/221/222/250
Pt 500

Maximum permissible voltage

30 V for analogue input circuit

Analogue input resolution

8 bits

Lsb value

39 mV for analogue input circuit

Conversion time

smart relay cycle time for analogue input circuit

Conversion error

+/- 5 % at 25 °C for analogue input circuit
+/- 6.2 % at 55 °C for analogue input circuit

Repeat accuracy

+/- 2 % at 55 °C for analogue input circuit

Input impedance

12 kOhm for IB...IG used as analogue input circuit
12 kOhm for IB...IG used as discrete input circuit
7.4 kOhm for I1...IA and IH...IR discrete input circuit

Number of outputs

10 relay

Output voltage limits

24...250 V AC (relay output)
5...30 V DC (relay output)

Contacts type and composition

NO for relay output

Output thermal current

5 A for 2 outputs for relay output
8 A for 8 outputs for relay output

Switching capacity in ma

>= 10 mA at 12 V (relay output)

Operating rate in hz

0.1 Hz (at Ie) for relay output
10 Hz (no load) for relay output

[uimp] rated impulse withstand voltage

4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1

Clock

with

Response time

10 ms (from state 0 to state 1) for relay output
5 ms (from state 1 to state 0) for relay output

Tightening torque

0.5 N.m

Overvoltage category

III conforming to IEC 60664-1

Immunity to microbreaks

1 ms

Disturbance radiated/conducted

class B conforming to EN 55022-11 group 1

Pollution degree

2 conforming to IEC 61131-2

Operating altitude

2000 m

Maximum altitude transport

3048 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

6.800 cm

Package 1 width

10.000 cm

Package 1 length

13.300 cm

Package 1 weight

379.000 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

8.064 kg

Unit type of package 3

P06

Number of units in package 3

160

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

73.012 kg

Total lifecycle carbon footprint

253 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

49.00265589919458

Carbon footprint of the manufacturing phase [a1 to a3]

49 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.7941290734453625

Carbon footprint of the distribution phase [a4]

0.8 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.07517082377885803

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

201.7502153207909

Carbon footprint of the use phase [b2, b3, b4, b6]

202 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

1.001736206909394

Carbon footprint of the end-of-life phase [c1 to c4]

1 kg CO2 eq.

Pvc free

Yes

Take-back

Product contributes to saved and avoided emissions

Total lifecycle carbon footprint

252.62390732411907

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

eee2fc35-1620-4b70-b1d5-206e9240044e

Pvc free

Yes

End of life manual availability

ENVEOLI0604006EN

Take-back

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

Show all specifications

Documents & downloads

hide show

All
CAD Files and Packs
Technical Data Catalogues
End of Life Manual
Environmental Disclosure
Installation Instruction
Operating Manuals
Certificates (MSDS)
Declaration of Conformity
eTechPub
Declaration of Conformity (Sustainability)
Software - Release

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Zelio Logic Modular smart relay 26 I/O, 24V DC, clock, display

Item Number: SR3B261BD

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Operating Manuals

Certificates (MSDS)

Declaration of Conformity

eTechPub

Declaration of Conformity (Sustainability)

Software - Release

Modular smart relays with display 24 V DC or 24 V AC or 100 to 240 V AC

Modular smart relays with display 24 V DC or 24 V AC or 100 to 240 V AC

Modular smart relays with display 24 V DC or 24 V AC or 100 to 240 V AC

Compact smart relay Zelio Logic - 20 / 26 IO- 3D CAD

Catalog Zelio Logic Smart relays for simple automation systems from 10 to 40 IOs_English_January 2022

Zelio Logic Smart Relays

Zelio Logic Smart Relays

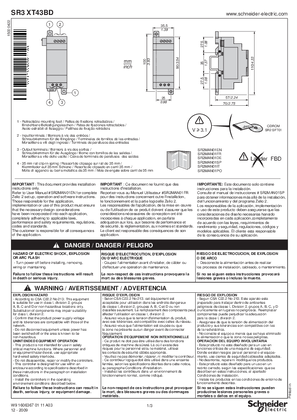

SR3XT43D I/O Zelio2 Analog I/O extension module

SR3B... Logic modular module Zelio with screen

SR3NETO1BD Ethernet server communication module

Zelio Logic Programming Guide

Zelio Logic - Smart Relay, User Manual

Zelio Soft 2 Applications Examples Guide

Zelio Logic 2 Quick Start

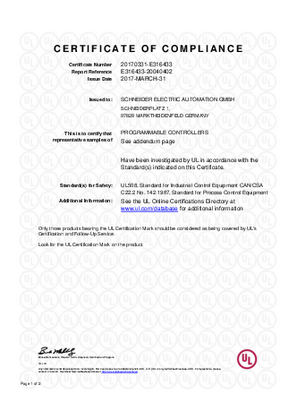

Zelio SR2 SR3 CoC UL
