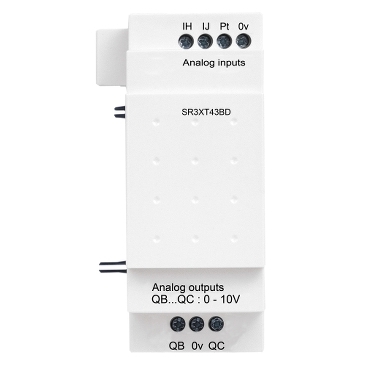

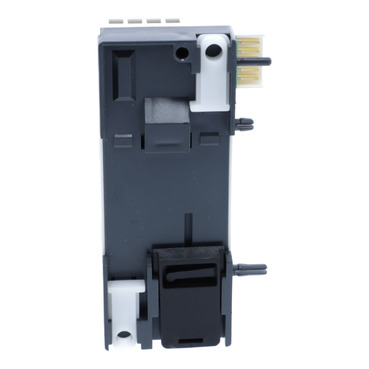

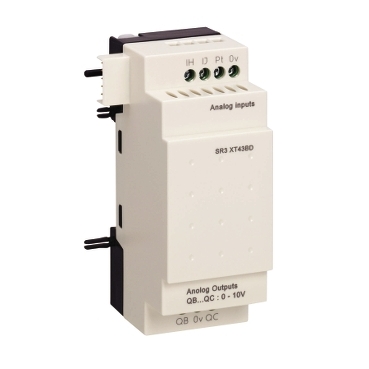

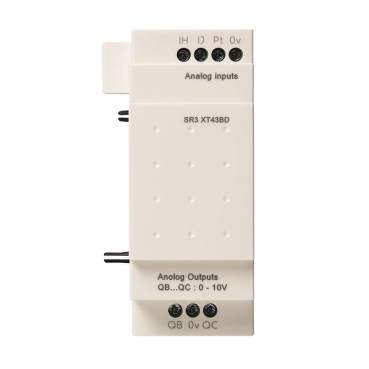

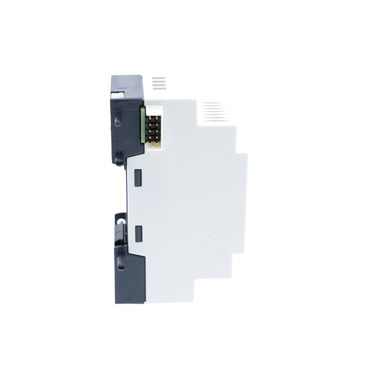

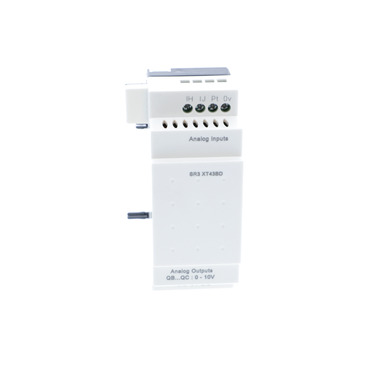

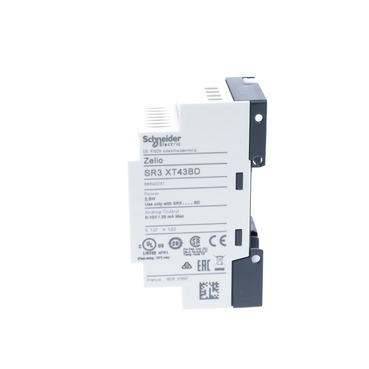

Datasheet
Specifications
Design
Range of product
Product or component type
Warranty
Physical
Load type
Maximum load current
Operating distance
- 10 m with screened cable for analogue input circuit
- 10 m with screened cable for analogue output
Connections - terminals
- screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) semi-solid
- screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) solid
- screw terminals, 2 x 0.25...2 x 1.5 mm² (AWG 23...AWG 16) solid
- screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
- screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end
Net weight
Product certifications
- GOST
- UL
- C-Tick
- CSA
Standards
- IEC 61000-4-12
- IEC 61000-4-5
- IEC 61000-4-3
- IEC 61000-4-4 level 3
- IEC 61000-4-6 level 3
- IEC 61000-4-2 level 3
- IEC 60068-2-6 Fc
- IEC 61000-4-11
- IEC 60068-2-27 Ea
Ip degree of protection
- IP20 (terminal block) conforming to IEC 60529
- IP40 (front panel) conforming to IEC 60529
Environmental characteristic
- EMC directive conforming to IEC 61000-6-2
- EMC directive conforming to IEC 61000-6-3
- EMC directive conforming to IEC 61000-6-4
- EMC directive conforming to IEC 61131-2 zone B
- low voltage directive conforming to IEC 61131-2
Ambient air temperature for operation
- -20...40 °C conforming to IEC 60068...2-1 and IEC 60068...2-2
- -20...55 °C conforming to IEC 60068...2-1 and IEC 60068...2-2
Ambient air temperature for storage
Relative humidity
Mercury free
Rohs exemption information
Environmental disclosure
Eu rohs directive
Reach regulation
China rohs regulation
California proposition 65
Others
Legacy weee scope
Package 1 bare product quantity
Package 2 bare product quantity
Weee label
Average percentage of recycled plastic content
Analogue input number
Analogue input type
Analogue input range
- 0...10 V
- 0...20 mA
- -25...125 °C
Temperature probe type
Maximum permissible voltage
[imp] maximum permanent current
Analogue input resolution
Input impedance
- 18 kOhm, input range: 0...10 V for analogue input circuit
- 247 Ohm, input range: 0...20 mA for analogue input circuit
Analogue output number
Analogue output range
Analogue output resolution
Short-circuit protection
Lsb value
- 0.15 °C, - 25...125 °C for analogue input circuit
- 20 µA, 0...20 mA for analogue input circuit
- 9.8 mV, 0...10 V for analogue input circuit
- 9.8 mV, 0...10 V for analogue output
Conversion time
- smart relay cycle time for analogue input circuit
- smart relay cycle time for analogue output
Conversion error
- +/- 1 % of the full scale value, input range: 0...10 V (25 °C) for analogue output
- +/- 1 % of the full scale value, input range: 0...10 V (55 °C) for analogue output
- +/- 1 %, input range: 0...10 V (25 °C) for analogue input circuit
- +/- 1 %, input range: 0...10 V (55 °C) for analogue input circuit
- +/- 1 %, input range: 0...20 mA (25 °C) for analogue input circuit
- +/- 1 %, input range: 0...20 mA (55 °C) for analogue input circuit
- +/- 1.5 °C, input range: - 25...125 °C (25 °C) for analogue input circuit
- +/- 1.5 °C, input range: - 25...125 °C (55 °C) for analogue input circuit
Repeat accuracy
- < +/- 0.3 °C, input range: - 25...125 °C at 25 °C for analogue input circuit
- <= +/- 1 %, input range: 0...10 V at 25 °C for analogue input circuit
- <= +/- 1 %, input range: 0...10 V at 55 °C for analogue output
- <= +/- 1 %, input range: 0...20 mA at 25 °C for analogue input circuit
Reverse polarity protection
Tightening torque
Disturbance radiated/conducted
Pollution degree
Operating altitude
Maximum altitude transport
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Green premium status for reporting
Total lifecycle carbon footprint
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the installation phase [a5]
Carbon footprint of the installation phase [a5]
Carbon footprint of the use phase [b2, b3, b4, b6]
Carbon footprint of the use phase [b2, b3, b4, b6]
Sustainable packaging
Carbon footprint of the end-of-life phase [c1 to c4]
Carbon footprint of the end-of-life phase [c1 to c4]
Pvc free
Take-back
Product contributes to saved and avoided emissions
Removable battery
Total lifecycle carbon footprint
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
Pvc free
End of life manual availability
Take-back
Weee label
Warranty (in months)
