TeSys GV4 Voltage release TeSys GV4, MX coil coil, 24VAC/DC

Item Number: GV4AS027

TeSys GV electrical trip unit, MX shunt trip, 24V AC 50Hz/60Hz or 24V DC, for motor circuit breakers GV4. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC),

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

voltage release

Device application

control

Physical

Range compatibility

  • TeSys TeSys GV4
  • TeSys TeSys BV4

Mounting mode

internal mounting

Mechanical durability

20000 cycles

Connections - terminals

spring terminals 1 0.5-1.5 mm² - cable stiffness: flexible without cable end

Wire stripping length

8 mm

Quantity per set

set of 1

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2311043EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Weee applicability

Finished product

Package 1 bare product quantity

1

Legacy weee scope

In

Device short name

MX

Voltage release type

shunt trip release

[uc] control circuit voltage

  • 24 V AC 50/60 Hz
  • 24 V DC

[ui] rated insulation voltage

24 V conforming to IEC 60947-1

Threshold tripping voltage

  • 0.7...1.1 Un failsafe opening
  • < 0.7 Un possible opening

Impulse duration

>= 20 ms

Maximum inrush power in va

6 VA

Maximum inrush power in w

4 W

Maximum hold-in power consumption in va

10 VA

Maximum hold-in power consumption in w

1 W

Operating time

< 50 ms

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.500 cm

Package 1 width

6.000 cm

Package 1 length

8.500 cm

Package 1 weight

64.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

9.000 cm

Package 2 width

13.000 cm

Package 2 length

18.500 cm

Package 2 weight

690.000 g

Unit type of package 3

S03

Number of units in package 3

120

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

8.500 kg

Total lifecycle carbon footprint

2 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

1.656123076923077

Carbon footprint of the manufacturing phase [a1 to a3]

2 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.00836923076923077

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.034432

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.00034253

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.09759999999999999

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Halogen-free status

Product contains halogen above thresholds

Energy efficiency optimized

False

F-gas free

N/A

Updatability

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

1.7968668376923076

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

75582d60-9779-4641-a03b-18e996230a58

Halogen-free status

Product contains halogen above thresholds

End of life manual availability

ENVEOLI2311043EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Operating Manuals

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Shunt trip MX AC/DC for TeSys GV4/BV4 - 3D CAD
ZIP

Shunt trip MX AC/DC for TeSys GV4/BV4 - 3D CAD

VERSION

1.0

DATE

30 Nov 2021

REVISION

1.0

DOWNLOAD (ZIP) 811.7 KB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB

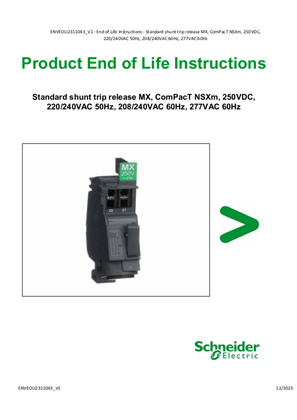

Standard shunt trip release MX, ComPacT NSXm, 250VDC, 220/240VAC 50Hz, 208/240VAC 60Hz, 277VAC 60Hz - End of Life Instructions
ZIP

Standard shunt trip release MX, ComPacT NSXm, 250VDC, 220/240VAC 50Hz, 208/240VAC 60Hz, 277VAC 60Hz - End of Life Instructions

VERSION

1.0

DATE

26 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 328.2 KB

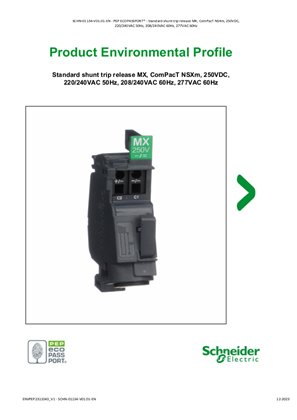

Standard shunt trip release MX, ComPacT NSXm, 250VDC, 220/240VAC 50Hz, 208/240VAC 60Hz, 277VAC 60Hz - Product Environmental Profile
