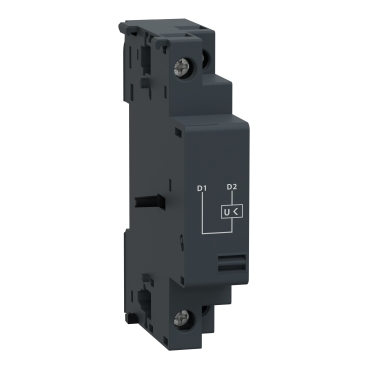

TeSys GV2, Undervoltage release (MN), TeSys Deca,48V AC 50Hz

Home ProductsIndustrialTeSysUndervoltage release (MN)

TeSys GV2, Undervoltage release (MN), TeSys Deca,48V AC 50Hz

Item Number: GVAU055

Datasheet

Product Dimensions

Width icon

Width18 mm

Height icon

Height89 mm

Depth icon

Depth66 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys GV2|TeSys GV3|TeSys Deca

Range

TeSys|TeSys Deca

Product or component type

undervoltage release

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Range compatibility

TeSys GV2ME|TeSys GV2LE|TeSys GV2L|TeSys GV2P|TeSys GV3L|TeSys GV3P|TeSys Deca

Connections - terminals

screw clamp terminals 1 cable(s) 1-2.5 mm²solid|screw clamp terminals 2 cable(s) 1-2.5 mm²solid|screw clamp terminals 1 cable(s) 0.75-2.5 mm²flexible without cable end|screw clamp terminals 2 cable(s) 0.75-2.5 mm²flexible without cable end|screw clamp terminals 1 cable(s) 0.75-1.5 mm²flexible with cable end|screw clamp terminals 2 cable(s) 0.75-1.5 mm²flexible with cable end

Mechanical durability

10000 cycles with GV3P and GV3L|30000 cycles with GV2ME and GV2P

Quantity per set

set of 10

Height

89 mm

Width

18 mm

Depth

66 mm

Net weight

0.105 kg

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2207006

Circularity profile

ENVEOLI2207006

Others

Package 1 bare product quantity

1

Device short name

GVAU

[uc] control circuit voltage

48 V AC 50 Hz

Control circuit voltage limits

0.85...1.1 Un

[ui] rated insulation voltage

690 V AC conforming to IEC 60947-1|600 V AC conforming to UL 60947-4-1|600 V AC conforming to CSA C22.2 No 60947-4-1

Threshold tripping voltage

0.7...0.35 Un

Inrush power in va

12 VA AC

Inrush power in w

8 W

Hold-in power consumption in va

3.5...3.5 VA AC

Hold-in power consumption in w

1.1.1 W

Operating time

10...15 ms conforming to IEC 60947-1

On-load factor

100 %

Tightening torque

< 1.4 N.m on screw clamp terminals

Compatibility code

GVAU

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.5 cm

Package 1 width

9.0 cm

Package 1 length

8.3 cm

Package 1 weight

115.0 g

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
