Specifications
Design
Range
- TeSys
- TeSys Deca
Product or component type
Product compatibility
- GV2L
- GV2P
- GV2RT
- GV3L
- GV2LE
- GV3P
- GV2ME
Warranty
Physical
[ue] rated operational voltage
- 48...690 V AC
- 24...240 V DC
Mechanical durability
Protection type
- GB2CB... circuit breaker
- gG fuse 10 A
Height
Width
Depth
Net weight
Environmental characteristic
Product certifications
Reach regulation
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Others
Life cycle assessment data
Substance regulation data deliverable
Package 4 bare product quantity
Package 3 bare product quantity
Package 2 bare product quantity
Package 1 bare product quantity
Device short name
Mounting location
Auxiliary contacts operation
Pole contact composition
[ui] rated insulation voltage
- 690 V conforming to IEC 60947-1
- 300 V conforming to UL 508
- 300 V conforming to CSA C22.2 No 14
[ith] conventional free air thermal current
- 6 A
- 2.5 A for fault signalling
Minimum switching current
Minimum switching voltage
Rated operational power in va
- 300 VA at 48-48 V AC-15 - electrical durability: 100000 cycles
- 414 VA at 690-690 V AC-15 - electrical durability: 100000 cycles
- 500 VA at 110-127 V AC-15 - electrical durability: 100000 cycles
- 500 VA at 500-500 V AC-15 - electrical durability: 100000 cycles
- 650 VA at 440-440 V AC-15 - electrical durability: 100000 cycles
- 720 VA at 230-240 V AC-15 - electrical durability: 100000 cycles
- 850 VA at 380-415 V AC-15 - electrical durability: 100000 cycles
- 36 VA at 24-24 V AC-14 - electrical durability: 1000 cycles
- 48 VA at 48-48 V AC-14 - electrical durability: 1000 cycles
- 72 VA at 110-127 V AC-14 - electrical durability: 1000 cycles
Rated operational power in w
- 120 W at 240 V DC-13 - electrical durability: 100000 cycles
- 140 W at 110 V DC-13 - electrical durability: 100000 cycles
- 140 W at 24 V DC-13 - electrical durability: 100000 cycles
- 180 W at 60 V DC-13 - electrical durability: 100000 cycles
- 240 W at 48 V DC-13 - electrical durability: 100000 cycles
- 15 W at 48 V DC-13 - electrical durability: 1000 cycles
- 24 W at 24 V DC-13 - electrical durability: 1000 cycles
- 9 W at 60 V DC-13 - electrical durability: 1000 cycles
Tightening torque
Compatibility code
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Packaging without single use plastic
Packaging made with recycled cardboard
Green premium status for reporting
Weee
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
End of Life Manual
-
Environmental Disclosure
-
Installation Instruction
-
Technical illustration
-

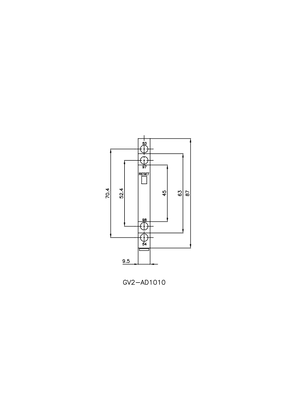

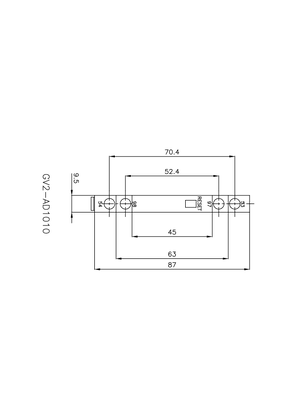

Technical Drawing
-
Certificates (MSDS)
-
Declaration of Conformity
Frequently Asked Questions
What is the operation of the GVAD fault signalling contacts of the GV2 & GV3 motor protection circuit breakers?
Hide ShowGV2ME, GV2P, GV2L, GV2LE, GV3P and GV3L motor protection circuit breakers (MPCB) can be fitted with the following fault indicating contact blocks:
GVAD0110
GVAD0101
GVAD1010
GVAD1001
These blocks comprise of fault signalling contacts and instantaneous auxiliary contacts.
GVAD0110
A N/C fault signalling contact (terminals 95-96), closed if there is no fault, open when a fault (magnetic or thermal) occurs.
A N/O instantaneous auxiliary contact (terminals 53-54), closed when the device is energised and open when the device is de-energised.
GVAD0101
A N/C fault signalling contact (terminals 95-96), closed if there is no fault, open when a fault (magnetic or thermal) occurs.
A N/C instantaneous auxiliary contact (terminals 51-52), closed when the device is de-energised and open when the device is energised.
GVAD1010
A N/O fault signalling contact (terminals 97-98), open if there is no fault, closed when a fault (magnetic or thermal) occurs.
A N/O instantaneous auxiliary contact (terminals 53-54), closed when the device is energised and open when the device is de-energised.
GVAD1001
A N/O fault signalling contact (terminals 97-98), open if there is no fault, closed when a fault (magnetic or thermal) occurs.
A N/C instantaneous auxiliary contact (terminals 51-52), closed when the device is de-energised and open when the device is energised.
The instantaneous auxiliary contact test is performed by creating a state of transition of the handle actuator between the de-energised position and the energised position.
The fault contact test is performed by pressing the test button when the handle actuator is in the closed position.
