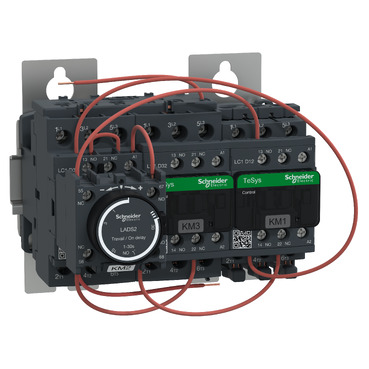

TeSys D Star Delta Starter TeSys Deca, 3 x 3P (3 NO), 32A, 24VAC 50/60Hz coil
Item Number: LC3D32AB7
Specifications
Design
Range of product
Range
- TeSys
- TeSys Deca
Product or component type
Warranty
Physical
Device presentation
[ue] rated operational voltage
[ie] rated operational current
Electrical durability
Provided equipment
Mounting support
Standards
- UL 508
- EN 60947-5-1
- IEC 60947-4-1
- CSA C22.2 No 14
- IEC 60947-5-1
- EN 60947-4-1
- IEC 60335-1
Product certifications
- DNV
- RINA
- GOST
- CCC
- CSA
- UL
- LROS (Lloyds register of shipping)
- BV
- GL
Connections - terminals
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
- power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: solid without cable end
- power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: solid without cable end
Mechanical durability
Width
Height
Depth
Net weight
Insulation resistance
Ip degree of protection
Climatic withstand
- conforming to IACS E10
- conforming to IEC 60947-1 Annex Q category D
Ambient air temperature for storage
Ambient air temperature for operation
Reach free of svhc
Toxic heavy metal free
Mercury free
Rohs exemption information
Environmental disclosure
Eu rohs directive
Reach regulation
China rohs regulation
Others
Life cycle assessment data
Substance regulation data deliverable
Legacy weee scope
Package 1 bare product quantity
Package 2 bare product quantity
Average percentage of recycled plastic content
Weee label
Product name
Device short name
Contactor application
Utilisation category
Poles description
Pole contact composition
Motor power kw
- 15 kW at 220/230 V AC 50/60 Hz
- 25 kW at 380/400 V AC 50/60 Hz
- 30 kW at 415 V AC 50/60 Hz
- 30 kW at 440 V AC 50/60 Hz
Control circuit type
[uc] control circuit voltage
Auxiliary contact composition
[uimp] rated impulse withstand voltage
Overvoltage category
Interlocking type
Tightening torque
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
- power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2
- power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Maximum operating rate
Starting time
Coil technology
Control circuit voltage limits
- drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
- operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
- operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Inrush power in va
- 70 VA 60 Hz cos phi 0.75 (at 20 °C)
- 70 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in va
- 7.5...7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
- 7 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation
Auxiliary contacts type
- mechanically linked conforming to IEC 60947-5-1 3 x 1 NO + 1 NC
- mirror contact conforming to IEC 60947-4-1 3 x 1 NC
Signalling circuit frequency
Minimum switching current
Switching voltage
Non-overlap time
- 1.5 ms on de-energisation between NC and NO contact
- 1.5 ms on energisation between NC and NO contact
Power range
- 15...25 kW at 380...440 V 3 phases
- 15...25 kW at 200...240 V 3 phases
- 30...50 kW at 380...440 V 3 phases
Motor starter type
Contactor coil voltage
Protective treatment
Pollution degree
Operating altitude
Fire resistance
Flame retardance
Mechanical robustness
- vibrations contactor open: 2 Gn, 5...300 Hz
- vibrations contactor closed: 4 Gn, 5...300 Hz
- shocks contactor closed: 15 Gn for 11 ms
- shocks contactor open: 8 Gn for 11 ms
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Green premium status for reporting
Total lifecycle carbon footprint
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the use phase [b2, b3, b4, b6]
Carbon footprint of the use phase [b2, b3, b4, b6]
Sustainable packaging
Carbon footprint of the end-of-life phase [c1 to c4]
Carbon footprint of the end-of-life phase [c1 to c4]
Pvc free
F-gas free
Take-back
Product contributes to saved and avoided emissions
Removable battery
Total lifecycle carbon footprint
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
Pvc free
End of life manual availability
Take-back
Weee label
Warranty (in months)
