TeSys K Control Relay 3NO+2NC, 0 to 690V, 125VDC standard coil, screw clamp
Item Number: CAD32GD
Specifications
Design
Range
- TeSys
- TeSys Deca
Range of product
Product or component type
Warranty
Physical
[ue] rated operational voltage
Mounting support
- rail
- plate
Connections - terminals
- screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
- screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end
- screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end
- screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end
- screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end
- screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end
Mechanical durability
Insulation resistance
Height
Width
Depth
Net weight
Standards
- EN/IEC 60947-5-1
- GB/T 14048.5
- UL 60947-5-1
- CSA C22.2 No 60947-5-1
- JIS C8201-5-1
Product certifications
- CB
- CCC
- UL
- CSA
- EAC
- CE
- UKCA
Ip degree of protection
Ambient air temperature for operation
- -40...60 °C
- 60...70 °C with derating
Ambient air temperature for storage
Mercury free
Rohs exemption information
Environmental disclosure
Eu rohs directive
Reach regulation
China rohs regulation
California proposition 65
Others
Life cycle assessment data
Substance regulation data deliverable
Package 1 bare product quantity
Average percentage of recycled plastic content
Legacy weee scope
Weee label
Product name
Device short name
Contactor application
Utilisation category
- DC-13
- AC-14
- AC-15
Pole contact composition
Control circuit type
[uc] control circuit voltage
[uimp] rated impulse withstand voltage
[ith] conventional free air thermal current
Irms rated making capacity
- 140 A AC conforming to IEC 60947-5-1
- 250 A DC conforming to IEC 60947-5-1
[icw] rated short-time withstand current
- 100 A - 1 s
- 120 A - 500 ms
- 140 A - 100 ms
Associated fuse rating
[ui] rated insulation voltage
- 600 V UL certified
- 600 V CSA certified
- 690 V conforming to IEC 60947-5-1
Tightening torque
- 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
- 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Control circuit voltage limits
- 0.1...0.25 Uc (-40-70 °C):drop-out DC
- 0.7...1.25 Uc (-40-60 °C):operational DC
- 1...1.25 Uc (60-70 °C):operational DC
Operating time
- 53...72 ms coil energisation and NO closing
- 16...24 ms coil de-energisation and NO opening
- 47...63 ms coil energisation and NC opening
- 15...25 ms coil de-energisation and NC closing
Maximum operating rate
Time constant
Inrush power in w
Hold-in power consumption in w
Minimum switching voltage
Minimum switching current
Non-overlap time
- 1.5 ms on energisation between NC and NO contact
- 1.5 ms on de-energisation between NC and NO contact
Mechanical robustness
- shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
- shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
- vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
- vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
Compatibility code
Protective treatment
Operating altitude
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Green premium status for reporting
Total lifecycle carbon footprint
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the installation phase [a5]
Carbon footprint of the installation phase [a5]
Carbon footprint of the use phase [b2, b3, b4, b6]
Carbon footprint of the use phase [b2, b3, b4, b6]
Sustainable packaging
Carbon footprint of the end-of-life phase [c1 to c4]
Carbon footprint of the end-of-life phase [c1 to c4]
F-gas free
Take-back
Product contributes to saved and avoided emissions
Removable battery
Total lifecycle carbon footprint
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
End of life manual availability
Take-back
Weee label
Warranty (in months)
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
Environmental Disclosure
-
End of Life Manual
-
Installation Instruction
-

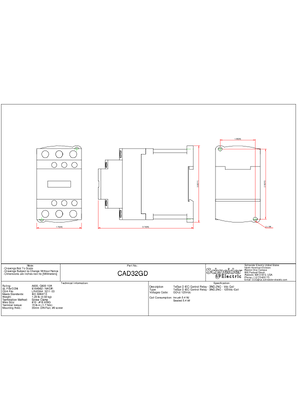

Technical Drawing
-
