TeSys K Control Relay 3 NO + 2 NC, <= 690 V, 440 V DC standard coil
Item Number: CAD32RD
Specifications
Design
Range
Range of product
Product or component type
Warranty
Physical
[ue] rated operational voltage
Mounting support
- plate
- rail
Connections - terminals
- screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
- screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end
- screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end
- screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end
- screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end
- screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end
Mechanical durability
Insulation resistance
Height
Width
Depth
Net weight
Standards
- EN/IEC 60947-5-1
- GB/T 14048.5
- UL 60947-5-1
- CSA C22.2 No 60947-5-1
- JIS C8201-5-1
Product certifications
- CB Scheme
- CCC
- UL
- CSA
- EAC
- CE
- UKCA
Ip degree of protection
Ambient air temperature for operation
- -40...60 °C
- 60...70 °C with derating
Ambient air temperature for storage
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Others
Package 1 bare product quantity
Product name
Device short name
Contactor application
Utilisation category
- DC-13
- AC-14
- AC-15
Pole contact composition
Control circuit type
[uc] control circuit voltage
[uimp] rated impulse withstand voltage
[ith] conventional free air thermal current
Irms rated making capacity
- 140 A AC conforming to IEC 60947-5-1
- 250 A DC conforming to IEC 60947-5-1
[icw] rated short-time withstand current
- 100 A - 1 s
- 120 A - 500 ms
- 140 A - 100 ms
Associated fuse rating
[ui] rated insulation voltage
- 600 V UL certified
- 600 V CSA certified
- 690 V conforming to IEC 60947-5-1
Tightening torque
- 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2
- 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit voltage limits
- 0.1...0.25 Uc (-40-70 °C):drop-out DC
- 0.7...1.25 Uc (-40-60 °C):operational DC
- 1...1.25 Uc (60-70 °C):operational DC
Operating time
- 53...72 ms coil energisation and NO closing
- 16...24 ms coil de-energisation and NO opening
- 47...63 ms coil energisation and NC opening
- 15...25 ms coil de-energisation and NC closing
Maximum operating rate
Time constant
Inrush power in w
Hold-in power consumption in w
Minimum switching voltage
Minimum switching current
Non-overlap time
- 1.5 ms on energisation between NC and NO contact
- 1.5 ms on de-energisation between NC and NO contact
Mechanical robustness
- shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27
- shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
- vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6
- vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
Compatibility code
Protective treatment
Operating altitude
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Weee
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
Installation Instruction
-

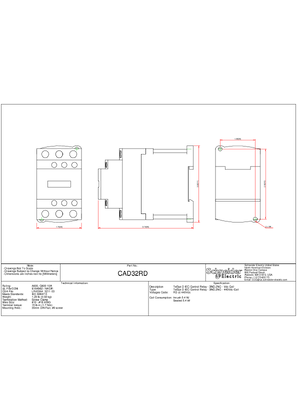

Technical Drawing
-

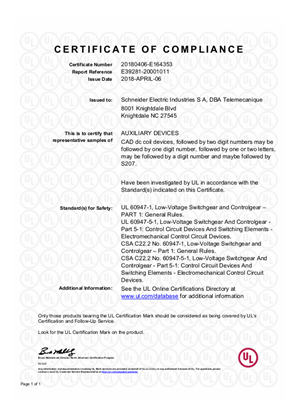

Certificates (MSDS)
-
Declaration of Conformity
CCC_TeSys Deca_CAD32&CAD50_Le Vaudreuil
VERSION
1.0
DATE
01 Apr 2025
REVISION
1.0

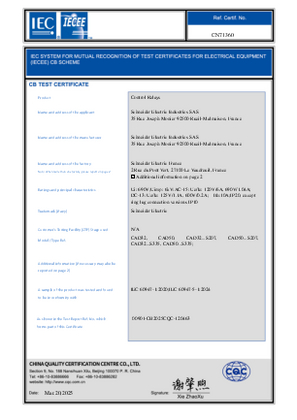

CB Certificate _TeSys Deca_CAD32&CAD50
VERSION
1.0
DATE
31 Mar 2025
REVISION
1.0
CCC_TeSys Deca_CAD32&CAD50_Hyderabad
VERSION
1.0
DATE
03 Dec 2024
REVISION
1.0
CCC_TeSys Deca_CAD32&CAD50_Batam
VERSION
1.0
DATE
03 Dec 2024
REVISION
1.0
DNV Type Approval Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40&CAD&LAD
VERSION
1.0
DATE
16 Aug 2024
REVISION
1.0
EU RO MR Type Approval Certificate_TeSys D_LC1D09-38&LC2D09-38&LC1D098-128&LC1DT20-25&LC2DT20-25&LC1D188-258&LC1DT32-DT40&LC2DT32-DT40&CAD&LAD
VERSION
1.0
DATE
16 Aug 2024
REVISION
1.0
Frequently Asked Questions
Are replacement contacts available for a CAD32 relay?
Hide ShowContacts need to be replaced in a CAD32** relay.
Product Line:
TeSys D IEC style relays
Environment:
CAD relays
Resolution:
The TeSys D IEC style relays do not offer replacement contacts.
