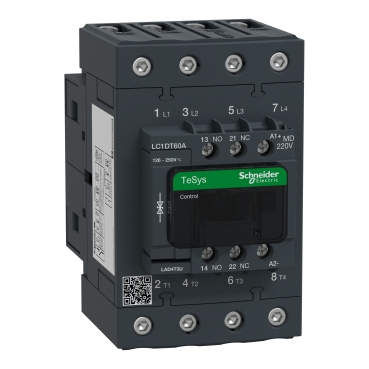

TeSys D Contactor TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 60A, 220VDC standard coil
Item Number: LC1DT60AMD
Specifications
Design
Range
- TeSys
- TeSys Deca
Range of product
Product or component type
Warranty
Physical
[ue] rated operational voltage
- power circuit: <= 690 V AC 25...400 Hz
- power circuit: <= 300 V DC
[ie] rated operational current
Mechanical durability
Electrical durability
Connections - terminals
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
- power circuit: screw clamp terminal 1 1-35 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminal 2 1-25 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminal 1 1-35 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminal 2 1-25 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminal 1 1-35 mm² - cable stiffness: solid without cable end
- power circuit: screw clamp terminal 2 1-25 mm² - cable stiffness: solid without cable end
Insulation resistance
Mounting support
- rail
- plate
Standards
- CSA C22.2 No 14
- EN 60947-4-1
- EN 60947-5-1
- IEC 60947-4-1
- IEC 60947-5-1
- UL 508
- IEC 60335-1
Product certifications
- GL
- DNV
- BV
- UL
- RINA
- CSA
- CCC
- GOST
- LROS (Lloyds register of shipping)
Ip degree of protection
Climatic withstand
- conforming to IACS E10 exposure to damp heat
- conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Height
Width
Depth
Net weight
Reach regulation
Reach free of svhc
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Others
Life cycle assessment data
Substance regulation data deliverable
Package 1 bare product quantity
Device short name
Contactor application
Utilisation category
Poles description
[uc] control circuit voltage
Compatibility code
Pole contact composition
Protective cover
[ith] conventional free air thermal current
- 10 A (at 60 °C) for signalling circuit
- 60 A (at 60 °C) for power circuit
Irms rated making capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1
- 250 A DC for signalling circuit conforming to IEC 60947-5-1
- 800 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity
[icw] rated short-time withstand current
- 320 A 40 °C - 10 s for power circuit
- 720 A 40 °C - 1 s for power circuit
- 72 A 40 °C - 10 min for power circuit
- 165 A 40 °C - 1 min for power circuit
- 100 A - 1 s for signalling circuit
- 120 A - 500 ms for signalling circuit
- 140 A - 100 ms for signalling circuit
Associated fuse rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1
- 80 A gG at <= 690 V coordination type 1 for power circuit
- 80 A gG at <= 690 V coordination type 2 for power circuit
Average impedance
Power dissipation per pole
[ui] rated insulation voltage
- power circuit: 600 V CSA certified
- power circuit: 600 V UL certified
- signalling circuit: 690 V conforming to IEC 60947-1
- signalling circuit: 600 V CSA certified
- signalling circuit: 600 V UL certified
- power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage category
Pollution degree
[uimp] rated impulse withstand voltage
Safety reliability level
- B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
- B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type
Coil technology
Control circuit voltage limits
- 0.1...0.3 Uc (-40-70 °C):drop-out DC
- 0.75...1.25 Uc (-40-60 °C):operational DC
- 1...1.25 Uc (60-70 °C):operational DC
Inrush power in w
Hold-in power consumption in w
Operating time
- 50 ±15 % ms closing
- 16...24 ms opening
Time constant
Maximum operating rate
Tightening torque
- control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver flat Ø 6 mm
- control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver Philips No 2
- power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm
- power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm
- control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2
- power circuit: 2.5 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2
Auxiliary contact composition
Auxiliary contacts type
- type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
- type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency
Minimum switching voltage
Minimum switching current
Non-overlap time
- 1.5 ms on de-energisation between NC and NO contact
- 1.5 ms on energisation between NC and NO contact
Contact compatibility
Protective treatment
Permissible ambient air temperature around the device
- -40...60 °C
- 60...70 °C with derating
Operating altitude
Fire resistance
Flame retardance
Mechanical robustness
- vibrations contactor open (2 Gn, 5...300 Hz)
- vibrations contactor closed (4 Gn, 5...300 Hz)
- shocks contactor closed (15 Gn for 11 ms)
- shocks contactor open (10 Gn for 11 ms)
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Green premium status for reporting
Sustainable packaging
Weee
Pvc free
Pvc free
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
