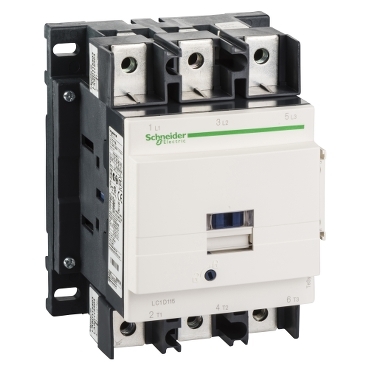

TeSys D Contactor TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 115A, 110V DC standard coil, lugs/bars terminals
Item Number: LC1D1156FD
Specifications
Design
Range
Range of product
Product or component type
Warranty
Physical
[ue] rated operational voltage
- power circuit: <= 1000 V AC 25...400 Hz
- power circuit: <= 300 V DC
[ie] rated operational current
- 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
- 115 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- 115 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Mechanical durability
Electrical durability
- 0.8 Mcycles 200 A AC-1 at Ue <= 440 V
- 0.95 Mcycles 115 A AC-3 at Ue <= 440 V
- 0.95 Mcycles 115 A AC-3e at Ue <= 440 V
Connections - terminals
- control circuit: lugs-ring terminals - external diameter: 8 mm
- power circuit: lugs-ring terminals - external diameter: 25 mm
- power circuit: bars 1 - busbar cross section: 5 x 25 mm
Insulation resistance
Mounting support
- plate
- rail
Standards
- CSA C22.2 No 14
- EN 60947-4-1
- IEC 60947-4-1
- IEC 60335-1:Clause 30.2
- IEC 60335-2-40:Annex JJ
- UL 60335-2-40:Annex JJ
- UL 60947-4-1
- CSA C22.2 No 60947-4-1
- JIS C8201-4-1
Product certifications
- UL
- CSA
- CCC
- UKCA
- CE
- EAC
- Marine
Ip degree of protection
Climatic withstand
- conforming to IACS E10 exposure to damp heat
- conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Height
Width
Depth
Net weight
Mercury free
Rohs exemption information
Environmental disclosure
Eu rohs directive
Reach regulation
China rohs regulation
Others
Life cycle assessment data
Substance regulation data deliverable
Legacy weee scope
Average percentage of recycled plastic content
Weee label
Package 3 bare product quantity
Package 2 bare product quantity
Package 1 bare product quantity
Device short name
Contactor application
- motor control
- resistive load
Utilisation category
- AC-4
- AC-3
- AC-1
- AC-3e
Poles description
[uc] control circuit voltage
Motor power kw
- 30 kW at 220...230 V AC 50/60 Hz (AC-3)
- 55 kW at 380...400 V AC 50/60 Hz (AC-3)
- 59 kW at 415...440 V AC 50/60 Hz (AC-3)
- 75 kW at 500 V AC 50/60 Hz (AC-3)
- 80 kW at 660...690 V AC 50/60 Hz (AC-3)
- 65 kW at 1000 V AC 50/60 Hz (AC-3)
- 18.5 kW at 400 V AC 50/60 Hz (AC-4)
- 30 kW at 220...230 V AC 50/60 Hz (AC-3e)
- 55 kW at 380...400 V AC 50/60 Hz (AC-3e)
- 59 kW at 415...440 V AC 50/60 Hz (AC-3e)
- 75 kW at 500 V AC 50/60 Hz (AC-3e)
- 80 kW at 660...690 V AC 50/60 Hz (AC-3e)
- 65 kW at 1000 V AC 50/60 Hz (AC-3e)
Motor power hp
- 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors
- 40 hp at 230/240 V AC 50/60 Hz for 3 phases motors
- 75 hp at 460/480 V AC 50/60 Hz for 3 phases motors
- 100 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Compatibility code
Pole contact composition
Protective cover
[ith] conventional free air thermal current
Irms rated making capacity
- 1260 A at 440 V for power circuit conforming to IEC 60947
- 140 A AC for signalling circuit conforming to IEC 60947-5-1
- 250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity
[icw] rated short-time withstand current
- 250 A 40 °C - 10 min for power circuit
- 550 A 40 °C - 1 min for power circuit
- 950 A 40 °C - 10 s for power circuit
- 1100 A 40 °C - 1 s for power circuit
- 100 A - 1 s for signalling circuit
- 120 A - 500 ms for signalling circuit
- 140 A - 100 ms for signalling circuit
Associated fuse rating
- 250 A gG at <= 690 V coordination type 1 for power circuit
- 200 A gG at <= 690 V coordination type 2 for power circuit
- 10 A gG for signalling circuit
Average impedance
Power dissipation per pole
- 24 W AC-1
- 7.9 W AC-3
- 7.9 W AC-3e
[ui] rated insulation voltage
- power circuit: 600 V CSA certified
- power circuit: 600 V UL certified
- power circuit: 1000 V conforming to IEC 60947-4-1
- signalling circuit: 690 V conforming to IEC 60947-1
- signalling circuit: 600 V CSA certified
- signalling circuit: 600 V UL certified
Overvoltage category
Pollution degree
[uimp] rated impulse withstand voltage
Safety reliability level
- B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1
- B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type
Coil technology
Control circuit voltage limits
- 0.75...1.2 Uc (-40-55 °C):operational DC
- 0.15...0.4 Uc (-40-70 °C):drop-out DC
- 1...1.2 Uc (55-70 °C):operational DC
Inrush power in w
Hold-in power consumption in w
Operating time
- 20...35 ms closing
- 40...75 ms opening
Time constant
Maximum operating rate
Tightening torque
- control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5
- control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5
- power circuit: 12 N.m - on lugs-ring terminals hexagonal screw head 13 mm M8
- power circuit: 12 N.m - on bars hexagonal screw head 13 mm M8
- control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver pozidriv No 2 M3.5
Auxiliary contact composition
Auxiliary contacts type
- type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
- type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency
Minimum switching voltage
Minimum switching current
Non-overlap time
- 1.5 ms on de-energisation between NC and NO contact
- 1.5 ms on energisation between NC and NO contact
Contact compatibility
Protective treatment
Permissible ambient air temperature around the device
- -40...60 °C
- 60...70 °C with derating
Operating altitude
Fire resistance
Flame retardance
Mechanical robustness
- vibrations contactor open (2 Gn, 5...300 Hz)
- vibrations contactor closed (4 Gn, 5...300 Hz)
- shocks contactor closed (15 Gn for 11 ms)
- shocks contactor open (6 Gn for 11 ms)
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Green premium status for reporting
Total lifecycle carbon footprint
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the installation phase [a5]
Carbon footprint of the installation phase [a5]
Carbon footprint of the use phase [b2, b3, b4, b6]
Carbon footprint of the use phase [b2, b3, b4, b6]
Sustainable packaging
Carbon footprint of the end-of-life phase [c1 to c4]
Carbon footprint of the end-of-life phase [c1 to c4]
Pvc free
F-gas free
Take-back
Product contributes to saved and avoided emissions
Removable battery
Total lifecycle carbon footprint
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
Pvc free
End of life manual availability
Take-back
Weee label
Warranty (in months)
