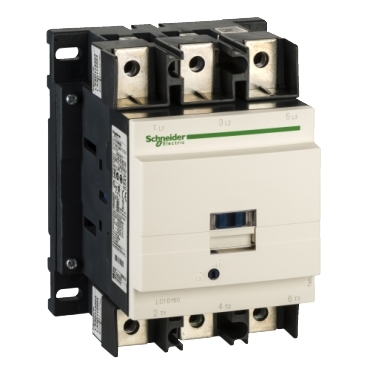

TeSys D Contactor 3P (3NO), AC-3 <=440V 150 A, 48 V DC standard coil, lugs/bars terminals
Item Number: LC1D1506ED
Specifications
Design
Range
Range of product
Product or component type
Warranty
Physical
[ue] rated operational voltage
- power circuit: <= 1000 V AC 25...400 Hz
- power circuit: <= 300 V DC
[ie] rated operational current
- 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
- 150 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
Mechanical durability
Electrical durability
- 0.85 Mcycles 150 A AC-3 at Ue <= 440 V
- 1 Mcycles 200 A AC-1 at Ue <= 440 V
Connections - terminals
- control circuit: lugs-ring terminals - external diameter: 8 mm
- power circuit: lugs-ring terminals - external diameter: 25 mm
- power circuit: bars 1 - busbar cross section: 5 x 25 mm
Insulation resistance
Mounting support
- plate
- rail
Standards
- CSA C22.2 No 14
- EN 60947-4-1
- EN 60947-5-1
- IEC 60947-4-1
- IEC 60947-5-1
- UL 508
Product certifications
- CSA
- RINA
- GOST
- CCC
- UL
- LROS (Lloyds register of shipping)
- BV
- DNV
- GL
Ip degree of protection
Climatic withstand
Height
Width
Depth
Net weight
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Others
Package 1 bare product quantity
Device short name
Contactor application
- motor control
- resistive load
Utilisation category
- AC-4
- AC-1
- AC-3
Poles description
[uc] control circuit voltage
Motor power kw
- 40 kW at 220...230 V AC 50/60 Hz (AC-3)
- 75 kW at 380...400 V AC 50/60 Hz (AC-3)
- 80 kW at 415...440 V AC 50/60 Hz (AC-3)
- 90 kW at 500 V AC 50/60 Hz (AC-3)
- 100 kW at 660...690 V AC 50/60 Hz (AC-3)
- 75 kW at 1000 V AC 50/60 Hz (AC-3)
- 22 kW at 400 V AC 50/60 Hz (AC-4)
Motor power hp
- 40 hp at 200/208 V AC 50/60 Hz for 3 phases motors
- 50 hp at 230/240 V AC 50/60 Hz for 3 phases motors
- 100 hp at 460/480 V AC 50/60 Hz for 3 phases motors
- 125 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Compatibility code
Pole contact composition
Protective cover
[ith] conventional free air thermal current
Irms rated making capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1
- 250 A DC for signalling circuit conforming to IEC 60947-5-1
- 1660 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity
[icw] rated short-time withstand current
- 250 A 40 °C - 10 min for power circuit
- 580 A 40 °C - 1 min for power circuit
- 1200 A 40 °C - 10 s for power circuit
- 1400 A 40 °C - 1 s for power circuit
- 100 A - 1 s for signalling circuit
- 120 A - 500 ms for signalling circuit
- 140 A - 100 ms for signalling circuit
Associated fuse rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1
- 315 A gG at <= 690 V coordination type 1 for power circuit
- 250 A gG at <= 690 V coordination type 2 for power circuit
Average impedance
Power dissipation per pole
- 24 W AC-1
- 13.5 W AC-3
[ui] rated insulation voltage
- power circuit: 600 V CSA certified
- power circuit: 600 V UL certified
- power circuit: 1000 V conforming to IEC 60947-4-1
- signalling circuit: 690 V conforming to IEC 60947-1
- signalling circuit: 600 V CSA certified
- signalling circuit: 600 V UL certified
Overvoltage category
Pollution degree
[uimp] rated impulse withstand voltage
Safety reliability level
- B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1
- B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type
Coil technology
Control circuit voltage limits
- 0.75...1.2 Uc (-40-55 °C):operational DC
- 0.15...0.4 Uc (-40-70 °C):drop-out DC
- 1...1.2 Uc (55-70 °C):operational DC
Inrush power in w
Hold-in power consumption in w
Operating time
- 20...35 ms closing
- 40...75 ms opening
Time constant
Tightening torque
- control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5
- control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5
- power circuit: 12 N.m - on lugs-ring terminals hexagonal screw head 13 mm M8
- power circuit: 12 N.m - on bars hexagonal screw head 13 mm M8
Auxiliary contact composition
Auxiliary contacts type
- type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
- type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency
Minimum switching voltage
Minimum switching current
Non-overlap time
- 1.5 ms on de-energisation between NC and NO contact
- 1.5 ms on energisation between NC and NO contact
Contact compatibility
Protective treatment
Permissible ambient air temperature around the device
- -40...60 °C
- 60...70 °C with derating
Operating altitude
Fire resistance
Flame retardance
Mechanical robustness
- vibrations contactor open (2 Gn, 5...300 Hz)
- vibrations contactor closed (4 Gn, 5...300 Hz)
- shocks contactor closed (15 Gn for 11 ms)
- shocks contactor open (6 Gn for 11 ms)
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Weee
Pvc free
Pvc free
