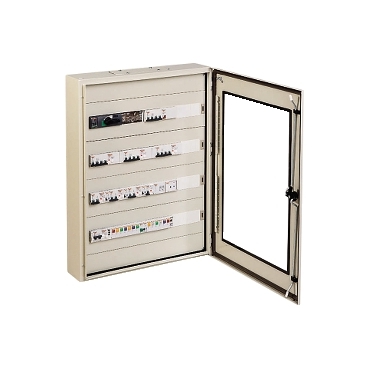

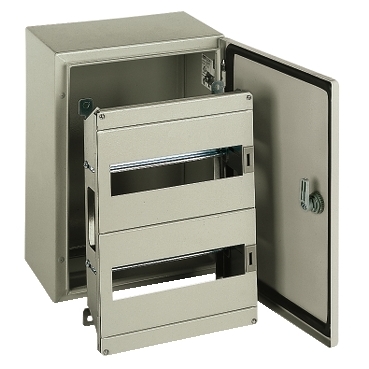

Spacial CRN Modular chassis DLM type for enclosure 66 modules, H700xW500mm

Item Number: NSYDLM66

1 PCE 0

Where To Buy

Datasheet

Download

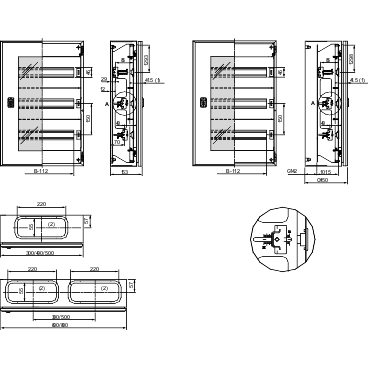

Product Dimensions

Width455 mm

Height653 mm

Depth101.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480162541	-

Specifications

Design

Range	PanelSeT
Device application	multi-purpose modular distribution application
Product or component type	chassis
Colour	front panel: grey (RAL 7035)
Surface finish	polyester powder
Warranty	18 months

Physical

Range compatibility	PanelSeT S3D PanelSeT CRN
Quantity per set	set of 1
Fixing mode	by fixing element - on front and back with supports location
Height	653 mm
Width	455 mm
Depth	101.5 mm
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1001004EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition	1 chassis structure 2 finish cover 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² 3 front panels with 35 mm DIN rail 1 plain front panel with mounting plate
Material	steel

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	30
Weee label	No
Warranty duration(in months) bmecat	18
	At least in Europe
Average percentage of recycled plastic content	0 %
Accessory / separate part category	mounting accessory
Device short name	DLM
Enclosure nominal dimensions	-
Mounting location	front of enclosure step slide
Adjustment	in height from 40 to 85 mm for DIN rail
Number of horizontal rows	3
Total number of 18 mm modules	66
Type of front plate	plain and cut-out plates
Number of cut-out	3 cut-outs
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	12.000 cm
Package 1 width	46.500 cm
Package 1 length	66.500 cm
Package 1 weight	6.410 kg
Unit type of package 2	PAM
Number of units in package 2	30
Package 2 height	130.000 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	205.000 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	9d8b9f71-75cb-4d4a-a1a2-50559a3b422a
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

PanelSeT CRN - Modular chassis DLM type for PanelSeT WM enclosure 66 modules H700xW500mm - 3D CAD

VERSION

1.0

DATE

09 Jan 2025

REVISION

1.0

DOWNLOAD (ZIP) 4.5 MB

ZIP

Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide

VERSION

2.0

DATE

04 Mar 2024

REVISION

2.0

DOWNLOAD (ZIP) 7.8 MB

ZIP

PanelSeT S3D - Steel Wall Mounting Enclosure

VERSION

1.0

DATE

24 Jun 2026

REVISION

1.0

DOWNLOAD (ZIP) 389.5 KB

ZIP

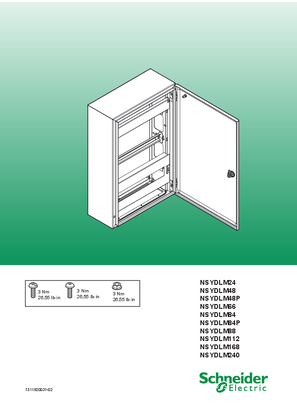

Harmony XPE PanelSeT PHD PLA S3HD SFHD - DLM modular Chasis - Instruction sheet
