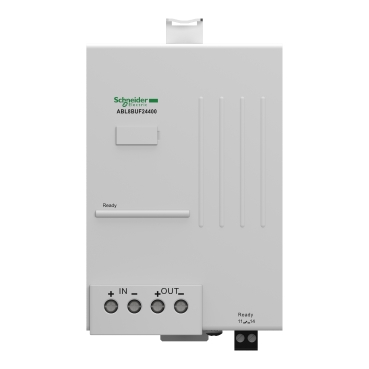

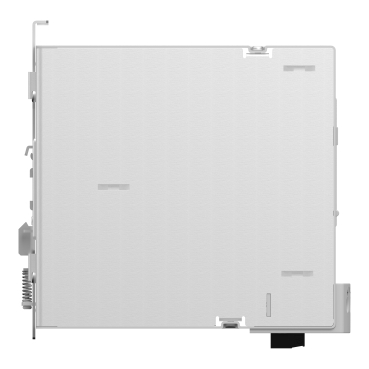

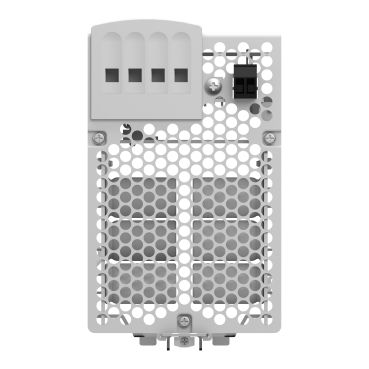

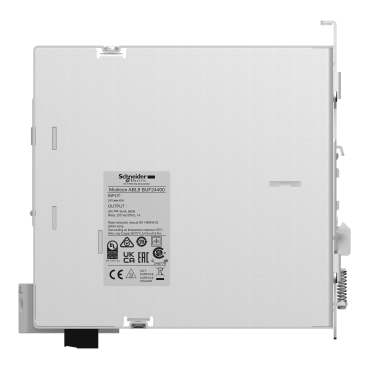

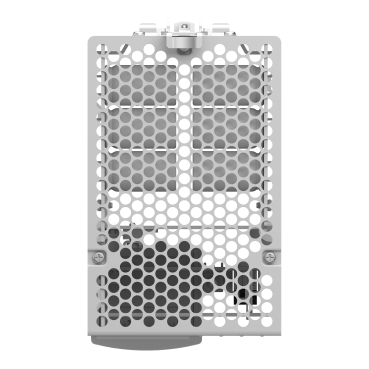

Phaseo ABL7 ABL8 Buffer module 24..28.8 V DC, 40 A, for power supply

Home ProductsIndustrialPhaseo ABL7 ABL8Buffer module

Phaseo ABL7 ABL8 Buffer module 24..28.8 V DC, 40 A, for power supply

Item Number: ABL8BUF24400

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Phaseo

Product or component type

buffer module

Warranty

18 months

Physical

Connections - terminals

  • for input connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8
  • for output connection: screw type terminals, connection capacity: 2 x 0.5...2 x 10 mm² AWG 20...AWG 8
  • for diagnostic relay: removable screw terminal block, connection capacity: 1 x 2.5 mm² AWG 14

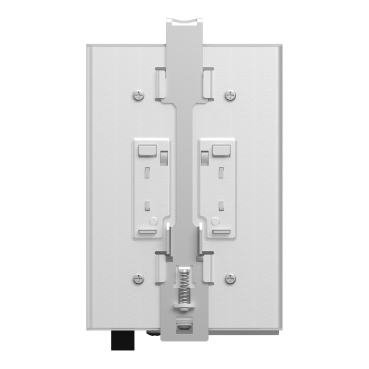

Fixing mode

  • by clips on 35 mm symmetrical DIN rail, operating position: horizontal
  • by clips on 35 mm symmetrical DIN rail, operating position: vertical

Marking

CE

Local signalling

  • 1 LED (green) for buffer ready
  • 1 relay for buffer ready

Net weight

1.2 kg

Product certifications

  • RCM
  • EAC

Standards

  • UL 508
  • CSA C22.2 No 60950-1

Ambient air temperature for operation

-25...60 °C

Ambient air temperature for storage

-40...85 °C

Environmental characteristic

  • EMC conforming to IEC 61000-6-3
  • EMC conforming to IEC 61000-6-2
  • safety conforming to IEC 60950-1
  • safety conforming to EN/IEC 61204-3

Ip degree of protection

IP20 conforming to IEC 60529

Relative humidity

  • 0...90 % during operation
  • 0...95 % during storage

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP121208EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 2 bare product quantity

60

Package 1 bare product quantity

1

Legacy weee scope

In

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Input voltage

24...28.8 V DC

Output voltage

  • (Uin-0.25) V in nominal mode DC
  • (Uin-1) V in buffer mode DC

Maximum output current

40 A

Holding time

  • 0.1 s at 40 A
  • 6 s at 0.5 A

Maximum output current

40 A

Input voltage limits

22...30 V

Maximum power dissipation in w

15 W

Activation threshold

(Uin-1) V and 22 V min

Charging time

25 s

Number of output channels

1

Holding current

  • 20 A
  • 15 A
  • 4 A
  • 5 A
  • 7 A
  • 6 A
  • 3 A
  • 10 A
  • 2 A
  • 30 A
  • 35 A
  • 40 A
  • 8 A
  • 1 A
  • 25 A

Current consumption

  • 0.6 A on load
  • 0.1 mA no load
  • <= 40.6 A

Output protection type

  • against overload, protection technology: > 45 A
  • against short-circuits, protection technology: power-supplied mode, automatic reset
  • against undervoltage, protection technology: tripping if U < 19 V

Output coupling

parallel

Operating altitude

2000 m

Name of test

  • electrostatic discharges conforming to IEC 61000-4-2
  • emission conforming to IEC 61000-6-3
  • induced electromagnetic field conforming to IEC 61000-4-6 level 3
  • radiated electromagnetic field conforming to IEC 61000-4-3 level 3
  • rapid transient conforming to IEC 61000-4-4 level 3
  • surge conforming to IEC 61000-4-5 level 2
  • conducted/radiated emissions conforming to EN 55022 class B, 20 %

Holding time

  • 3 s
  • 4 s
  • 0.4 s
  • 1.5 s
  • 0.3 s
  • 0.2 s
  • 0.5 s
  • 6 s
  • 2 s
  • 0.1 s
  • 0.6 s
  • 1 s

Holding solution

use of buffer modules

Compatibility code

ABL8B

Dielectric strength

  • 500 V between input and ground
  • 500 V between output and ground

Overvoltage category

class II conforming to VDE 0106-1

Mtbf reliability

1119603 H at 24 V DC with UTE C80-810 calculation method

Vibration resistance

  • 2 gn (f= 11.9-150 Hz) conforming to IEC 61131-2
  • 3.5 mm (f= 3-11.9 Hz) conforming to IEC 61131-2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.500 cm

Package 1 width

17.000 cm

Package 1 length

18.200 cm

Package 1 weight

1.401 kg

Unit type of package 2

P06

Number of units in package 2

60

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

97.060 kg

Sustainable packaging

No

Pvc free

Yes

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

30934016-db3c-45f4-8cdf-0d6e2df0aa81

Pvc free

Yes

End of life manual availability

ENVEOLI121208EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Product Brochures

  • Technical Data Catalogues

  • Environmental Disclosure

  • Installation Instruction

  • Operating Manuals

  • Technical Drawing

  • eTechPub

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
ABL8BUF24400_3D-simpl
ZIP

ABL8BUF24400_3D-simpl

VERSION

1.0

DATE

18 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 2 MB
ABL8BUF24400_CAD_DOC
ZIP

ABL8BUF24400_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 414.5 KB
Ensure reliable power is supplied for your installation
ZIP

Ensure reliable power is supplied for your installation

VERSION

1.0

DATE

11 Apr 2023

REVISION

1.0

DOWNLOAD (ZIP) 3.1 MB
Catalog Modicon Power Supply for industrial use - rail mounting
ZIP

Catalog Modicon Power Supply for industrial use - rail mounting

VERSION

5.1

DATE

29 Oct 2024

REVISION

5.1

DOWNLOAD (ZIP) 6.5 MB
ABL8TEQ24... Linear power supply, Product Environmental Profile
ZIP

ABL8TEQ24... Linear power supply, Product Environmental Profile

VERSION

2.0

DATE

17 Oct 2025

REVISION

2.0

DOWNLOAD (ZIP) 411.3 KB

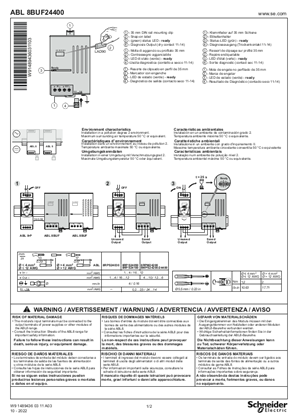

ABL8BUF...Buffer module Phaseo Universal, Instruction Sheet (EN)
ZIP

ABL8BUF...Buffer module Phaseo Universal, Instruction Sheet (EN)

VERSION

3.0

DATE

18 Aug 2023

REVISION

3.0

DOWNLOAD (ZIP) 1 MB
ABL8... Phaseo power outage solution, User guide
ZIP

ABL8... Phaseo power outage solution, User guide

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.8 MB

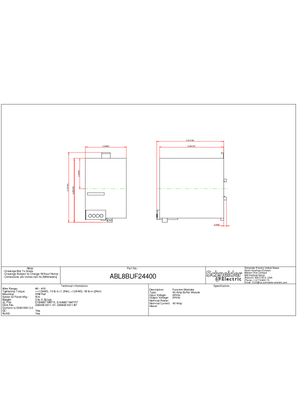

ABL8BUF24400_2D_Drwng_PDF
ZIP

ABL8BUF24400_2D_Drwng_PDF

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 15.8 KB
English
ZIP

English

VERSION

2.0

DATE

23 Oct 2024

REVISION

2.0

DOWNLOAD (ZIP) 255.9 KB
Phaseo, ABL8, Certificate, cULus, Ordinary Location
ZIP

Phaseo, ABL8, Certificate, cULus, Ordinary Location

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 189.5 KB
Phaseo, ABL8BBU, ABL8BUF, ABL8DCC, ABL8RED, Certificate, cULus, Ordinary Location
ZIP

Phaseo, ABL8BBU, ABL8BUF, ABL8DCC, ABL8RED, Certificate, cULus, Ordinary Location

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 400 KB

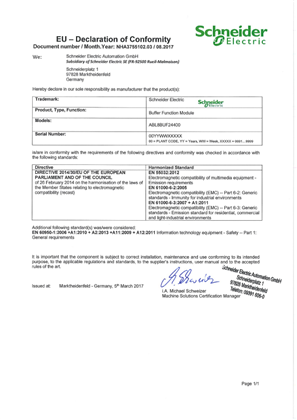

Phaseo DoC ABL8BUF24400
