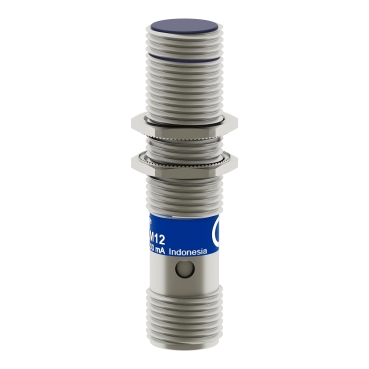

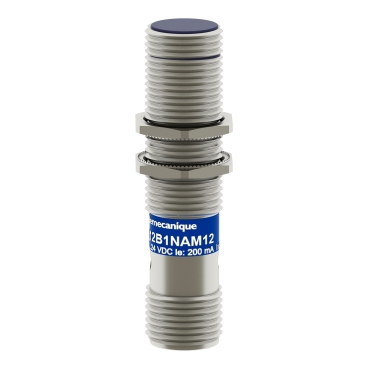

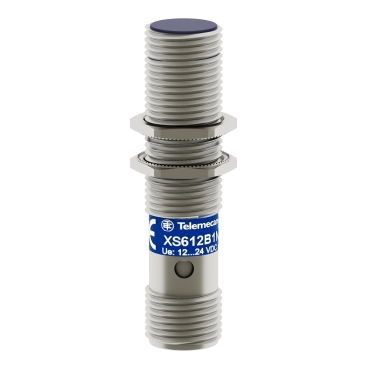

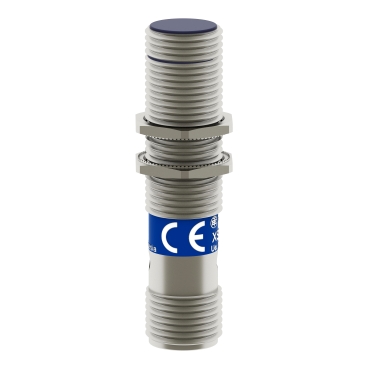

OsiSense XS & XT Inductive Sensor XS6 M12, L62mm, brass, Sn4mm, 12...48 VDC, M12

Home ProductsIndustrialOsiSenseInductive Sensor

OsiSense XS & XT Inductive Sensor XS6 M12, L62mm, brass, Sn4mm, 12...48 VDC, M12

Item Number: XS612B1NAM12

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Telemecanique Inductive proximity sensors XS

Device application

mobile equipment

Warranty

18 months

Physical

Sensor type

inductive proximity sensor

Ip degree of protection

  • IP67 conforming to IEC 60529
  • IP69K conforming to DIN 40050

Marking

CE

Length

62 mm

Net weight

0.02 kg

Product certifications

  • E2
  • UL
  • CSA

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP111006EN

Circularity profile

ENVEOLI1110045

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

metal

Others

Package 1 bare product quantity

1

Important message

We have updated the process to order Telemecanique Sensors productsFor more information, please contact your Telemecanique Sensors representative (https://tesensors.com/global/en/distributors)You can find all product information on the Telemecanique Sensors website: https://tesensors.com

Commercial status history

  • SESA301466
  • Mon Jul 17 19:50:00 EDT 2023
  • From Import Local
  • From 08 to 18

Package 2 bare product quantity

44

Series name

general purpose

Sensor name

XS6

Sensor design

cylindrical M12

Size

62 mm

Body type

fixed

Detector flush mounting acceptance

flush mountable

Type of output signal

discrete

Wiring technique

3-wire

[sn] nominal sensing distance

4 mm

Discrete output function

1 NO

Output circuit type

DC

Discrete output type

NPN

Electrical connection

male connector M12, 4 pins

[us] rated supply voltage

12...48 V DC with reverse polarity protection

Switching capacity in ma

<= 200 mA DC with overload and short-circuit protection

Thread type

M12 x 1

Detection face

frontal

Front material

PPS

Enclosure material

nickel plated brass

Sensing range

> 2.5...4 mm

Operating zone

0...3.2 mm

Differential travel

1...15% of Sr

Status led

output state: 1 LED (yellow)

Supply voltage limits

10...58 V DC

Switching frequency

<= 2500 Hz

Maximum voltage drop

<2 V (closed)

Current consumption

<= 10 mA no-load

Maximum delay first up

10 ms

Maximum delay response

0.2 ms

Maximum delay recovery

0.2 ms

Threaded length

42 mm

Vibration resistance

25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.500 cm

Package 1 width

5.400 cm

Package 1 length

8.400 cm

Package 1 weight

29.000 g

Unit type of package 2

S02

Number of units in package 2

44

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

1.791 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

3bc2f5da-1620-4d53-878c-410a857f3212

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Minimum percentage of recycled plastic content

0
