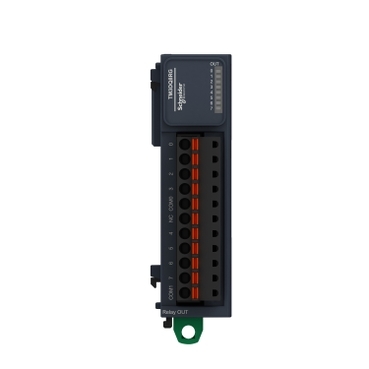

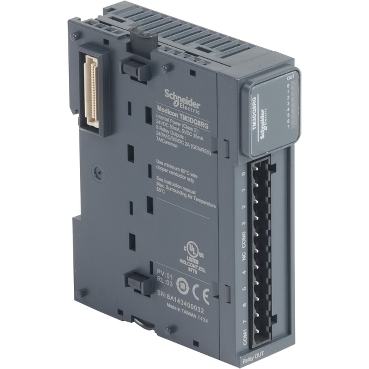

Modicon TM3 Discrete output module 8 relay outputs (spring) 24VDC

Item Number: TM3DQ8RG

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width27.4 mm

Height90 mm

Depth84.6 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3606480611438	-

Specifications

Design

Range of product

Modicon TM3

Product or component type

discrete output module

Physical

Range compatibility

Modicon M241
Modicon M251
Modicon M221
Modicon M262

Mechanical durability

20000000 cycles

Local signalling

1 LED per channel (green) for output status

Marking

Mounting support

top hat type TH35-15 rail conforming to IEC 60715
top hat type TH35-7.5 rail conforming to IEC 60715
plate or panel with fixing kit

Height

90 mm

Depth

84.6 mm

Width

27.4 mm

Net weight

0.11 kg

Standards

IEC 61131-2

Product certifications

CE
cULus
UKCA
RCM
EAC
cULus HazLoc

Ambient air temperature for operation

-10...35 °C vertical installation
-10...55 °C horizontal installation

Ambient air temperature for storage

-25...70 °C

Relative humidity

10...95 %, without condensation (in operation)
10...95 %, without condensation (in storage)

Ip degree of protection

IP20 with protective cover in place

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP1402009EN

Circularity profile

ENVEOLI1402009EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 3 bare product quantity

432

Package 2 bare product quantity

Package 1 bare product quantity

Discrete output type

relay normally open

Discrete output number

Discrete output logic

positive or negative

Discrete output voltage

24 V DC for relay output
240 V AC

Discrete output current

2000 mA for relay output

Discrete i/o number

Current consumption

5 mA at 5 V DC via bus connector (at state off)
0 mA at 24 V DC via bus connector (at state off)
40 mA at 24 V DC via bus connector (at state on)
30 mA at 5 V DC via bus connector (at state on)

Response time

10 ms (turn-on)
5 ms (turn-off)

Minimum load

10 mA at 5 V DC for relay output

Electrical connection

11 x 2.5 mm² removable spring terminal block with pitch 5.08 mm adjustment for outputs

Maximum cable distance between devices

unshielded cable: <30 m for relay output

Insulation

between output and internal logic at 2300 V AC
between outputs at 750 V AC
between output groups at 1500 V AC

Resistance to electrostatic discharge

8 kV in air conforming to IEC 61000-4-2
4 kV on contact conforming to IEC 61000-4-2

Resistance to electromagnetic fields

10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3
3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3
1 V/m 2 GHz...3 GHz conforming to IEC 61000-4-3

Resistance to magnetic fields

30 A/m 50/60 Hz conforming to IEC 61000-4-8

Resistance to fast transients

2 kV for relay output conforming to IEC 61000-4-4

Surge withstand

1 kV I/O common mode conforming to IEC 61000-4-5 DC

Resistance to conducted disturbances

10 V 0.15...80 MHz conforming to IEC 61000-4-6
3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)

Electromagnetic emission

radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30-230 MHz conforming to IEC 55011
radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230-1000 MHz conforming to IEC 55011

Pollution degree

Operating altitude

0...2000 m

Storage altitude

0...3000 m

Vibration resistance
