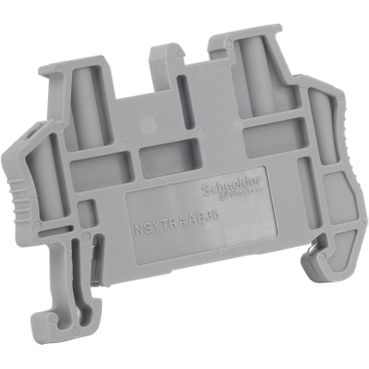

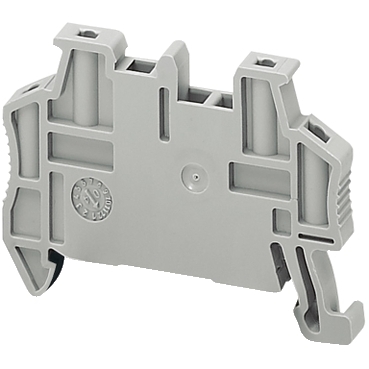

Linergy End Bracket Snap-On For 35m DIN Rails, 5,2mm width, Markable

Home ProductsIndustrialLinergyEnd Bracket

Linergy End Bracket Snap-On For 35m DIN Rails, 5,2mm width, Markable

Item Number: NSYTRAAB35

Terminal block accessory for Linergy TR products. It is a 5,2 mm width end stop clip-on for 35 mm DIN rails. It is markable with NSYTRABF5. strips.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Linergy

Range

Linergy

Product or component type

end stop

Product compatibility

  • TRV screw terminal terminal block
  • TRP push-in terminal block
  • TRR spring terminal terminal block
  • TRH IDC terminal block

Warranty

18 months

Physical

Length

48.5 mm

Mounting mode

clip-on

Quantity per set

set of 50

Net weight

4.9 g

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Package 3 bare product quantity

2150

Package 4 bare product quantity

8600

Average percentage of recycled plastic content

0 %

At least in Europe

Package 2 bare product quantity

50

Package 1 bare product quantity

1

Legacy weee scope

Out

Substance regulation data deliverable

Yes

If one of the deliverables is not relevant please give the reason

Accessory

Life cycle assessment data

No

Weee label

No

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Product name

TR

Device short name

TRA

Accessory / separate part category

mounting accessory

Thickness

5.15 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

0.500 cm

Package 1 width

3.500 cm

Package 1 length

5.000 cm

Package 1 weight

4.000 g

Unit type of package 2

BB1

Number of units in package 2

50

Package 2 height

3.000 cm

Package 2 width

17.000 cm

Package 2 length

24.000 cm

Package 2 weight

245.000 g

Unit type of package 3

S04

Number of units in package 3

2150

Package 3 height

30.000 cm

Package 3 width

40.000 cm

Package 3 length

60.000 cm

Package 3 weight

11.196 kg

Sustainable packaging

No

Pvc free

Yes

Halogen-free status

Halogen free plastic parts product

Silicone-free

Yes

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Halogen-free status

Halogen free plastic parts product

Pvc free

Yes

Silicone-free

Yes

Take-back

No

Warranty (in months)

18
Show all specifications
