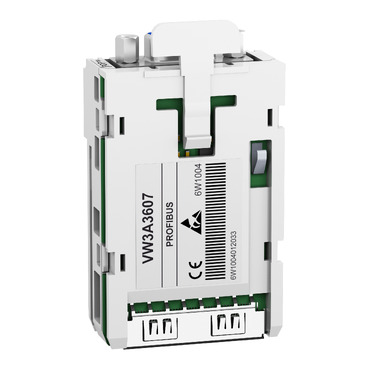

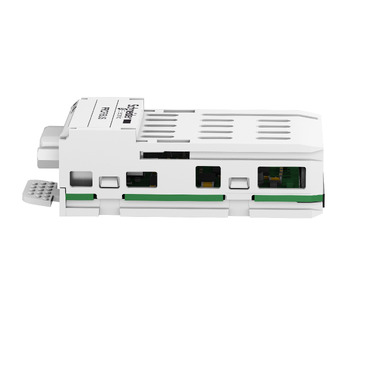

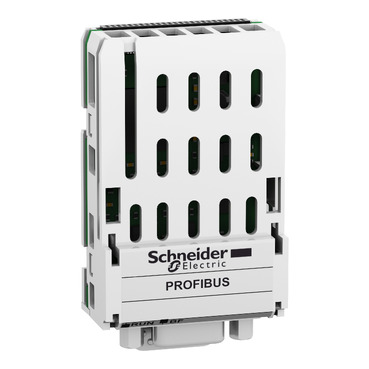

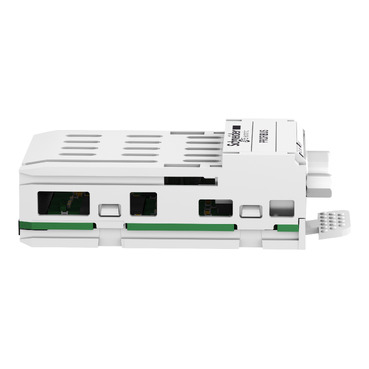

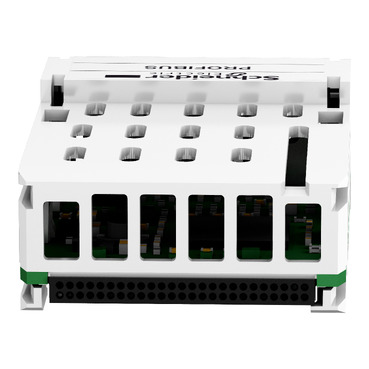

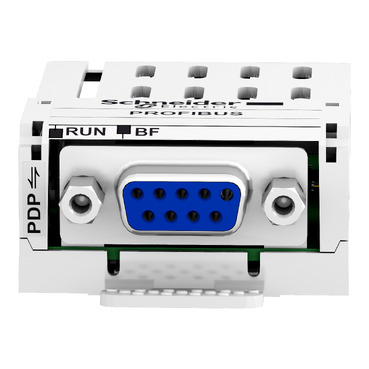

Lexium 32 Communication Module PROFIBUS DP

Item Number: VW3A3607

1 PCE 0

This PROFIBUS DP V1 communication module is an option for variable speed drives of Altivar range. It is equipped with 1 x 9-way female SUB-D connector. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 140g.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3606480177583	-

Specifications

Design

Range of product	Altivar
Product or component type	communication module
Product compatibility	Lexium 32M
Warranty	18 months

Physical

Range compatibility	Altivar 32 Altivar Machine ATV340 except Sercos drives Altivar Easy 610 Lexium 32 Altivar Process ATV900 Altivar Process ATV600 Altivar Machine ATV320 Altivar Process Modular
Communication port protocol	Profibus DP V1
Standards	IEC 61800-7-201 (CiA 402)
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2010009EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Package 2 bare product quantity	100
Package 1 bare product quantity	1
Legacy weee scope	Out
Warranty duration(in months) bmecat	18
Weee label	No
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Average percentage of recycled plastic content	0 %
	At least in Europe
Accessory / separate part category	communication accessories
Electrical connection	1 female connector SUB-D 9
Transmission rate	9.6 kbps...12 Mbps
Addressing	1...126 configurable by graphic terminal/SoMove software configuration settings
Communication service	4 configurable telegrams mapping of the process data from the master parameters management compliant with PROFIdrive V4.1 several DP V1 messaging modes drive profile native ATV32 conforming to IEC 61800-7-201 (CiA 402)
Display type	1 LED for RUN 1 LED for bus fault (BF)
Alarm function	diagnostic data with VSD status host drive handled from two masters (MS0 and MS1) standard identification and maintenance requests
Bus profile	PROFIdrive CiA 402
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.700 cm
Package 1 width	6.100 cm
Package 1 length	9.000 cm
Package 1 weight	65.000 g
Unit type of package 2	S03
Number of units in package 2	100
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	6.643 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	104 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.8636686985
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0078704669
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0027649193
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	102.28
Carbon footprint of the use phase [b2, b3, b4, b6]	102 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.0240874205
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	104.1783915051
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Scip number	f26c5dc1-8fcc-4cb7-9720-cb35026be240
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Technical Data Catalogues
Installation Instruction
Environmental Disclosure
Operating Manuals
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)
Software - Data Library

Important: Some software files may need a mySchneider or Club login to download.

PDF

Altivar Process variable speed drives

VERSION

1.0

DATE

17 Nov 2015

REVISION

1.0

Colour ()

Lexium 32 Communication Module PROFIBUS DP

Item Number: VW3A3607

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

Product Brochures

Technical Data Catalogues

Installation Instruction

Environmental Disclosure

Operating Manuals

Certificates (MSDS)

Declaration of Conformity

Declaration of Conformity (Sustainability)

Software - Data Library

Altivar Process variable speed drives

Discover the catalog for Altivar Machine ATV340

Discover the catalog for Altivar Machine ATV320 variable speed drive

Easy Series Automation and Control Essentials Catalog-2025

Discover catalog for Altivar Process ATV600 variable speed drives

Discover the catalog of Easy Altivar 610 variable speed drives range.

Discover catalog for Altivar Soft Starter ATS480

Discover catalog for Altivar Soft Starter ATS490

Discover catalog for Altivar Process ATV900 variable speed drives

Catalog Lexium 32 servo drives BMH and BSH servo motors - October 2021

Discover catalog for Altivar 32 Variable Speed Drives

Instruction sheet - Option modules

Altivar 31, 312, and 32 Motor Cable Installation Guidelines for Baggage Conveyance Applications

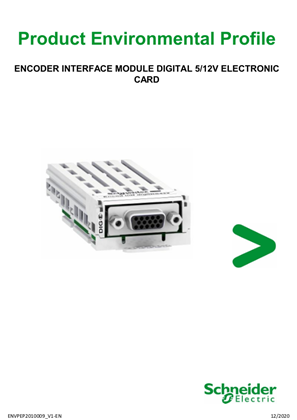

ENCODER INTERFACE MODULE DIGITAL 5/12V ELECTRONIC CARD, Product Environmental Profile

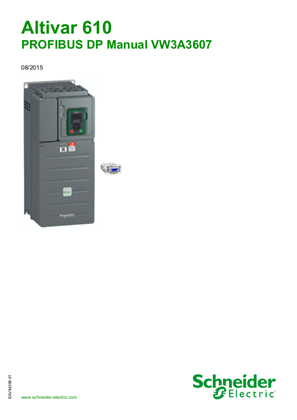

ATV610 PROFIBUS DP Manual - VW3A3607

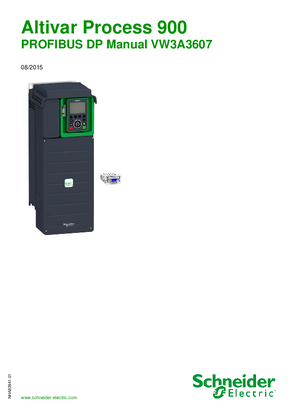

ATV900 PROFIBUS DP Manual (VW3A3607)

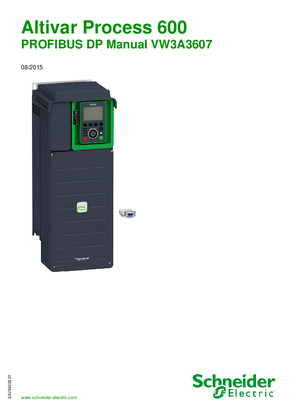

ATV600 PROFIBUS DP Manual (VW3A3607)

ATS490 PROFIBUS DP Manual (VW3A3607)

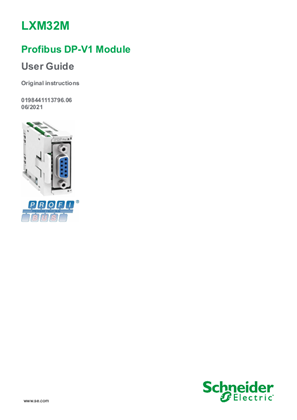

VW3A3607 - LXM32M Profibus DP-V1 Module Fieldbus, User Manual

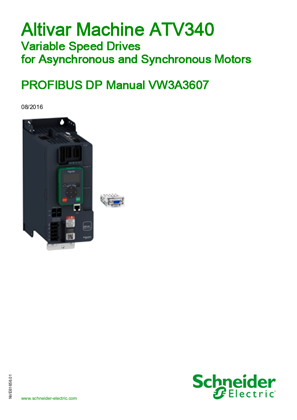

ATV340 PROFIBUS DP Manual : VW3A3607

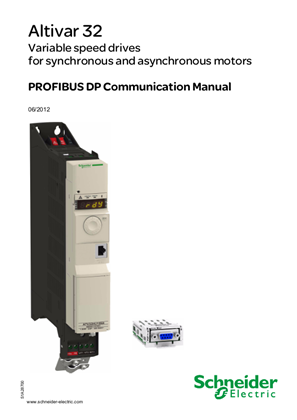

ATV32 PROFIBUS DP manual: VW3A3607

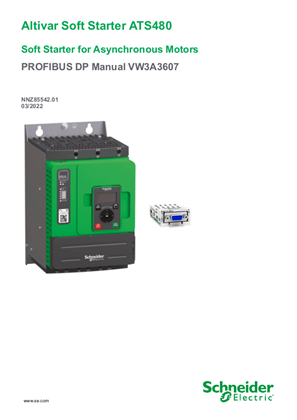

ATS480 PROFIBUS DP Manual - VW3A3607
