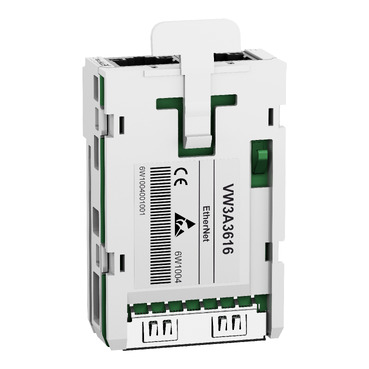

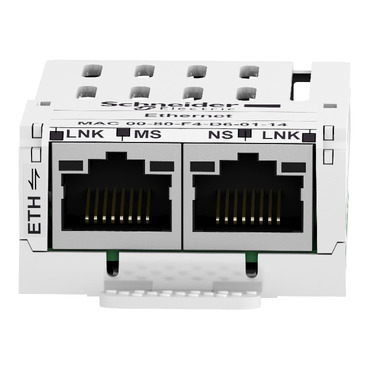

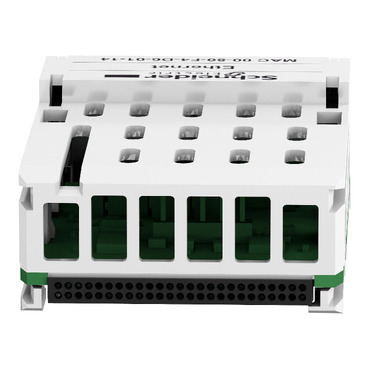

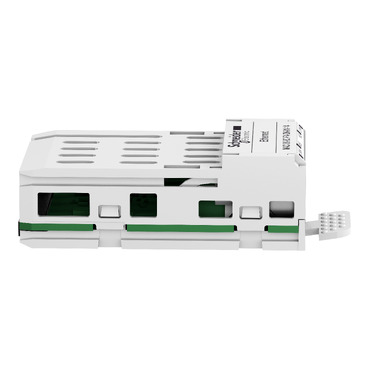

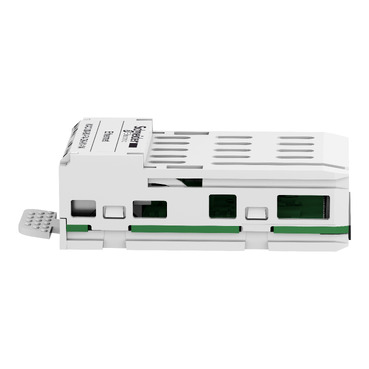

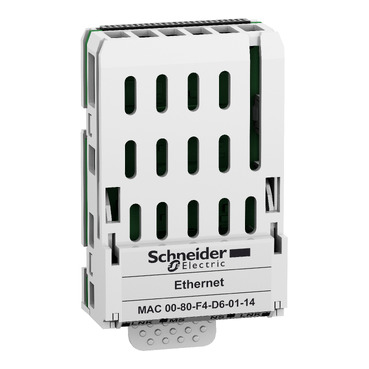

Lexium 32 Communication module Ethernet TCP/IP

Item Number: VW3A3616

1 PCE 0

This Altivar Ethernet TCP/IP communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Machine ATV320, Lexium 32 and Altivar 32. Removable module allows last minute decisions on drive communication protocol and thus facilitates installation project management.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480177590	-

Specifications

Design

Range of product	Altivar
Product or component type	communication module
Product compatibility	Lexium 32M
Warranty	18 months

Physical

Range compatibility	Altivar Machine ATV320 Altivar 32 Lexium 32
Communication port protocol	Modbus TCP EtherNet/IP
Net weight	0.3 kg
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2010006EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	100
Average percentage of recycled plastic content	0 %
	At least in Europe
Legacy weee scope	Out
Substance regulation data deliverable	Yes
If one of the deliverables is not relevant please give the reason	Accessory
Life cycle assessment data	No
Warranty duration(in months) bmecat	18
Weee label	No
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Accessory / separate part category	communication accessories
Electrical connection	1 connector RJ45, EtherNet/IP 1 connector RJ45, Modbus TCP
Transmission rate	10/100 Mbps
Addressing	IP addressing manual, BOOTP or DHCP
Exchange mode	half duplex and full duplex
Communication service	up to 8 connections (includes connections of Modbus TCP/Ethernet IP) for Ethernet IP/Modbus TCP FDR Agent for Ethernet IP/Modbus TCP read holding registers (03), 63 words max for Modbus TCP read input registers (04), 63 words max for Modbus TCP write single register (06) for Modbus TCP write multiple registers (16), 63 words max for Modbus TCP read/write multiple registers (23) for Modbus TCP read device identification (43) for Modbus TCP diagnostics (08) for Modbus TCP I/O scanner : read/write, 6 words maximum for Modbus TCP communication monitoring for Modbus TCP SNMP agent for Ethernet IP Master/Slave hierarchy ODVA AC drive profile and CiA 402 profile for Ethernet IP fixed communication monitoring adjusted by Ethernet IP scanner adaptor (Master) for Ethernet IP
Display type	1 LED for MS (Module Status) 1 LED for NS (Network Status) 1 LED for Ethernet port activity 1 LED for Modbus TCP port activity
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.200 cm
Package 1 width	6.100 cm
Package 1 length	9.000 cm
Package 1 weight	62.000 g
Unit type of package 2	S03
Number of units in package 2	100
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	6.590 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.6977560453
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0077414428
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0021703128
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.00059042
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.0271175564
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.7353757774
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	eabe1c38-4fea-4053-a04b-f026433c8b42
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Technical Data Catalogues
Installation Instruction
Environmental Disclosure
Operating Manuals
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)
Software - Data Library

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Lexium 32 Communication module Ethernet TCP/IP

Item Number: VW3A3616

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

Technical Data Catalogues

Installation Instruction

Environmental Disclosure

Operating Manuals

Certificates (MSDS)

Declaration of Conformity

Declaration of Conformity (Sustainability)

Software - Data Library

Discover the catalog for Altivar Machine ATV320 variable speed drive

Catalog Lexium 32 servo drives BMH and BSH servo motors - October 2021

Discover the catalog for Altivar Solar Variable Speed Drives

Discover catalog for Altivar 32 Variable Speed Drives

Instruction sheet - Option modules

Altivar 31, 312, and 32 Motor Cable Installation Guidelines for Baggage Conveyance Applications

Ethernet/IP, ModbusTCP communication module - 2RJ45, Product Environmental Profile

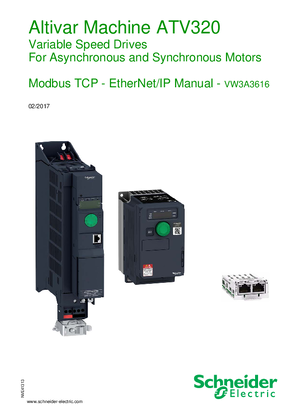

ATV32 Modbus TCP - EtherNet/IP manual: VW3A3616

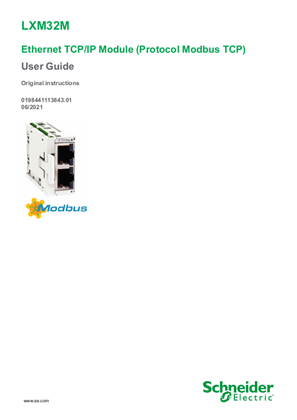

VW3A3616 - LXM32M Ethernet TCP/IP Module (Protocol Modbus-TCP), User Guide
