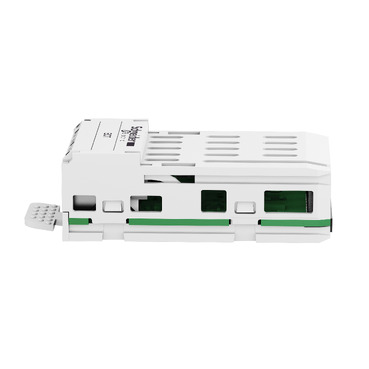

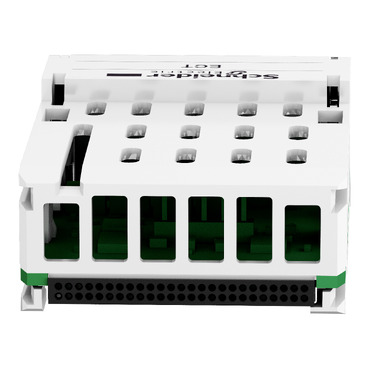

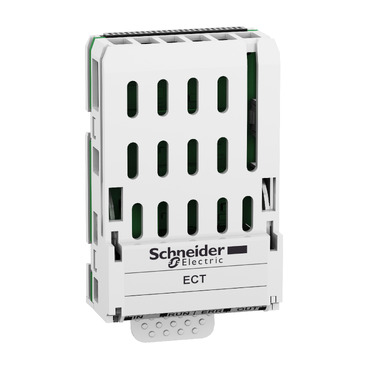

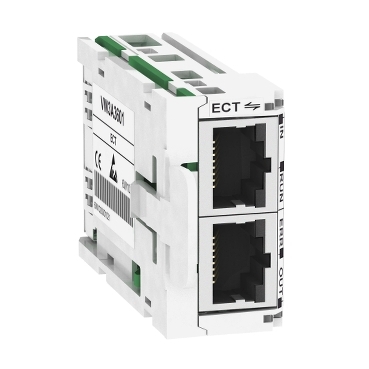

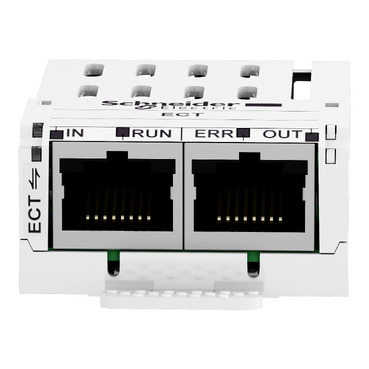

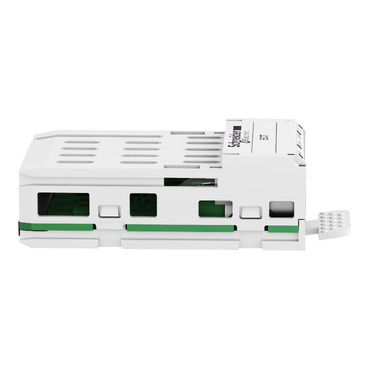

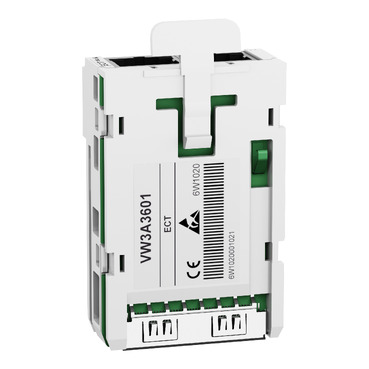

Lexium 32 Communication Module Ethercat 2 x RJ45

Item Number: VW3A3601

1 PCE 0

This EtherCAT communication module is an option for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 0.29kg.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480326714	-

Specifications

Design

Range of product	Altivar
Product or component type	communication module
Product compatibility	Lexium 32M
Warranty	18 months

Physical

Range compatibility	Altivar Process Modular Altivar Machine ATV340 except Sercos drives Altivar Machine ATV320 Altivar Process ATV900 Altivar 32 Lexium 32
Communication port protocol	EtherCAT
Standards	IEC 61800-7-201 (CiA 402)
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2010006EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	100
Average percentage of recycled plastic content	0 %
Legacy weee scope	Out
Warranty duration(in months) bmecat	18
Weee label	No
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Substance regulation data deliverable	Yes
If one of the deliverables is not relevant please give the reason	Accessory
Life cycle assessment data	No
	At least in Europe
Accessory / separate part category	communication accessories
Electrical connection	2 connectors RJ45
Transmission rate	100 Mbps
Maximum cable distance between devices	100 m for 100 Mbps
Addressing	logical addressing node addressing position addressing
Communication service	PDO and SDO support drive profile CiA 402 velocity mode conforming to IEC 61800-7-201 (CiA 402) CANopen over EtherCAT (CoE)
Display type	1 LED for input status 1 LED for RUN 1 LED for error 1 LED for output status
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.300 cm
Package 1 width	4.500 cm
Package 1 length	9.000 cm
Package 1 weight	63.000 g
Unit type of package 2	S03
Number of units in package 2	100
Package 2 height	30.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	6.848 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.6977560453
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0077414428
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0021703128
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.00059042
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.0271175564
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.7353757774
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Technical Data Catalogues
Installation Instruction
Environmental Disclosure
Operating Manuals
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)
Software - Data Library

Important: Some software files may need a mySchneider or Club login to download.

PDF

Altivar Process variable speed drives

VERSION

1.0

DATE

17 Nov 2015

REVISION

1.0

Colour ()

Lexium 32 Communication Module Ethercat 2 x RJ45

Item Number: VW3A3601

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

Product Brochures

Technical Data Catalogues

Installation Instruction

Environmental Disclosure

Operating Manuals

Certificates (MSDS)

Declaration of Conformity

Declaration of Conformity (Sustainability)

Software - Data Library

Altivar Process variable speed drives

Discover the catalog for Altivar Machine ATV340

Discover the catalog for Altivar Machine ATV320 variable speed drive

Discover catalog for Altivar Process ATV900 variable speed drives

Catalog Lexium 32 servo drives BMH and BSH servo motors - October 2021

Discover catalog for Altivar 32 Variable Speed Drives

Instruction sheet - Option modules

Altivar 31, 312, and 32 Motor Cable Installation Guidelines for Baggage Conveyance Applications

Ethernet/IP, ModbusTCP communication module - 2RJ45, Product Environmental Profile

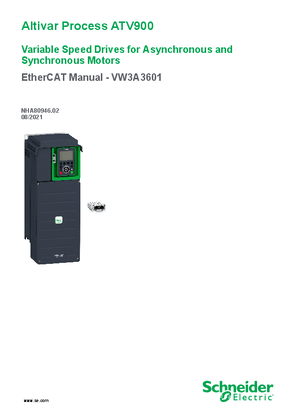

ATV900 EtherCAT Manual (VW3A3601)

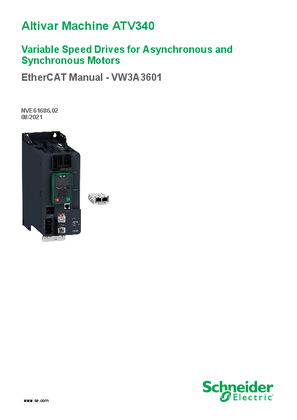

ATV340 EtherCAT Manual : VW3A3601

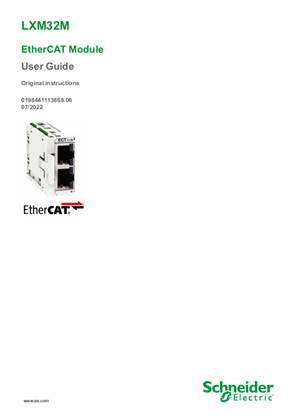

VW3A3601 - LXM32M EtherCAT module, User Guide

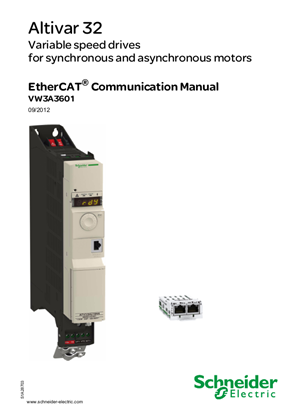

ATV32 EtherCAT Manual: VW3A3601
