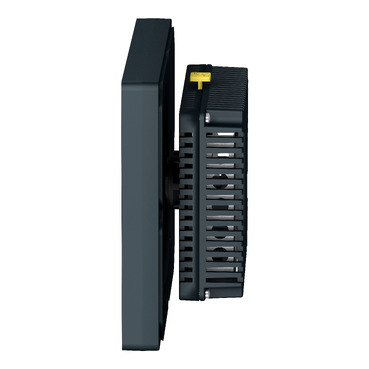

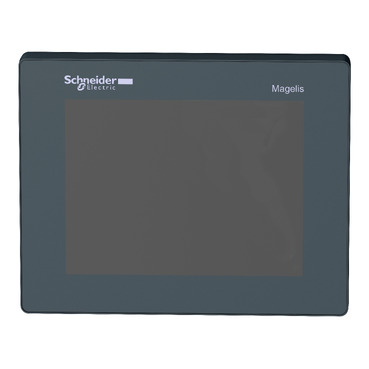

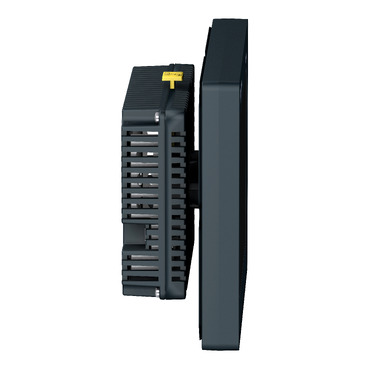

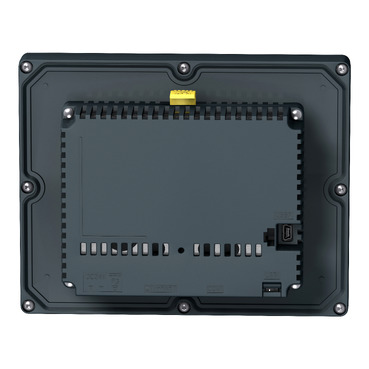

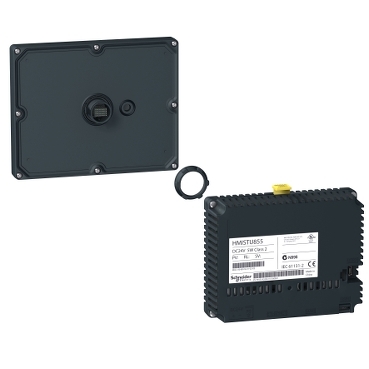

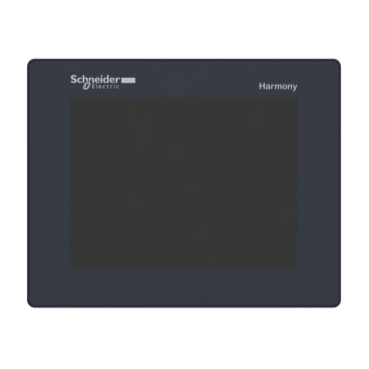

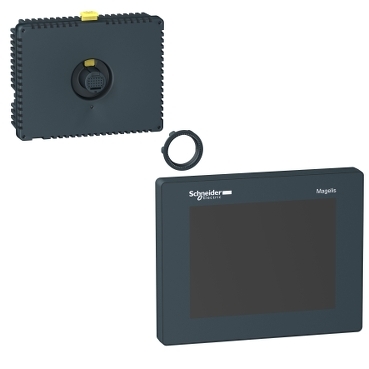

Harmony STO & STU Touch panel screen 5''7 Color

Item Number: HMISTU855

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width163 mm

Height129.15 mm

Depth56.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3595864114323	-

Specifications

Design

Range of product

Harmony STO & STU

Product or component type

touch panel screen

Warranty

18 months

Physical

Supply

external source

Inrush current

30 A

Power consumption in w

6.8 W

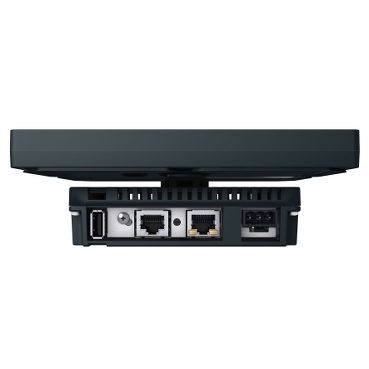

Integrated connection type

1 USB 2.0 type mini B
1 USB 2.0 type A
COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s)
power supply - removable screw terminal block
1 Ethernet - RJ45

Fixing mode

Ø 22 mm hole

Marking

with Schneider logo
CE

Height

129.15 mm

Width

163 mm

Depth

56.5 mm

Standards

UL 1604
FCC Class A
IEC 61000-6-2
IEC 61131-2
UL 508

Product certifications

UL class 1 Div2 T4A ou T5
C-Tick
cULus
Marine
UKCA

Ambient air temperature for operation

0...50 °C

Ambient air temperature for storage

-20...60 °C

Relative humidity

0...85 % without condensation

Ip degree of protection

IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP2101003EN

Circularity profile

ENVEOLI2101003EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

Package 2 bare product quantity

Package 3 bare product quantity

Software designation

Vijeo Designer

Operating system

Harmony

Processor name

CPU ARM9

Display size

5.7 inch

Display type

QVGA TFT colour touchscreen

Display colour

65536 colours

Display resolution

320 x 240 pixels QVGA

Touch panel

analogue

Backlight lifespan

50000 hours

Brightness

16 levels

Character font

Taiwanese (traditional Chinese)
Japanese (ANK, Kanji)
Chinese (simplified Chinese)
ASCII
Korean

[us] rated supply voltage

24 V DC

Supply voltage limits

20.4...28.8 V

Number of pages

limited by internal memory capacity

Processor frequency

333 MHz

Memory description

application memory 16 MB
back up of data 64 kB

Realtime clock

access to the PLC real-time clock

Downloadable protocols

Uni-TE
Modbus TCP/IP
third party protocols
Modbus

Enclosure material

PC/PBT and PAA

Immunity to microbreaks

7 ms

Operating altitude

<= 2000 m

Nema degree of protection

NEMA 4X front panel (indoor use)

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

+/- 3.5 mm (f = 5-9 Hz) conforming to IEC 60068-2-6
1 gn (f = 9-150 Hz) conforming to IEC 60068-2-6

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

7.000 cm

Package 1 width

18.000 cm

Package 1 length

27.000 cm

Package 1 weight

867.700 g

Unit type of package 2

S03

Number of units in package 2

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

7.315 kg

Unit type of package 3

P06

Number of units in package 3

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

74.876 kg

Scip number

7a6de532-1e9f-4049-9a61-3f413d116265

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

VERSION

1.0

DATE

22 Nov 2021

REVISION

1.0

DOWNLOAD (ZIP) 168.6 KB

ZIP

English

VERSION

3.1

DATE

23 Oct 2024

REVISION

3.1

DOWNLOAD (ZIP) 193.1 KB

ZIP

Harmony, HMISTO, Declaration of Conformity, UKCA, Schneider Electric

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 248.6 KB

ZIP

Harmony, HMISCU, HMISTU, Declaration of Conformity, EU CE, Schneider Electric

VERSION

1.0

DATE

06 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 2.3 MB
