Harmony Solid State Relays Solid state modular relay 6A, random switching, input 90…140 V AC, output 24...280 V AC

Home ProductsIndustrialHarmonySolid state modular relay

Harmony Solid State Relays Solid state modular relay 6A, random switching, input 90…140 V AC, output 24...280 V AC

Item Number: SSM1A16F7R

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width11 mm

Height icon

Height90.3 mm

Depth icon

Depth83.7 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Relay

Product or component type

solid state relay

Physical

Number of channels

1

Mounting support

symmetrical DIN rail

[in] rated current

6 A

Connections - terminals

  • screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for input
  • screw terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output

Insulation resistance

1000 MOhm at 500 V DC

Local signalling

LED (green) for input status

Width

11 mm

Height

90.3 mm

Depth

83.7 mm

Net weight

0.05 kg

Device presentation

complete product

Standards

  • IEC 61000
  • IEC 62314
  • IEC 60950-1

Product certifications

  • UL
  • CSA

Marking

CE

Ip degree of protection

IP20

Ambient air temperature for operation

-30...80 °C

Ambient air temperature for storage

-30...100 °C

Reach free of svhc

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1307069EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

At least in Europe

Weee label

No

Device short name

SSM

Network number of phases

1 phase

Output voltage

24...280 V AC

[uc] control circuit voltage

90...140 V AC

Contacts type and composition

1 NO

Tightening torque

  • 0.5...0.8 N.m for input
  • 0.5...0.8 N.m for output

Capacitance unbalance

10 pF for input/output

Minimum switching voltage

90 V AC turn-on

Maximum switching voltage

10 V AC turn-off

Input current limits

3...5 mA

Solid state output type

  • SCR output
  • random voltage switching

Load current

0.15...6 A

Absolute maximum voltage

600 V

Surge current

  • 285 A for 16.6 ms
  • 300 A for 20 ms

Maximum voltage drop

<1.3 V on-state

Motor power hp

0.16 hp 40 °C 240 V AC

Maximum i²t for fusing

  • 410 A².s for 10 ms at 50 Hz
  • 375 A².s for 8.33 ms at 60 Hz

Maximum leakage current

0.1 mA off-state

Dv/dt

500 V/µs off-state at maximum voltage

Response time

  • 30 ms (turn-off)
  • 20 ms (turn-on)

Cos phi

0.5...0.5 (with maximum load)

Overvoltage category

III

Flame retardance

V0 conforming to UL 94

Dielectric strength

  • 4 kV AC for input/output
  • 4 kV AC for input or output to case

Pollution degree

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1 cm

Package 1 width

9 cm

Package 1 length

9.5 cm

Package 1 weight

76 g

Sustainable packaging

No

End of life manual availability

ENVEOLI1307069EN

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Environmental Disclosure

  • End of Life Manual

  • Technical illustration

  • Technical Drawing

  • eTechPub

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
SSM1A16BD_3D_2D_CAD
ZIP

SSM1A16BD_3D_2D_CAD

VERSION

1.0

DATE

27 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.6 MB
SSM1A16F7R_CAD
ZIP

SSM1A16F7R_CAD

VERSION

1.0

DATE

06 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 467.1 KB

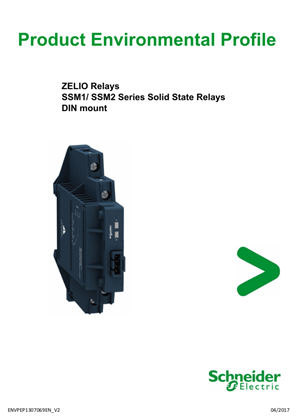

ZELIO Relays - SSM1/ SSM2 Series Solid State Relays, DIN mount, Product Environmental Profile
ZIP

ZELIO Relays - SSM1/ SSM2 Series Solid State Relays, DIN mount, Product Environmental Profile

VERSION

2.0

DATE

09 Jun 2023

REVISION

2.0

DOWNLOAD (ZIP) 4.4 MB

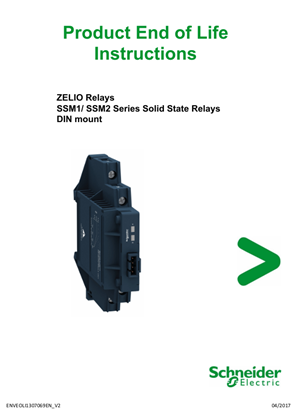

SSM1..., SSM2... ZELIO Solid State Relay - DIN mount, Product End-of-Life Instructions
ZIP

SSM1..., SSM2... ZELIO Solid State Relay - DIN mount, Product End-of-Life Instructions

VERSION

2.0

DATE

05 Oct 2022

REVISION

2.0

DOWNLOAD (ZIP) 4.4 MB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

02 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 374.1 KB

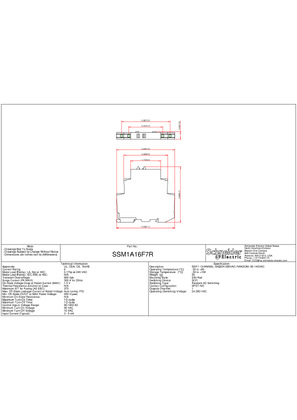

SSM1A16F7R_2D_Drwng_PDF
ZIP

SSM1A16F7R_2D_Drwng_PDF

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 15.1 KB
English
ZIP

English

VERSION

8.0

DATE

26 Mar 2025

REVISION

8.0

DOWNLOAD (ZIP) 2.3 MB

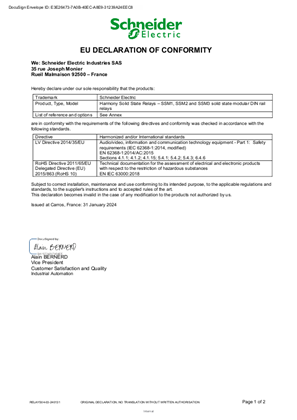

Manufacturer EU DOC SSM1 SSM2 SSM3
ZIP

Manufacturer EU DOC SSM1 SSM2 SSM3

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 296.5 KB

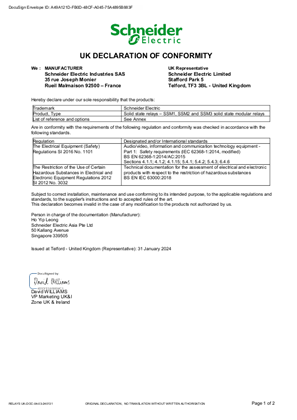

Manufacturer UK DOC SSM1 SSM2 SSM3
ZIP

Manufacturer UK DOC SSM1 SSM2 SSM3

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 331.4 KB
UL Listed SSD1
ZIP

UL Listed SSD1

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 197.5 KB

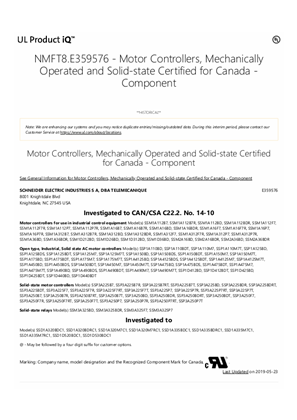

CSA Certificate SSP3 SSM1 SSM2
