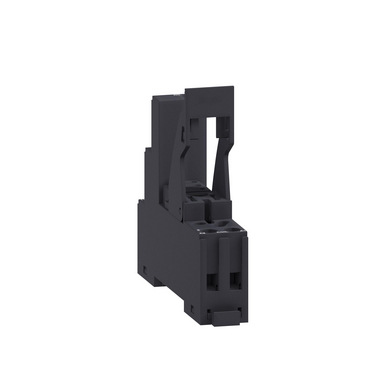

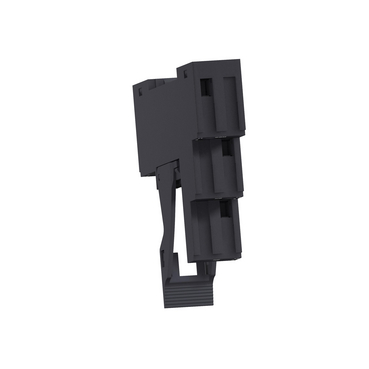

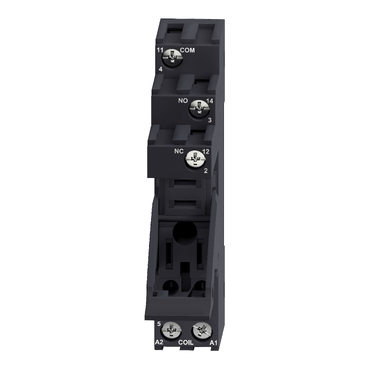

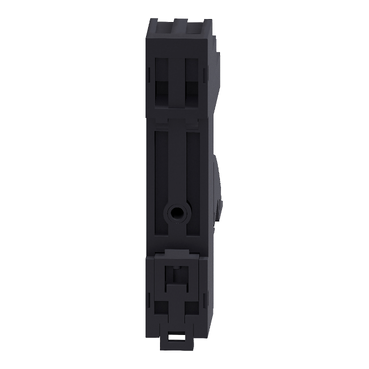

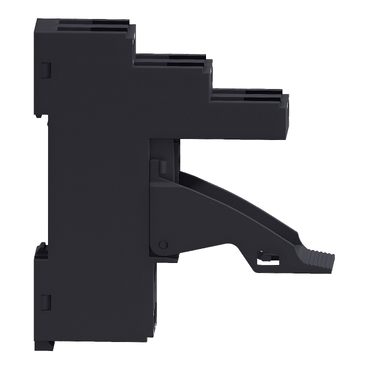

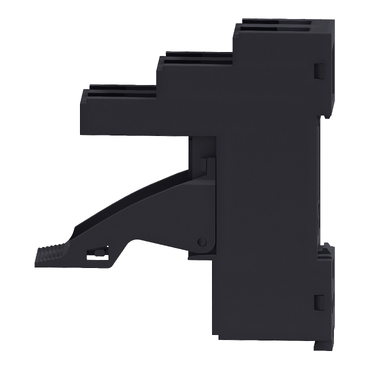

Harmony Electromechanical Relays Socket with clamp for RXG1 relays, 10A, screw connectors, separate contact

Home ProductsIndustrialHarmonySocket with clamp

Harmony Electromechanical Relays Socket with clamp for RXG1 relays, 10A, screw connectors, separate contact

Item Number: RGZE1S35M

"This Harmony RGZ timing relay socket has separate contact terminals." "It enables quick and easy plug-in installation of relays without the need for tools." "It is compatible with all 1 C/O SPDT RXG relays." "Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime."

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Electromechanical Relays

Product or component type

socket

Product compatibility

plug-in relay RXG with 1 C/O contact

Physical

[in] rated current

10 A

[ue] rated operational voltage

  • 250 V conforming to IEC
  • 300 V conforming to UL

Connections - terminals

  • screw terminals, 1 x 0.34...2 x 1.5 mm² (AWG 22...AWG 14) flexible with cable end
  • screw terminals, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end
  • screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end
  • screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end

Fixing mode

  • clip-on (35 mm symmetrical DIN rail)
  • screw (panel)

Wire stripping length

6...7 mm

Connections - terminals

screw connectors

Standards

  • UL 508
  • CSA C22.2 No 14
  • IEC 61984

Product certifications

  • CE
  • EAC
  • UL
  • CSA
  • DNV-GL

Ambient air temperature for storage

-40...85 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP20

Relative humidity

10...85 %

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2502016_V1

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

X

Eu rohs directive

Compliant

China rohs regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 3 bare product quantity

180

Warranty duration(in months) bmecat

18

At least in Europe

Average percentage of recycled plastic content

0 %

Weee label

No

Contacts type and composition

1 C/O

[ui] rated insulation voltage

250 V

[uimp] rated impulse withstand voltage

  • 6 kV between coil and contact with reinforced insulation
  • 4 kV between terminals and DIN rail with basic insulation

Dielectric strength

  • 5 kV between coil and contact with reinforced insulation
  • 3 kV between terminals and DIN rail with basic insulation

Contact terminal arrangement

separate

Screw type

M3

Overvoltage category

III

Pollution degree

3

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.600 cm

Package 1 width

7.000 cm

Package 1 length

7.900 cm

Package 1 weight

36.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

8.600 cm

Package 2 width

8.900 cm

Package 2 length

16.600 cm

Package 2 weight

382.000 g

Unit type of package 3

S03

Number of units in package 3

180

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

7.350 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.4 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.32296743956459056

Carbon footprint of the manufacturing phase [a1 to a3]

0.3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.009584501303757133

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.00028252621852502545

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.11415302636530504

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.4469874934521778

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

China rohs label

1

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
Show all specifications

Documents & downloads

Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • Technical illustration

  • Certificates (MSDS)

  • eTechPub

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
1C/O Separate terminal socket with clamp - 3D CAD
ZIP

1C/O Separate terminal socket with clamp - 3D CAD

VERSION

1.0

DATE

12 May 2022

REVISION

1.0

DOWNLOAD (ZIP) 947.5 KB
Harmony Electromechanical Relays Catalog - EN
ZIP

Harmony Electromechanical Relays Catalog - EN

VERSION

1.0

DATE

19 Jan 2026

REVISION

1.0

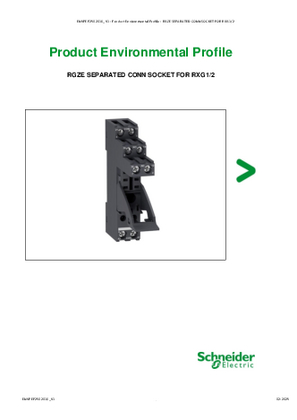

RGZE SEPARATED CONN SOCKET FOR RXG1/2
ZIP

RGZE SEPARATED CONN SOCKET FOR RXG1/2

VERSION

1.0

DATE

30 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 242.6 KB
Technical Illustration - Dimensions
ZIP

Technical Illustration - Dimensions

VERSION

1.0

DATE

04 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 525.3 KB
CSA Certificate RXZE2S114S
ZIP

CSA Certificate RXZE2S114S

VERSION

1.0

DATE

15 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 210.2 KB
CSA Certificate RXG16 RXG26 RXG18 RXG28 RGZE1S35M RGZE1S48M
ZIP

CSA Certificate RXG16 RXG26 RXG18 RXG28 RGZE1S35M RGZE1S48M

VERSION

1.0

DATE

16 Sep 2025

REVISION

1.0

DOWNLOAD (ZIP) 119.7 KB

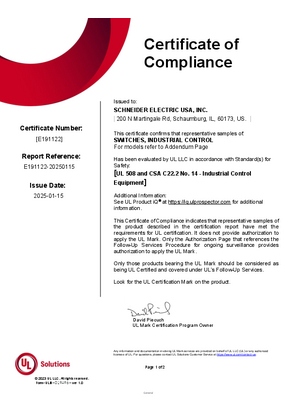

UL Listed and Recognized RXG16 RXG26 RXG18 RXG28 RGZE1S35M RGZE1S48M
