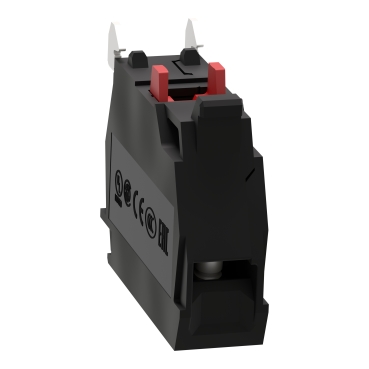

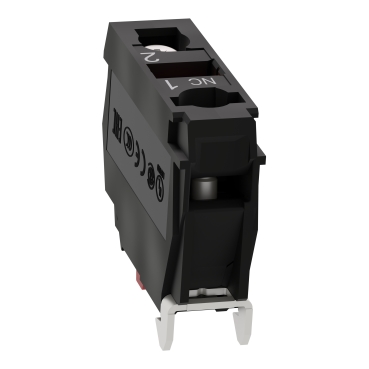

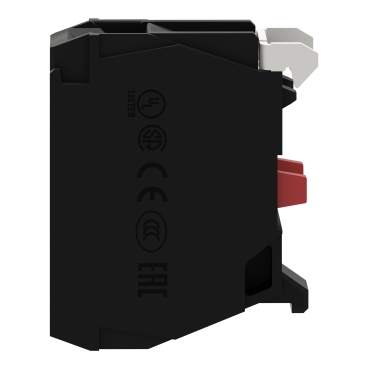

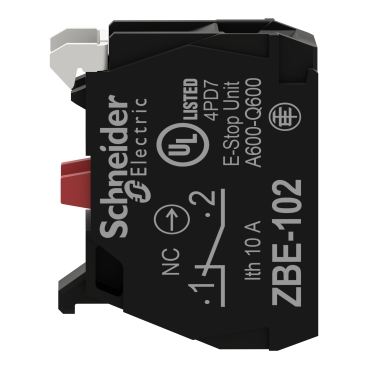

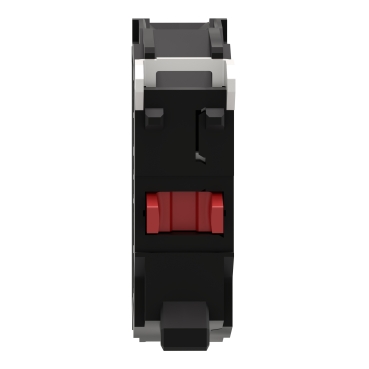

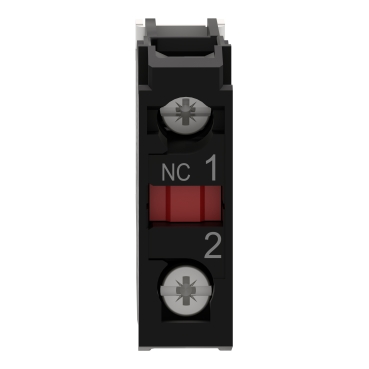

Harmony XB4 Single contact block silver alloy, screw clamp terminal, 1NC

Item Number: ZBE102

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110089486	-
5	CAR	13389110089483	-
25	PAC	53389110089481	-

Specifications

Design

Range of product	Harmony XB4 Harmony XB5
Product or component type	contact block
Warranty	18 months

Physical

Sale per indivisible quantity	5
Ip degree of protection	IP20 conforming to IEC 60529
Connections - terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Net weight	0.011 kg
Mechanical durability	10000000 cycles
[ie] rated operational current	3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability	1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Device presentation	basic element
Ambient air temperature for storage	-40...70 °C
Ambient air temperature for operation	-40...70 °C
Standards	IEC 60947-5-1 CSA C22.2 No 14 JIS C8201-5-1 IEC 60947-1 UL 508 IEC 60947-5-4 JIS C8201-1
Product certifications	CSA GOST BV DNV LROS (Lloyds register of shipping) CCC UL
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2304014EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Contacts material	silver alloy (Ag/Ni)

Others

Package 3 bare product quantity	800
Package 4 bare product quantity	6400
Package 2 bare product quantity	5
Package 1 bare product quantity	1
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Average percentage of recycled plastic content	23 %
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	ZBE
Contact operation	slow-break
Contact block type	single
Contacts usage	standard contacts
Contacts type and composition	1 NC
Positive opening	with conforming to IEC 60947-5-1 appendix K
Operating travel	1.5 mm (NC changing electrical state) 4.3 mm (total travel)
Operating force	2 N NC changing electrical state
Tightening torque	0.8...1.2 N.m conforming to IEC 60947...1
Shape of screw head	cross compatible with pozidriv No 1 screwdriver slotted compatible with flat Ø 4 mm screwdriver slotted compatible with flat Ø 5.5 mm screwdriver
Short-circuit protection	10 A cartridge fuse type gG conforming to IEC 60947-5-1
[ith] conventional free air thermal current	10 A conforming to IEC 60947-5-1
[ui] rated insulation voltage	600 V (pollution degree 3) conforming to IEC 60947-1
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Mounting of block	front mounting
Electrical composition code	C1 (quantity <= 9 ) C2 (quantity <= 7 ) C3 (quantity <= 6 ) C4 (quantity <= 4 ) C5 (quantity <= 5 ) C6 (quantity <= 3 ) C7 (quantity <= 4 ) C8 (quantity <= 2 ) C9 (quantity <= 3 ) C12 (quantity <= 6 ) M1 (quantity <= 6 ) M2 (quantity <= 4 ) M3 (quantity <= 4 ) M5 (quantity <= 2 ) M6 (quantity <= 2 ) M7 (quantity <= 6 ) M8 (quantity <= 4 ) M9 (quantity <= 2 ) SF1 (quantity <= 3 ) SF2 (quantity <= 2 ) MF1 (quantity <= 2 ) MF2 (quantity <= 2 ) C10 (quantity <= 2 ) M4 (quantity <= 2 ) C13 (quantity <= 1 )
Compatibility code	ZBE
Protective treatment	TH
Vibration resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.500 cm
Package 1 width	3.400 cm
Package 1 length	5.400 cm
Package 1 weight	9.000 g
Unit type of package 2	BB1
Number of units in package 2	5
Package 2 height	5.600 cm
Package 2 width	4.300 cm
Package 2 length	5.400 cm
Package 2 weight	52.000 g
Unit type of package 3	S03
Number of units in package 3	800
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	8.757 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.05580600333518621
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0011769038354641468
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0063390216787103945
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.016344580322401332
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.0796665091717621
Average percentage of recycled plastic content	23 %
Average percentage of recycled metal content	13 %
Average percentage of recycled metal content	13 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Installation Instruction
Environmental Disclosure
Technical illustration
Technical Drawing
Certificates (MSDS)
Declaration of Conformity
eTechPub
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

Missing CAD 2024 project C&S

VERSION

1.0

DATE

27 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 2.2 MB

ZIP

ZBE102_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 163.6 KB

ZIP

FuPacT Fusegear range from 32 to 1250A Catalog

VERSION

2.5

DATE

26 Feb 2026

REVISION

2.5

DOWNLOAD (ZIP) 68 MB

ZIP

Discover the Harmony XB4 metal Control and signaling units catalog

VERSION

18.0

DATE

28 Jan 2026

REVISION

18.0

DOWNLOAD (ZIP) 25.2 MB

ZIP

Discover the Harmony XB5 plastic Control and signaling units catalog

VERSION

19.0

DATE

28 Jan 2026

REVISION

19.0

DOWNLOAD (ZIP) 24.8 MB

ZIP

Discover the Harmony XALD and XALK plastic control stations catalog

VERSION

6.0

DATE

23 Jan 2026

REVISION

6.0

DOWNLOAD (ZIP) 8.5 MB

ZIP

Discover the Harmony XALF Lift inspection stations catalog

VERSION

7.0

DATE

04 Dec 2025

REVISION

7.0

DOWNLOAD (ZIP) 4.8 MB

ZIP

XB4-XB5 - Mounting - Instruction Sheet

VERSION

1.0

DATE

14 May 2026

REVISION

1.0

DOWNLOAD (ZIP) 441.7 KB

ZIP

ZB... Contact and light blocks mounting for XB4 and XB5, Instruction Sheet

VERSION

1.0

DATE

05 Dec 2024

REVISION

1.0

DOWNLOAD (ZIP) 218.8 KB

ZIP

Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions

VERSION

1.0

DATE

22 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 152.9 KB

ZIP

E-Flex Adjustable Speed Drive Controllers Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 5.9 MB

ZIP

Harmony XB5 Pilot Light

VERSION

1.0

DATE

09 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB

ZIP

Technical Illustration - Dimensions

VERSION

1.2

DATE

06 Nov 2024

REVISION

1.2

DOWNLOAD (ZIP) 233.4 KB

ZIP

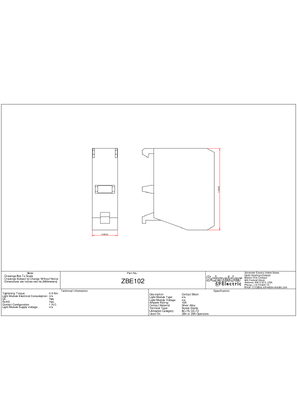

ZBE102_2DSalesDrawing_PDF
