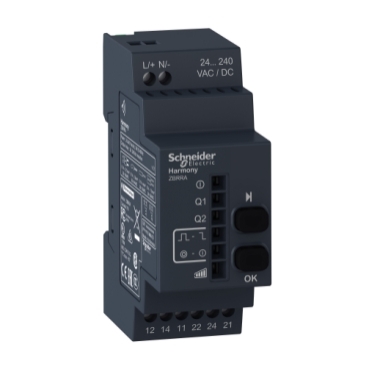

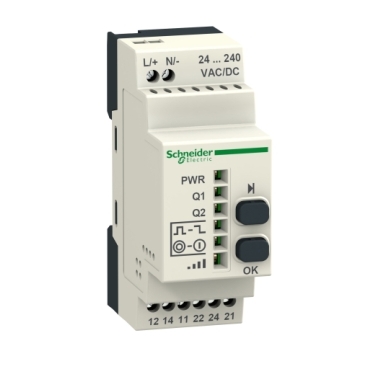

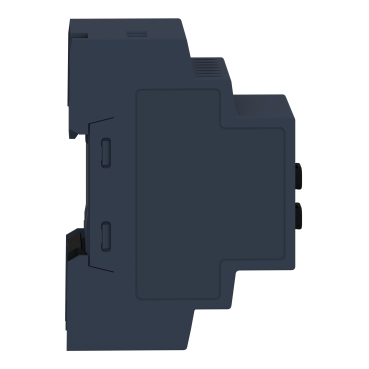

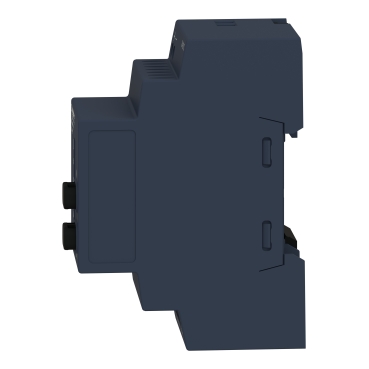

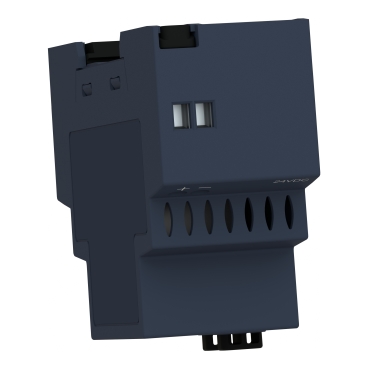

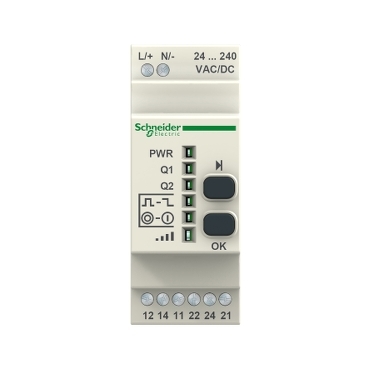

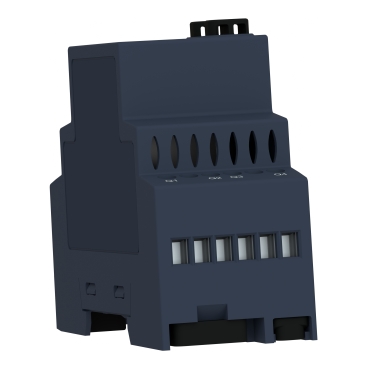

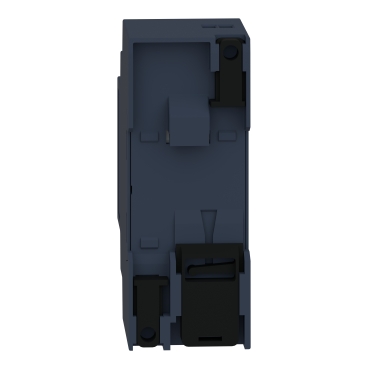

Harmony XB5R Programmable receiver 2 relays, 24..240V AC/DC, 2 push-buttons, 6 LEDs
Item Number: ZBRRA
Specifications
Design
Range of product
Product or component type
Warranty
Physical
Function of module
- bi-stable
- monostable
- stop/start
Transmission frequency
Communication port protocol
Mounting support
- 35 mm symmetrical DIN rail conforming to IEC 60715
- mounting plate
Number of channels
Width
Height
Depth
Net weight
Standards
- CSA C22.2 No 14
- UL 508
- IEC 60947-5-1
- IEC 60947-1
Product certifications
- C-Tick
- CCC
- CSA
- UL
- GOST
Marking
Ambient air temperature for storage
Relative humidity
Ip degree of protection
- IP20 (casing) conforming to IEC 60529
- IP20 (terminals)
Insulation resistance
Electrical durability
Mechanical durability
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Others
Package 1 bare product quantity
Device short name
Product specific application
Reset time
Level or class
Antenna type
Nominal output current
- 0.3 A at 48 V DC conforming to IEC 60947-5-1
- 3 A at 24 V DC conforming to UL 508
- 1.5 A at 240 V AC conforming to IEC 60947-5-1
- 3 A at 120 V AC conforming to IEC 60947-5-1
- 3 A at 240 V AC conforming to UL 508
- 3 A at 24 V DC conforming to CSA C22.2 No 14
- 3 A at 240 V AC conforming to CSA C22.2 No 14
Output type
Output contacts
Input output isolation
Time delay range
Switching capacity in va
Maximum switching current
Maximum switching voltage
[us] rated supply voltage
Maximum sensing distance
- 100 m in free field
- 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure
- 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
Response time
Utilisation category
- AC-15 : B300 conforming to IEC 60947-5-1
- DC-12 conforming to IEC 60947-5-1
Maximum power consumption in w
Breaking capacity
Breaking capacity
Control circuit frequency
Short-circuit protection
Operating position
Electrical connection
- 1 conductor cable 0.14-2.5 mm² - AWG 26...AWG 14 - solid - without cable end conforming to IEC 60947-1
- 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - solid - without cable end conforming to IEC 60947-1
- 1 conductor cable 0.14-4 mm² - AWG 26...AWG 12 - flexible - with cable end conforming to IEC 60947-1
- 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - flexible - with cable end conforming to IEC 60947-1
Tightening torque
Housing material
Status led
- 1 LED green for power ON
- 2 LEDs green for relay ON
- 2 LEDs green for function mode
- 1 LED green and yellow for reception signal
Rated short-duration power frequency withstand voltage
[uimp] rated impulse withstand voltage
Surge withstand
- 1 kV differential mode conforming to IEC 61000-4-5
- 2 kV common mode conforming to IEC 61000-4-5
Max power consumption in w
Modulation technique
Bandwidth
Antenna gain
[us] rated supply voltage
Radio agreement
- RSS
- SRRC
- ANATEL
- ARIB T66
- FCC
- ICASA
Vibration resistance
- +/- 7.5 mm (f= 5-14 Hz) conforming to IEC 60068-2-6
- 2 gn (f= 8-150 Hz) conforming to IEC 60068-2-6
Shock resistance
Pollution degree
Overvoltage category
[ui] rated insulation voltage
Electromagnetic compatibility
- immunity for industrial environments conforming to IEC 61000-6-2
- conducted and radiated emissions class B conforming to CISPR 22
- electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
- electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
- susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3
- susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3
- electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4
- electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4
- 1.2/50 µs shock waves immunity test - test level: 1 kV (differential mode) conforming to IEC 61000-4-5
- 1.2/50 µs shock waves immunity test - test level: 2 kV (common mode) conforming to IEC 61000-4-5
- conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6
- immunity to microbreaks and voltage drops - test level: 10 ms conforming to IEC 61000-4-11
- radiated emission conforming to ETSI EN 300 440-1
- conducted emission conforming to EN 300-489-1
- conducted emission conforming to ETSI EN 300 489-3
- radiated emission conforming to ETSI EN 300 440-2
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Packaging without single use plastic
Packaging made with recycled cardboard
Scip number
Green premium status for reporting
Weee
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Product Brochures
-
Technical Data Catalogues
-
End of Life Manual
-
Environmental Disclosure
-

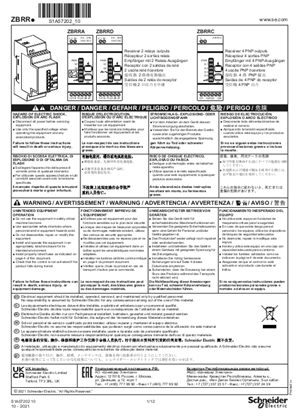

Installation Instruction
-

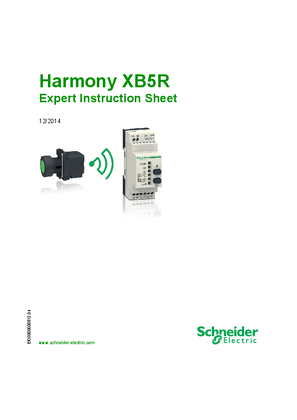

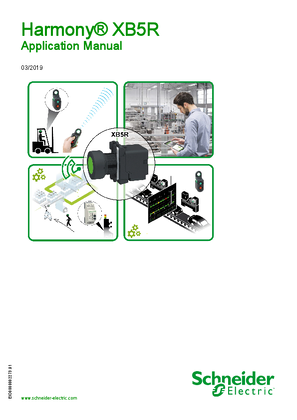

Operating Manuals
-
Technical illustration
-
Application Notes
-
Certificates (MSDS)
-
eTechPub
-

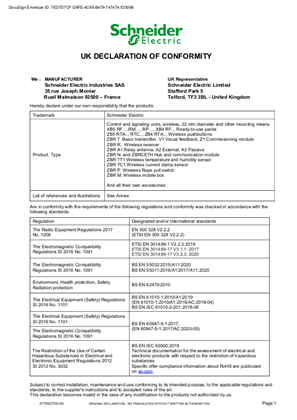

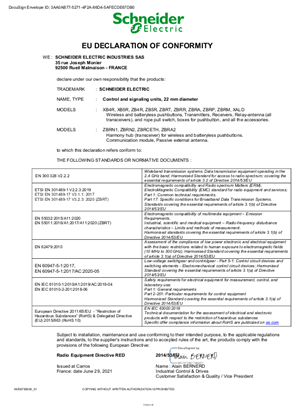

Declaration of Conformity
Wireless Push Button and Configurable Receiver
VERSION
1.0
DATE
23 Apr 2025
REVISION
1.0
SWITCH TI TIM 20A 2P+RED LIGHT - Product End of Life Instructions
VERSION
1.0
DATE
30 Apr 2024
REVISION
1.0
ZBRR. Programmable receivers, Product End-of-Life Instructions
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0

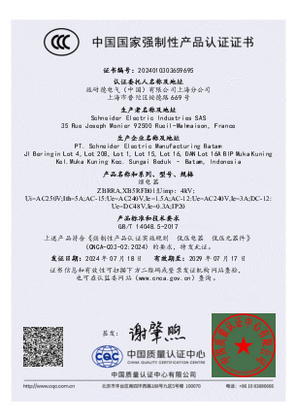

CCC certificate ZBRRA, XB5RFB01, Radio receivers, relay output
VERSION
1.2
DATE
12 Nov 2024
REVISION
1.2

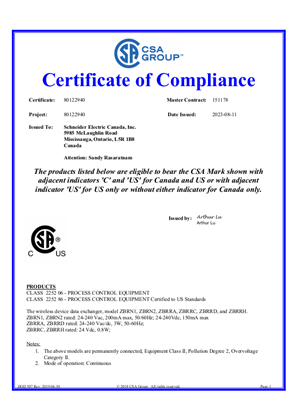

CSA-Certificate-wireless device data exchanger ZBRN1, ZBRN2, ZBRRA, ZBRRC, ZBRRD, and ZBRRH
VERSION
1.0
DATE
23 Feb 2024
REVISION
1.0

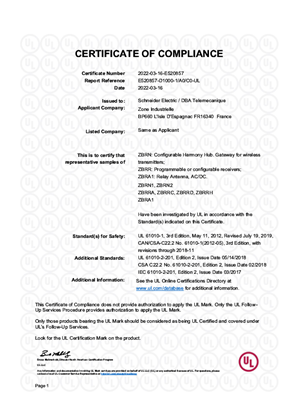

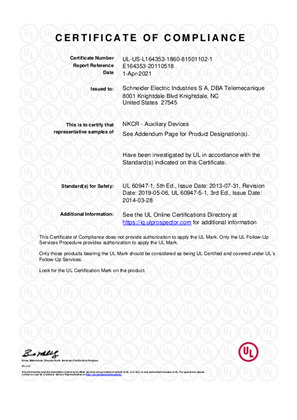

UL-Certificate-XB4R XB5R Wireless & Batteryless pushbuttons
VERSION
1.0
DATE
23 Feb 2024
REVISION
1.0
XB4R XB5R Wireless & Batteryless pushbuttons
VERSION
1.0
DATE
23 Feb 2024
REVISION
1.0

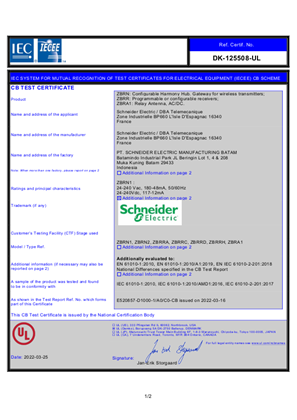

IECEE CB - SCHEME-Certificate-Solo range ZBRN ZBRA ZBRR
VERSION
1.0
DATE
23 Feb 2024
REVISION
1.0
IECEE CB SCHEME Certificate
VERSION
1.0
DATE
23 Feb 2024
REVISION
1.0

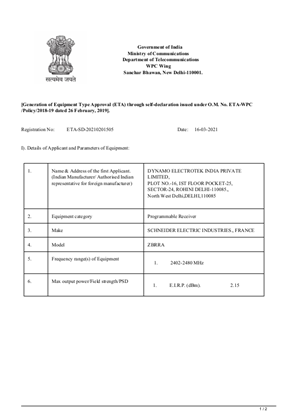

ETA India_ZBRRA Wireless and Batteryless pushbuttons
VERSION
1.0
DATE
11 May 2023
REVISION
1.0

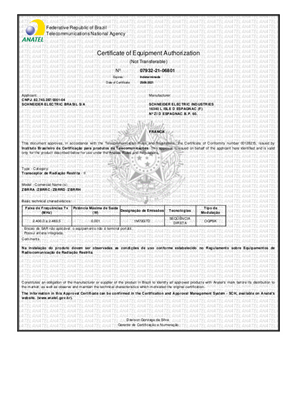

ANATEL_ZBRRA_ZBRRC_ZBRRD_ZBRRH Wireless and Batteryless pushbuttons
VERSION
1.0
DATE
10 May 2023
REVISION
1.0

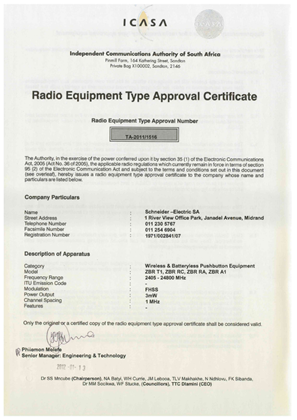

ICASA-Certificate-ZBRR, ZBRA1 Wireless and Batteryless pushbuttons Equipments
VERSION
1.0
DATE
10 May 2023
REVISION
1.0
ASEFA Certificate
VERSION
1.0
DATE
06 Oct 2022
REVISION
1.0
XB4R, XB5R, ZBRN1, ZBRN2, ZBRCETH, ZBRA2 Wireless & Batteryless pushbuttons and XALD
VERSION
1.0
DATE
01 Mar 2024
REVISION
1.0
XB4R, XB5R, ZBRN1, ZBRN2, ZBRCETH, ZBRA2 Wireless & Batteryless pushbuttons and XALD
VERSION
1.0
DATE
01 Mar 2024
REVISION
1.0
XB4R XB5R Wireless & Batteryless pushbuttons equipments
VERSION
1.0
DATE
28 Sep 2023
REVISION
1.0
Frequently Asked Questions
What is the difference between ZBRRC, ZBRRA, and ZBRRD?
Hide ShowFunctions and mode of ZBRRC, ZBRRA, and ZBRRD
Product Line:
Push Buttons and Operator Interface
Environment:
XB5R Wireless Push Buttons
Cause:
Product Selection
Resolution:
ZBRRC has 4 programmable PNP outputs rated at 200mA. The ZBRRA and ZBRRD has 2 programmable relay outputs and is rated at 3A.
ZBRRC - momentary (monostable)
ZBRRD - Can be programmed for momentary (monostable), or maintained (bi-stable).
ZBRRA - Can be programmed for momentary (monostable), maintained (bi-stable), Stop/start
