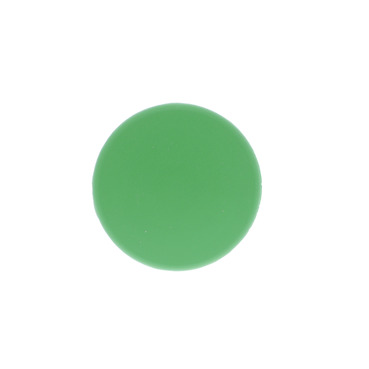

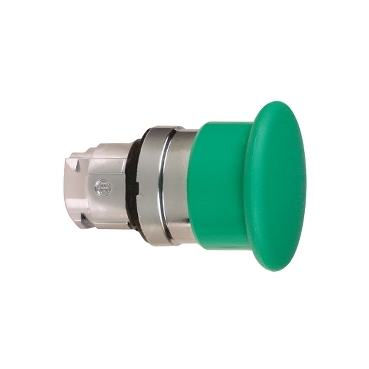

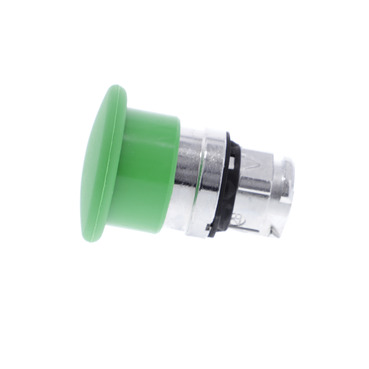

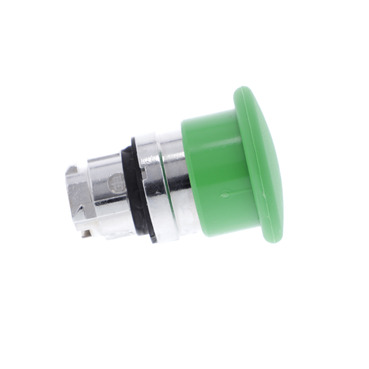

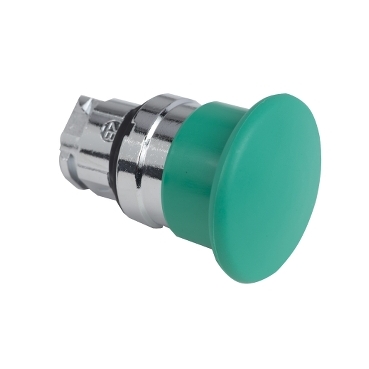

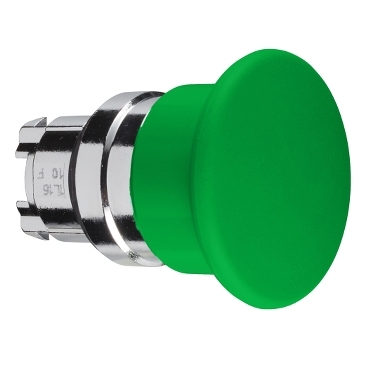

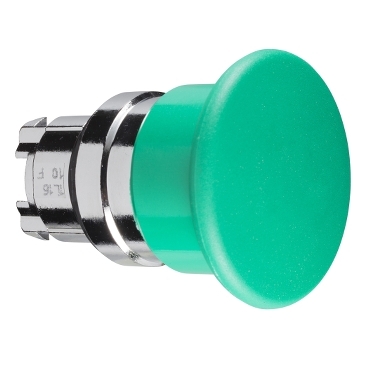

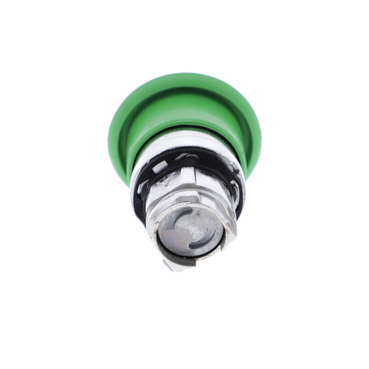

Harmony XB4, Head for non illuminated pushbutton, mushroom 40mm, metal, green, 22mm, spring return

Item Number: ZB4BC3

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110888447	-

Specifications

Design

Range of product

Harmony XB4

Product or component type

head for non-illuminated push-button

Warranty

18 months

Physical

Sale per indivisible quantity

Mechanical durability

5000000 cycles

Marking

unmarked

Device presentation

basic element

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-40...70 °C

Ip degree of protection

IP66 conforming to IEC 60529
IP69
IP69K

Ik degree of protection

IK06 conforming to IEC 50102

Standards

EN/IEC 60947-1
EN/IEC 60947-5-5
EN/IEC 60947-5-1
UL 508
EN/IEC 60947-5-4
CSA C22.2 No 14
JIS C8201-5-1
JIS C8201-1

Product certifications

BV
CSA
DNV
LROS (Lloyds register of shipping)
UL listed

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2308035EN

Circularity profile

ENVEOLI2308035EN

California proposition 65

WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Package 1 bare product quantity

Device short name

ZB4

Bezel material

chromium plated metal

Mounting diameter

22 mm

Head type

standard

Shape of signaling unit head

round

Type of operator

spring return

Operator profile

green mushroom Ø 40 mm, unmarked

Cap/operator or lens colour

green

Cad overall width

40 mm

Cad overall height

40 mm

Cad overall depth

52 mm

Electrical composition code

C1 for <9 contacts using single blocks in front mounting
C2 for <9 contacts using single and double blocks in front mounting
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting

Main group

mushroom head

Group of product

mush. spring return non illum.

Cap/operator or lens colour

green

Gcr bridge

ZB4BCCUST01

Compatibility code

ZB4

Protective treatment

Overvoltage category

class I conforming to IEC 60536

Nema degree of protection

NEMA 13
NEMA 4X

Vibration resistance

5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

9.4 cm

Package 1 width

4.5 cm

Package 1 length

5.4 cm

Package 1 weight

76.0 g

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

3.54 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

Yes

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Global warming ; total life cycle

1 kg CO2 eq.

Carbon footprint (kg.eq.co2 per cr, total life cycle)

0.6600027521

Minimum percentage of recycled plastic content

Show all specifications

Documents & downloads

hide show

Colour ()

Harmony XB4, Head for non illuminated pushbutton, mushroom 40mm, metal, green, 22mm, spring return

Item Number: ZB4BC3

Colour ()

Datasheet

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

End of Life Manual

Environmental Disclosure

Installation Instruction

Technical illustration

Technical Drawing

eTechPub

Certificates (MSDS)

Declaration of Conformity

Missing CAD 2024 project C&S

ZB4BC3_CAD

Discover the Harmony XB4 metal Control and signaling units catalog

Harmony XB4 Non Illuminated Push Button, End Of Life Instructions

Harmony XB4 Non Illuminated Push Button, Product Environmental Profile

XB4.. / XB5... Mounting, Instruction Sheet

Harmony XB4B/XB5A, ZB4B/ZB5A 22mm Push Buttons Installation Instructions

ZB4..., ZB5... Mounting XB4 pushbuttons chromium plated metal bezel and XB5 plastic bezel with or without circular yellow legends ZBY9.2., Instruction Sheet (EN)

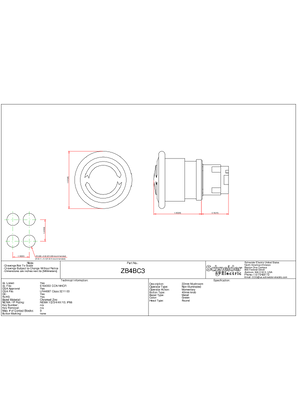

Technical Illustration - Dimensions
