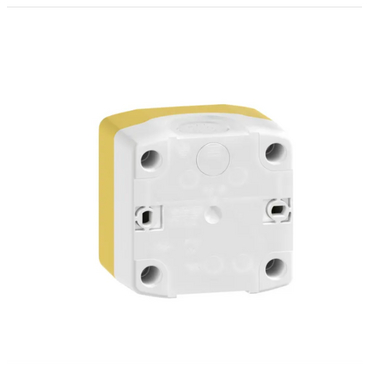

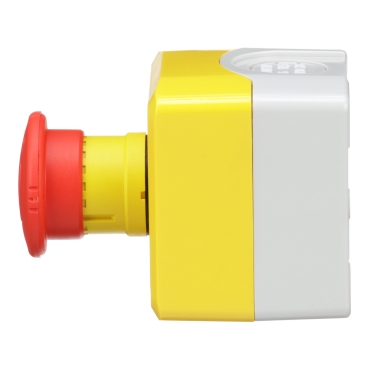

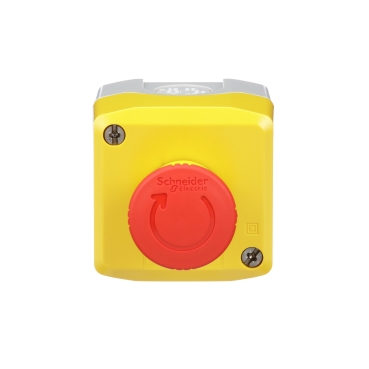

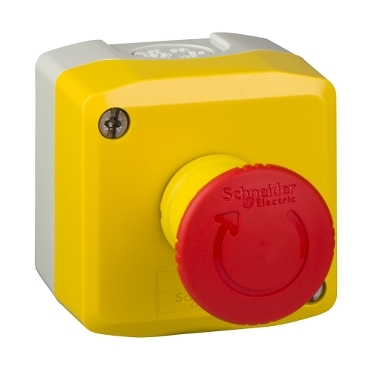

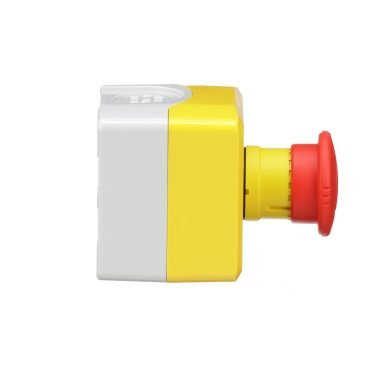

Harmony XALD XALK Control station plastic, yellow lid, 1 red mushroom push-button 40mm, turn to release, 1NC
Item Number: XALK178
Datasheet
Specifications
Design
Range of product
Product or component type
Product destination
Warranty
Physical

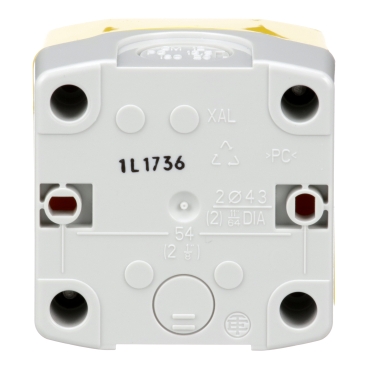

Cable entry
- 1 knock-out for cable entry 0-14 mm
- 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
Net weight
Mechanical durability
Connections - terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1
- screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
[ie] rated operational current
- 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1
- 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1
- 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1
- 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1
- 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1
Electrical durability
- 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
- 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Ambient air temperature for storage
Ambient air temperature for operation
Ip degree of protection
- IP66 conforming to IEC 60529
- IP67
- IP69
- IP69K
Ik degree of protection
Standards
- IEC 60204-1
- IEC 60947-1
- IEC 60947-5-4
- ISO 13850
- JIS C 4520
- IEC 60364-5-53
- IEC 60947-5-5
- UL 508
- CSA C22.2 No 14
- IEC 60947-5-1
Ip degree of protection
Reach free of svhc
Toxic heavy metal free
Mercury free
Rohs exemption information
Environmental disclosure
Eu rohs directive
Reach regulation
Reach regulation
China rohs regulation
Eu rohs directive
China rohs regulation
Material
Material
Contacts material
Others
Average percentage of recycled plastic content
Package 1 bare product quantity
Legacy weee scope
Warranty duration(in months) bmecat
Weee label
Device short name
Control station application
- emergency switching off function
- emergency stop function
Colour of base of enclosure
Colour of cover
Operator profile
Operators description
Reset
Control station composition
Contact operation
Resistance to high pressure washer
Number of command positions
Number of indicator lights
Number of push buttons
Positive opening
Operating travel
- 1.5 mm (NC changing electrical state)
- 2.6 mm (NO changing electrical state)
- 4.3 mm (total travel)
Operating force
Number of selector switches
Tightening torque
Number of key switches
Shape of screw head
- cross compatible with Philips no 1 screwdriver
- cross compatible with pozidriv No 1 screwdriver
- slotted compatible with flat Ø 4 mm screwdriver
- slotted compatible with flat Ø 5.5 mm screwdriver
Short-circuit protection
[ith] conventional free air thermal current
[ui] rated insulation voltage
Number of mushroom-shaped push-buttons
[uimp] rated impulse withstand voltage
Electrical reliability
- λ < 10exp(-6) at 5 V, 1 mA conforming to IEC 60947-5-4
- λ < 10exp(-8) at 17 V, 5 mA conforming to IEC 60947-5-4
Number of contacts as normally closed contact
Number of contacts as normally open contact
Compatibility code
Number of contacts as change-over contact
Colour of cover
Protective treatment
Overvoltage category
Nema degree of protection
- NEMA 13
- NEMA 4X
Vibration resistance
Shock resistance
- 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
- 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Nema degree of protection
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Green premium status for reporting
Total lifecycle carbon footprint
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the installation phase [a5]
Carbon footprint of the installation phase [a5]
Carbon footprint of the use phase [b2, b3, b4, b6]
Carbon footprint of the use phase [b2, b3, b4, b6]
Sustainable packaging
Carbon footprint of the end-of-life phase [c1 to c4]
Carbon footprint of the end-of-life phase [c1 to c4]
Take-back
Product contributes to saved and avoided emissions
Removable battery
Total lifecycle carbon footprint
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
China rohs label
End of life manual availability
Take-back
Warranty (in months)
