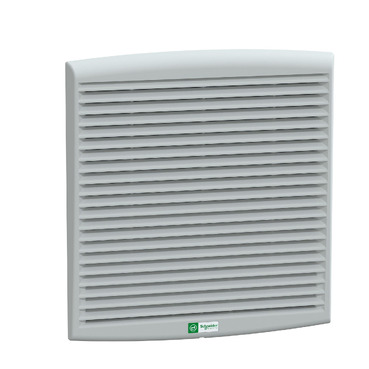

ClimaSys ClimaSys forced vent IP54, 560m3/h, 230V, with outlet grille and filter G2

Home ProductsIndustrialClimaSysClimaSys forced vent

ClimaSys ClimaSys forced vent IP54, 560m3/h, 230V, with outlet grille and filter G2

Item Number: NSYCVF560M230PF

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Widthexternal: 316 mm

Height icon

Heightexternal: 336 mm

Depth icon

Depthexternal : 161 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

ClimaSys

Product or component type

fan

Colour

outlet grille: grey (RAL 7035)

Warranty

18 months

Physical

Range compatibility

  • Prisma P
  • Prisma G

Product certifications

CSA

[in] rated current

  • 0.29...0.29 A 50 Hz
  • 0.35...0.35 A 60 Hz

Height

external: 336 mm

Width

external: 316 mm

Depth

external : 161 mm

Net weight

3.2 kg

Ambient air temperature for operation

-15...60 °C

Ambient air temperature for storage

-40...70 °C

Connections - terminals

terminal block

Ip degree of protection

IP54

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110717EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

outlet grille: injected thermoplastic (ASA PC)

Device composition

  • 1 axial motor
  • 2 protective grille: on the front and rear surfaces
  • 1 filter: front of axial motor
  • 1 outlet grille: front
  • 1 cut-out template

Others

Legacy weee scope

In

At least in Europe

Average percentage of recycled plastic content

0 %

Package 2 bare product quantity

24

Package 1 bare product quantity

1

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Lead time

Usually Ships within 4 Weeks

Product name

ClimaSys CV

Type of ventilation filter

standard

Air flow

  • free flow rate with standard filter: 562 m3/h at 50 Hz
  • free flow rate with standard filter: 586 m3/h at 60 Hz

[us] rated supply voltage

207...244 V

Input voltage

230 V 50/60 Hz

Power range

  • 64 W 50 Hz
  • 80 W 60 Hz

Noise level

59 dB

Bearing type

ball

Cut-out dimensions

291 x 291 mm

Maximum pressure

140 Pa flow rate 0 m³/h

Condition of use

  • filter must be cleaned and replaced regularly
  • surrounding environment must be relatively clean
  • outside temperature must be 5 °C lower than inside temperature
  • overfrequent filter replacement should be avoided
  • flow rates depends on the work point, see ProClima software

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

23.000 cm

Package 1 width

32.000 cm

Package 1 length

34.000 cm

Package 1 weight

3.554 kg

Unit type of package 2

P12

Number of units in package 2

24

Package 2 height

119.000 cm

Package 2 width

80.000 cm

Package 2 length

120.000 cm

Package 2 weight

94.000 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

36 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

23.080254847458853

Carbon footprint of the manufacturing phase [a1 to a3]

23 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

7.0433652949549135

Carbon footprint of the distribution phase [a4]

7 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.39496963024347537

Carbon footprint of the installation phase [a5]

0.4 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

5.30078982792936

Carbon footprint of the end-of-life phase [c1 to c4]

5 kg CO2 eq.

F-gas free

N/A

Updatability

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

35.8193796005866

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

61d9d3f3-5a49-48f8-8056-1a5ad0ad4c76

End of life manual availability

ENVEOLI1107017EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
