ClimaSys, ClimaSys forced vent, IP54, 165m3/h, 230V, with outlet grille and filter G2

Home ProductsIndustrialClimaSysClimaSys forced vent

ClimaSys, ClimaSys forced vent, IP54, 165m3/h, 230V, with outlet grille and filter G2

Item Number: NSYCVF165M230PF

Where To Buy

Datasheet

Download

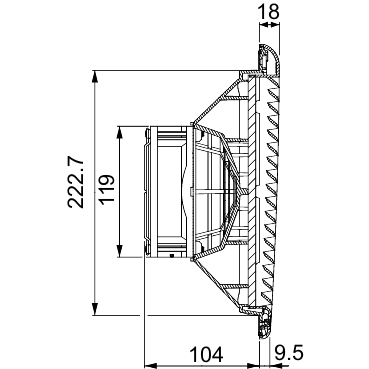

Product Dimensions

Width icon

Widthexternal: 248 mm

Height icon

Heightexternal: 268 mm

Depth icon

Depthexternal : 104 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

ClimaSys

Product or component type

fan

Colour

outlet grille: grey (RAL 7035)

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[in] rated current

0.12...0.12 A 50 Hz|0.94...0.94 A 60 Hz

Height

external: 268 mm

Width

external: 248 mm

Depth

external : 104 mm

Net weight

1.14 kg

Ambient air temperature for operation

-20...60 °C

Ambient air temperature for storage

-40...70 °C

Connections - terminals

Faston connector

Ip degree of protection

IP54

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110717EN

Circularity profile

ENVEOLI1107017EN

Material

Material

outlet grille: injected thermoplastic (ASA PC)

Device composition

1 axial motor|2 protective grille: on the front and rear surfaces|1 filter: front of axial motor|1 outlet grille: front|1 cut-out template|1 power cord

Others

Package 1 bare product quantity

1

Product name

ClimaSys CV

Type of ventilation filter

standard

Air flow

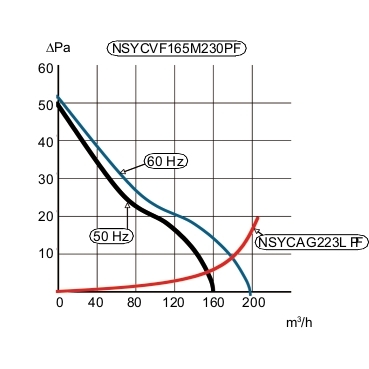

free flow rate with standard filter: 165 m3/h at 50 Hz|free flow rate with standard filter: 193 m3/h at 60 Hz

[us] rated supply voltage

175...253 V

Input voltage

230 V 50/60 Hz

Power range

16.3 W 50 Hz|14.3 W 60 Hz

Noise level

50...51 dB

Bearing type

ball

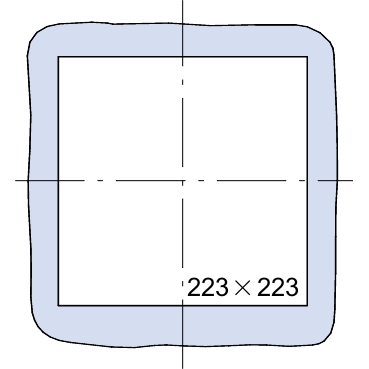

Cut-out dimensions

223 x 223 mm

Maximum pressure

50 Pa flow rate 0 m³/h

Condition of use

overfrequent filter replacement should be avoided|filter must be cleaned and replaced regularly|flow rates depends on the work point, see ProClima software|outside temperature must be 5 °C lower than inside temperature|surrounding environment must be relatively clean

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

19 cm

Package 1 width

25.5 cm

Package 1 length

27.5 cm

Package 1 weight

1.438 kg

Unit type of package 2

CAR

Number of units in package 2

4

Package 2 height

28 cm

Package 2 width

41 cm

Package 2 length

59 cm

Package 2 weight

6.674 kg

Unit type of package 3

P12

Number of units in package 3

64

Package 3 height

95 cm

Package 3 width

80 cm

Package 3 length

120 cm

Package 3 weight

122 kg
Show all specifications
