Altivar 71, Variable speed drive ATV71, 110kW, 150HP, 480V, EMC filter graphic terminal

Home ProductsIndustrialAltivarVariable speed drive ATV71

Altivar 71, Variable speed drive ATV71, 110kW, 150HP, 480V, EMC filter graphic terminal

Item Number: ATV71HC11N4

Datasheet

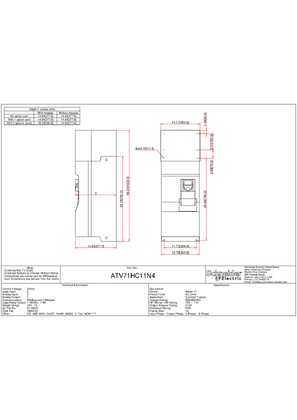

Product Dimensions

Width icon

Width360 mm

Height icon

Height1022 mm

Depth icon

Depth377 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Altivar 71

Product or component type

variable speed drive

Product destination

asynchronous motors|synchronous motors

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Local signalling

1 LED (red) for drive voltage

Type of cable

with a NEMA Type1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC|with an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC|without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC|without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR

Supply

internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection|internal supply: 24 V DC (21-27 V), <200 mA, protection type: overload and short-circuit protection

Protection type

against exceeding limit speed: drive|against input phase loss: drive|break on the control circuit: drive|input phase breaks: drive|line supply overvoltage: drive|line supply undervoltage: drive|overcurrent between output phases and earth: drive|overheating protection: drive|overvoltages on the DC bus: drive|short-circuit between motor phases: drive|thermal protection: drive|motor phase break: motor|power removal: motor|thermal protection: motor

Insulation resistance

> 1 mOhm 500 V DC for 1 minute to earth

Communication port protocol

CANopen|Modbus

Connector type

1 RJ45 (on front face) for Modbus|1 RJ45 (on terminal) for Modbus|male SUB-D 9 on RJ45 for CANopen

Marking

CE

Height

1022 mm

Depth

377 mm

Width

360 mm

Net weight

106 kg

Standards

IEC 61800-5-1|IEC 61800-3 environments 1 category C3|IEC 60721-3-3 class 3C2|IEC 61800-3|EN 55011 class A group 2|IEC 61800-3 environments 2 category C3|UL Type 1

Product certifications

NOM 117|CSA|UL|C-Tick|GOST

Ip degree of protection

IP20

Relative humidity

5...95 % without condensation conforming to IEC 60068...2-3|5...95 % without dripping water conforming to IEC 60068...2-3

Ambient air temperature for operation

-10...50 °C (without derating)

Ambient air temperature for storage

-25...70 °C

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP091205EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Commercial status history

SESA301466 | Fri Feb 16 07:56:00 EST 2024 | From Import Local | From 16 to 19

Package 1 bare product quantity

1

Product specific application

complex, high-power machines

Component name

ATV71

Motor power kw

110 kW, 3 phases at 380...480 V

Motor power hp

150 hp, 3 phases at 380...480 V

Maximum motor cable length

100 m shielded cable|200 m unshielded cable

[us] rated supply voltage

380...480 V - 15...10 %

Network number of phases

3 phases

Line current

163 A for 480 V 3 phases 110 kW / 150 hp|202 A for 380 V 3 phases 110 kW / 150 hp

Emc filter

integrated

Assembly style

with heat sink

Variant

reinforced version

Apparent power

133 kVA at 380 V 3 phases 110 kW / 150 hp

Prospective line isc

35 kA for 3 phases

Nominal output current

215 A at 2.5 kHz 380 V 3 phases 110 kW / 150 hp|215 A at 2.5 kHz 460 V 3 phases 110 kW / 150 hp

Maximum transient current

323 A for 60 s 3 phases 110 kW / 150 hp|355 A for 2 s 3 phases 110 kW / 150 hp

Output frequency

0.1...500 Hz

Nominal switching frequency

2.5 kHz

Switching frequency

2.5...8 kHz adjustable|2.5...8 kHz with derating factor

Asynchronous motor control profile

voltage/frequency ratio (2 or 5 points)|ENA (Energy adaptation) system for unbalanced loads|sensorless flux vector control (SFVC) (voltage or current vector)|flux vector control (FVC) with sensor (current vector)

Type of polarization

no impedance for Modbus

Supply voltage limits

323...528 V

Supply frequency

50...60 Hz - 5...5 %

Network frequency

47.5...63 Hz

Speed range

1...100 for asynchronous motor in open-loop mode, without speed feedback|1...1000 for asynchronous motor in closed-loop mode with encoder feedback|1...50 for synchronous motor in open-loop mode, without speed feedback

Speed accuracy

+/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn|+/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn

Torque accuracy

+/- 15 % in open-loop mode, without speed feedback|+/- 5 % in closed-loop mode with encoder feedback

Transient overtorque

170 % of nominal motor torque +/- 10 % for 60 s every 10 minutes|220 % of nominal motor torque +/- 10 % for 2 s

Braking torque

<= 150 % with braking or hoist resistor|30 % without braking resistor

Synchronous motor control profile

vector control without speed feedback

Regulation loop

adjustable PI regulator

Motor slip compensation

adjustable|not available in voltage/frequency ratio (2 or 5 points)|automatic whatever the load|suppressable

Output voltage

<= power supply voltage

Insulation

electrical between power and control

Electrical connection

terminal, clamping capacity: 2.5 mm², AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)|terminal, clamping capacity: 2 x 100 mm² (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)|terminal, clamping capacity: 60 mm² (PA, PB)|terminal, clamping capacity: 2 x 150 mm² (PC/-, PO, PA/+)

Tightening torque

0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)|24 N.m, 212 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)|12 N.m, 106 lb.in (PA, PB)|41 N.m, 360 lb.in (PC/-, PO, PA/+)

Analogue input number

2

Analogue input type

AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign|AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits|AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits

Sampling duration

2 ms +/- 0.5 ms (AI1-/Al1+) - analog input(s)|2 ms +/- 0.5 ms (Al2) - analog input(s)|2 ms +/- 0.5 ms (LI1...LI5) - discrete input(s)|2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input(s)

Response time

<= 100 ms in STO (Safe Torque Off)|AO1 2 ms, tolerance +/- 0.5 ms for analog output(s)|R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms for discrete output(s)|R2A, R2B 7 ms, tolerance +/- 0.5 ms for discrete output(s)

Accuracy

+/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C|+/- 0.6 % (AI2) for a temperature variation 60 °C|+/- 1 % (AO1) for a temperature variation 60 °C

Linearity error

+/- 0.15 % of maximum value (AI1-/Al1+, AI2)|+/- 0.2 % (AO1)

Analogue output number

1

Analogue output type

AO1 software-configurable logic output 10 V 20-20 mA|AO1 software-configurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits|AO1 software-configurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits

Discrete output number

2

Discrete output type

configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles|configurable relay logic: (R2A, R2B) NO - 100000 cycles

Minimum switching current

3 mA at 24 V DC for configurable relay logic

Maximum switching current

R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 |R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 |R1, R2: 5 A at 250 V AC resistive load, cos phi = 1 |R1, R2: 5 A at 30 V DC resistive load, cos phi = 1

Discrete input number

7

Discrete input type

LI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm|LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm|LI6: switch-configurable PTC probe 0-6 , impedance: 1500 Ohm|PWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d

Discrete input logic

negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1)|positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1)|negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1)|positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1)

Acceleration and deceleration ramps

linear adjustable separately from 0.01 to 9000 s|automatic adaptation of ramp if braking capacity exceeded, by using resistor|S, U or customized

Braking to standstill

by DC injection

Frequency resolution

analog input: 0.024/50 Hz|display unit: 0.1 Hz

Physical interface

2-wire RS 485 for Modbus

Transmission frame

RTU for Modbus

Transmission rate

4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal|9600 bps, 19200 bps for Modbus on front face|20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen

Data format

8 bits, 1 stop, even parity for Modbus on front face|8 bits, odd even or no configurable parity for Modbus on terminal

Number of addresses

1...127 for CANopen|1...247 for Modbus

Method of access

slave CANopen

Operating position

vertical +/- 10 degree

Functionality

full

Specific application

other applications

Option card

communication card for CC-Link|controller inside programmable card|communication card for DeviceNet|communication card for EtherNet/IP|communication card for Fipio|I/O extension card|communication card for Interbus-S|interface card for encoder|communication card for Modbus Plus|communication card for Modbus TCP|communication card for Modbus/Uni-Telway|overhead crane card|communication card for Profibus DP|communication card for Profibus DP V1

Noise level

69.5 dB conforming to 86/188/EEC

Dielectric strength

3535 V DC between earth and power terminals|5092 V DC between control and power terminals

Electromagnetic compatibility

1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5|conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6|electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4|electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2|radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3|voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Pollution degree

2 conforming to IEC 61800-5-1|3 conforming to UL 840

Vibration resistance

0.6 gn (f= 10-200 Hz) conforming to IEC 60068-2-6|1.5 mm peak to peak (f= 3-10 Hz) conforming to IEC 60068-2-6

Shock resistance

7 gn for 11 ms conforming to IEC 60068-2-27

Operating altitude

<= 1000 m without derating|1000...3000 m with current derating 1 % per 100 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

41.0 cm

Package 1 width

43.0 cm

Package 1 length

122.5 cm

Package 1 weight

92.0 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • End of Life Manual

  • Operating Manuals

  • Technical Drawing

  • Declaration of Conformity

  • Certificates (MSDS)

  • eTechPub

  • Software - Data Library

Frequently Asked Questions

hide show

What is the spare part manual for the ATV61HD90M3X, ATV61HC13N4, ATV71HD75M3X and ATV71HC11N4?

Issue:
Needs the manual of spare parts for the ATV61HD90M3X, ATV61HC13N4, ATV71HD75M3X and ATV71HC11N4.

Product line:
ATV61HD90M3X, ATV61HC13N4, ATV71HD75M3X, ATV71HC11N4

Environment:
Frame size 10: ATV61HD90M3X, ATV61HC13N4, ATV71HD75M3X, ATV71HC11N4

Cause:
None

Resolution:
Instruction bulletin 30072-452-77
See attachment

Is the DC bus plate for the size 10 ATV61/71 drive available as a repair part?

Issue:
Availability of DC bus plate for size 10 ATV61/71 drive.

Product Line:
ATV61, Altivar 61, ATV71, Altivar 71

Environment:
Frame size 10.  ATV61HD90M3X, ATV61HC13N4, ATV71HD75M3X, ATV71HC11N4

Cause:
None

Resolution:
Due to safety reasons, Schneider Electric does not offer the DC bus plates separately for the ATV61 or ATV71 drives.  Contact Schneider Electric Industrial Repair Services to have the drive sent in for repairs. ph 800-950-9550

What can cause the ATV58 drives display to fade out?

Issue:
Is there a remedy for a fading display on ATV58?

Product Line:
Altivar ATV58

Environment:
This has been found in keypads manufactured between the 6th week and 15th week of 2003.
Date codes on the back of the keypad are 0306 to 0315. The four digit date code is typically preceded by a letter such as G0149.

Cause:
Premature degradation of the display

Resolution:
For affected units, need to replace the keypad or possibly replace the entire drive, because the ATV58 drives are obsoleted.

What is the part number for the ATV71HC11N4 and ATV61HC13N4 power boards?

Issue:
Needs a Power board for ATV71HC11N4

Product line:
ATV71 and ATV61

Environment:
All models, all serial numbers

Cause:
Power board not functional

Resolution:
The Power board for these drive is VX5A1HC1113.

It is required to check the Serial number of the drive before ordering the Power Board.
If the 8th digit in the serial number is 2, the drive was built using Fuji IGBT's instead of the standard Mitsubishi IGBT's.   A drive with Fuji IGBT's requires a modified version of the Power board (VX5A1HC1113F).   IGBT, and gate driver board parts also will have an F at the end.

What is ATV71 fan control board part number and troubleshooting LEDs?

Issue:
ATV71 Fan control board part number and troubleshooting LEDs.

Product Line:
Alitvar ATV71 High HP

Environment:
All

Cause:
There are two troubleshooting LEDs on the fan control board.

Resolution:
See the attached file to see the LED troubleshooting codes.

Please note that the following drives have the fan control board.

Frame size 10 is ATV71HC11N4 and ATV71HD75M3X
Frame size 11 and 12 are ATV71HC13 thru HC16N4
Frame size 13 and 14 are ATV71HC20N4 thru HC40N4
Frame size 15 is ATV71HC50N4


Frame size 10,11 and 12
1 Fan control board (VX5A1400)
1 Heat sink fan (VZ3V1212)

Fame size 13
1 Fan control board (VX5A1400)
2 Heat sink fans (VZ3V1212)

Frame size 14
2 Fan control boards (VX5A1400)
3 Heat sink fans (VZ3V1212)

Frame size 15
2 Fan control boards (VX5A1400)
4 Heat sink fans (VZ3V1212)

Where can I find information on dynamic braking resistors to use with the ATV32, ATV312 and ATV71 drives only?

Issue:
Dynamic braking resistors to use with the Altivar drives.

Product Line:
ATV32, ATV312 and ATV71 Drives

Environment:
All

Cause:
Needs to know if the drives come with a DB resistor?

Resolution:
The braking resistor is not included on the ATV32, ATV312 and ATV71 Drives, and if needed must be purchased separately.
In the US, we have partnered with a resistor company named Powerohm to provide a full range of options.
See attached document for information on sizing and selecting DB resistors from Powerohm.
Note that any technical questions related to the resistors themselves should be directed to Powerohm and the document includes their contact information.
