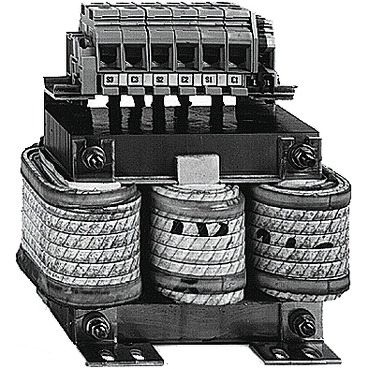

Altivar 31 Line/motor choke 0.5 mH, 60 A, 3 phases, 94 W, for variable speed drive

Item Number: VW3A4555

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width180 mm

Height210 mm

Depth165 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389118065949	-

Specifications

Design

Range of product

Altivar

Product or component type

line/motor choke

Product compatibility

LXM32MD85N4 - line choke - 1 per drive
LXM32MC10N4 - line choke - 1 per drive
variable speed drive ATV340 motor: 15 kW 380...480 V - line choke - 1 per drive
ATV61CD15N4 - motor choke - 1 per drive
ATV61HD11M3X - line choke - 1 per drive
ATV61HD15N4 - motor choke - 1 per drive
ATV61HD18N4 - line choke - 1 per drive
ATV61HD22N4 - line choke - 1 per drive
ATV61HD30Y - line choke - 1 per drive
ATV61HD37Y - line choke - 1 per drive
ATV61HD45Y - line choke - 1 per drive
ATV61HU75M3 - line choke - 1 per drive
ATV61KD15N4 - motor choke - 1 per drive
ATV61WD18N4 - line choke - 1 per drive
ATV61WD18N4C - line choke - 1 per drive
ATV61WD22N4 - line choke - 1 per drive
ATV61WD22N4C - line choke - 1 per drive
ATV71HD11M3X - line choke - 1 per drive
ATV71HD18N4 - line choke - 1 per drive
ATV71HD22N4 - line choke - 1 per drive
ATV71HD30Y - line choke - 1 per drive
ATV71HD37Y - line choke - 1 per drive
ATV71HD45Y - line choke - 1 per drive
ATV71HU75M3 - line choke - 1 per drive
ATV71WD18N4 - line choke - 1 per drive
ATV71WD22N4 - line choke - 1 per drive
ATV312HD11M3 - line choke - 1 per drive
ATV312HD15M3 - line choke - 1 per drive
ATV32HD15N4 - motor choke - 1 per drive
variable speed drive ATV340 motor: 18 kW 380...480 V - line choke - 1 per drive
variable speed drive ATV340 motor: 22 kW 380...480 V - line choke - 1 per drive
variable speed drive ATV320 motor: 15 kW 380...500 V - three phase - motor choke - 1 per drive
variable speed drive ATV320 motor: 11 kW 200...240 V - three phase - line choke - 1 per drive
variable speed drive ATV320 motor: 15 kW 200...240 V - three phase - line choke - 1 per drive
variable speed drive ATV630 motor: 30 kW 500...690 V - three phase - line choke - 1 per drive
variable speed drive ATV630 motor: 37 kW 500...690 V - three phase - line choke - 1 per drive
variable speed drive ATV630 motor: 45 kW 500...690 V - three phase - line choke - 1 per drive
variable speed drive ATV930 motor: 30 kW 500...690 V - three phase - line choke - 1 per drive
variable speed drive ATV930 motor: 37 kW 500...690 V - three phase - line choke - 1 per drive
variable speed drive ATV930 motor: 45 kW 500...690 V - three phase - line choke - 1 per drive
variable speed drive ATV630 motor: 600 V - three phase - line choke - 40 hp - 1 per drive
variable speed drive ATV630 motor: 600 V - three phase - line choke - 50 hp - 1 per drive
variable speed drive ATV630 motor: 600 V - three phase - line choke - 60 hp - 1 per drive
variable speed drive ATV930 motor: 600 V - three phase - line choke - 40 hp - 1 per drive
variable speed drive ATV930 motor: 600 V - three phase - line choke - 50 hp - 1 per drive
variable speed drive ATV930 motor: 600 V - three phase - line choke - 60 hp - 1 per drive

Device application

reduction of overvoltages at motor terminals
reduction of current harmonics

Warranty

18 months

Physical

Range compatibility

Altivar 32
Altivar Machine ATV340
Lexium 62
Altivar 71
Altivar Machine ATV320
Altivar 312
Altivar Process ATV900
Altivar Process ATV600
Altivar 61
Lexium 32
Easy Altivar 310

[in] rated current

60 A

Electrical insulation class

class F

Net weight

11 kg

Width

180 mm

Height

210 mm

Depth

165 mm

Standards

EN 50178
IEC 60076 (with HD398)
VDE 0160 level 1

Ip degree of protection

choke: IP00
terminals: IP10

Environmental characteristic

3B1 conforming to IEC 721-3-3
3C2 conforming to IEC 721-3-3
3S1 conforming to IEC 721-3-3

Relative humidity

0...95 %

Ambient air temperature for operation

45...55 °C (with current derating of 2 % per °C)
0...45 °C (without current derating)

Ambient air temperature for storage

-25...70 °C

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Legacy weee scope

Out

Average percentage of recycled plastic content

0 %

Package 1 bare product quantity

At least in Europe

Weee label

Network number of phases

three phase

Value of inductance

0.5 mH

Thermal losses

94 W

Accessory / separate part category

protection accessories

Electrical connection

terminal 35 mm² / AWG 0, 2.5-3 N.m

Supply frequency

50...60 Hz

Max current

1.65 x nominal current (duration = 60 s)

Maximum voltage drop at rated load

5 %

Minimum clearance distance

5.5 mm IEC 60664

Leakage distance

11.5 mm conforming to IEC 60664

Pollution degree

2 conforming to EN 50178

Vibration resistance

1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6
1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Operating altitude

<= 1000 m without current derating
<= 1000 m without derating

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

25.600 cm

Package 1 width

28.400 cm

Package 1 length

32.800 cm

Package 1 weight

11.062 kg

Unit type of package 2

P06

Number of units in package 2

Package 2 height

75.000 cm

Package 2 width

60.000 cm

Package 2 length

80.000 cm

Package 2 weight

105.160 kg

Sustainable packaging

Take-back

Product contributes to saved and avoided emissions

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Packaging without single use plastic

Scip number

4934d727-4a01-454e-b001-ddcc449d383b

Take-back

Warranty (in months)

Show all specifications

Documents & downloads

hide show

All
Product Brochures
Technical Data Catalogues
Installation Instruction
eTechPub
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

PDF

Altivar Process variable speed drives

VERSION

1.0

DATE

17 Nov 2015

REVISION

1.0

Colour ()

Altivar 31 Line/motor choke 0.5 mH, 60 A, 3 phases, 94 W, for variable speed drive

Item Number: VW3A4555

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

Product Brochures

Technical Data Catalogues

Installation Instruction

eTechPub

Declaration of Conformity (Sustainability)

Altivar Process variable speed drives

Easy Series Automation and Control Essentials Catalog-2025

Discover the catalog for Altivar Machine ATV340

Discover catalog for Altivar Process ATV900 variable speed drives

Discover catalog for Altivar Process ATV600 variable speed drives

Discover the catalog for Easy Altivar 310 variable speed drives

Discover the catalog for Altivar Machine ATV320 variable speed drive

Catalog Lexium 32 servo drives BMH and BSH servo motors - October 2021

Discover the catalog for Altivar Solar Variable Speed Drives

Catalog: Altivar 71/71 Plus variable speed drives - English version 2014/04 (web pdf format)

Discover catalog for Altivar 32 Variable Speed Drives

Discover catalogue for Altivar 31C variable speed drives

Catalog: Altivar 61/61 Plus variable speed drives - English version 2014/04 (web pdf format)

Discover catalogue for Altivar 312 variable speed drives

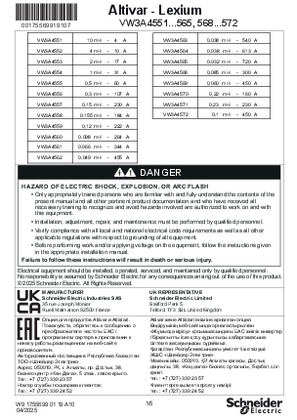

Instruction sheet - Line & motor choke 3 phase: VW3A4551-572
