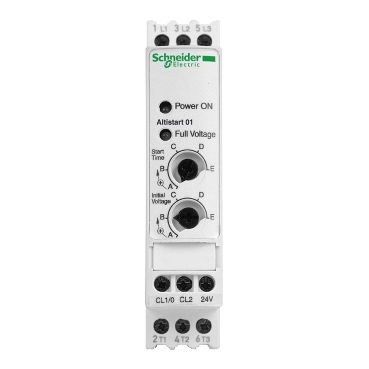

Altistart 01, Soft starter for asynchronous motor, ATS01, 3 A-110..480V-0.55..1.1 KW
Item Number: ATS01N103FT
Specifications
Design
Range of product
Product or component type
Product destination
Warranty
Physical
[ue] rated operational voltage
- 230 V 0.37 kW
- 230 V 0.55 kW
- 400 V 1.1 kW
- 230 V 0.5 hp
- 460 V 0.5 hp
- 460 V 1.5 hp
Function available
Marking
Height
Width
Depth
Net weight
Standards
Product certifications
- CSA
- GOST
- C-Tick
- UL
- CCC
Ip degree of protection
Relative humidity
Ambient air temperature for operation
- -10...40 °C (without derating)
- 40...50 °C (with current derating of 2 % per °C)
Ambient air temperature for storage
Reach regulation
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Rohs exemption information
China rohs regulation
California proposition 65
Others
Life cycle assessment data
If one of the deliverables is not relevant please give the reason
Substance regulation data deliverable
Package 1 bare product quantity
Package 2 bare product quantity
Product specific application
Device short name
Network number of phases
[us] rated supply voltage
Motor power kw
- 0.37 kW, 3 phases at 230 V
- 0.55 kW, 3 phases at 230 V
- 1.1 kW, 3 phases at 400 V
- 0.37 kW, 1 phase at 230 V
Motor power hp
- 0.5 hp, 3 phases at 230 V
- 0.5 hp, 3 phases at 460 V
- 1.5 hp, 3 phases at 460 V
Icl starter rating
Utilisation category
Current consumption
Type of start
Power dissipation in w
- 19 W in transient state
- 4 W at full load and at end of starting
Assembly style
Supply voltage limits
Supply frequency
Network frequency
Output voltage
[uc] control circuit voltage
- 110 V AC +/- 10 % at 30 mA
- 24 V AC/DC +/- 10 % at 25 mA
- 240 V AC +/- 10 % at 65 mA
Starting time
- 1 s / 100
- 5 s / 20
- adjustable from 1 to 5 s
Starting torque
Discrete output current
- 2 A DC-13
- 3 A AC-15
Tightening torque
Electrical connection
- cage type connector - rigid 1 2.5 mm² AWG 14 control circuit
- cage type connector - rigid with cable end 1 2.5 mm² AWG 14 power circuit
- cage type connector - rigid without cable end 2 1 mm² AWG 17 control circuit
- cage type connector - rigid without cable end 2 1 mm² AWG 17 power circuit
- cage type connector - flexible with cable end 1 2.5 mm² AWG 14 control circuit
- cage type connector - flexible with cable end 1 2.5 mm² AWG 14 power circuit
- cage type connector - flexible without cable end 1 2.5 mm² AWG 14 control circuit
- cage type connector - flexible without cable end 1 2.5 mm² AWG 14 power circuit
- cage type connector - flexible with cable end 2 0.75 mm² AWG 18 control circuit
- cage type connector - flexible with cable end 2 0.75 mm² AWG 18 power circuit
- cage type connector - flexible without cable end 2 1 mm² AWG 17 control circuit
- cage type connector - flexible without cable end 2 1 mm² AWG 17 power circuit
Operating position
Compatibility code
Power range
- 0.5 kW at 200...240 V 1 phase
- 0.5 kW at 200...240 V 3 phases
- 0.55...1 kW at 200...240 V 3 phases
- 1.1...2 kW at 380...440 V 3 phases
Motor starter type
Electromagnetic compatibility
- conducted and radiated emissions level B conforming to CISPR 11
- conducted and radiated emissions level B conforming to IEC 60947-4-2
- damped oscillating waves level 3 conforming to IEC 61000-4-12
- electrostatic discharge level 3 conforming to IEC 61000-4-2
- EMC immunity level 3 conforming to EN 50082-1
- EMC immunity level B conforming to EN 50082-2
- harmonics level 3 conforming to IEC 1000-3-2
- harmonics level 3 conforming to IEC 1000-3-4
- immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6
- immunity to electrical transients level 4 conforming to IEC 61000-4-4
- immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3
- micro-cuts and voltage fluctuation conforming to IEC 61000-4-11
- voltage/current impulse level 3 conforming to IEC 61000-4-5
Pollution degree
Vibration resistance
- 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
- 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
Shock resistance
Operating altitude
- <= 1000 m without derating
- > 1000 m with current derating of 2.2 % per additional 100 m
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Weee
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
Installation Instruction
-
End of Life Manual
-

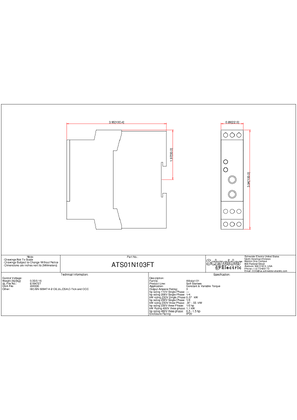

Technical Drawing
-
eTechPub
-
Certificates (MSDS)
-
Declaration of Conformity
Frequently Asked Questions
hide showDoes the ATS01 have an internal shorting contactor?
Product Line:
Altistat 01
Environment:
All
Cause:
N/A
Resolution:
All of the ALTISTART 01 models, except the ATS01N103FT and ATS01N106FT, have an internal shorting contactor as standard.
Customer is using the ATSU01 with the mounted Tesys U-Line motor starter. They are looking to coordinate the short circuit current rating.
Product line:
ATSU01, U-Line, Altistart 01, ATS01
Environment:
All models.
Cause:
n/a
Resolution:
Per Product Marketing, we do not have any combination SCCR ratings for the ATSU01 and U-Line devices. The ATSU01 and ATS01 have a standalone rating of 5kA. Except the ATS01N103FT and ATS01N106FT, which are 1kA.
Issue :
Adjustment ranges for Schneider-Electric recommend for Altistart Soft Starters?
Product Line :
Altistart Soft Starters
Environment :
Open style Soft Starters
Cause :
Adjustment Range
Resolution :
For the START TIME dial, setpoint A is 1second and setpoint E is 5seconds. There is a linear relationship from A to E setpoints.
For the INITIAL VOLTAGE dial, setpoint A is 30% and setpoint E is 80% of full voltage. There is a linear relationship from A to E setpoints.
