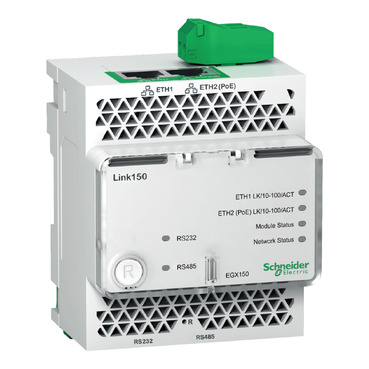

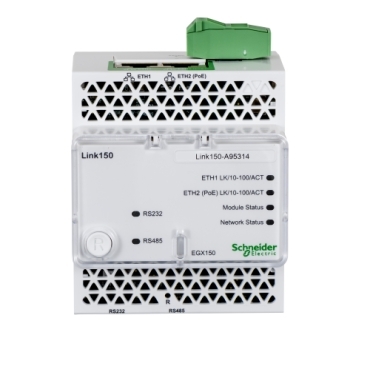

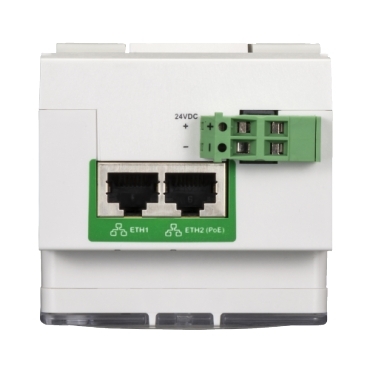

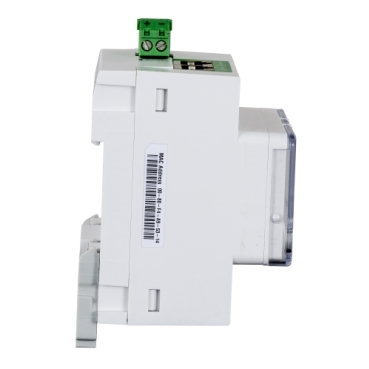

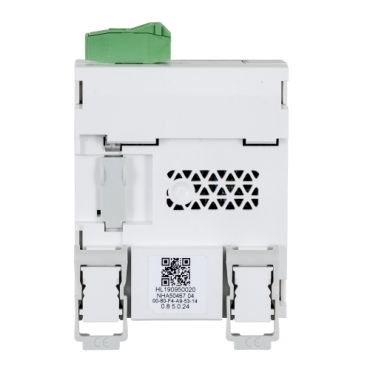

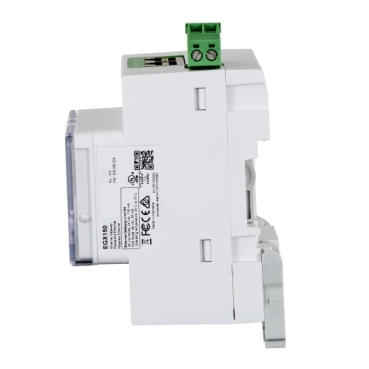

EcoStruxure Link150 Ethernet gateway 2 Ethernetport, 24V DC and PoE
Item Number: EGX150
Specifications
Design
Range
Enerlin'X
Product or component type
gateway
Device application
gateway
Physical
Supply
power supply device PoE conforming to IEEE 802.3af
Communication network type
- Ethernet, Ethernet Modbus TCP/IP daisy chain even/odd or none parity, at 10/100 Mbit/s
- Ethernet, PoE 15W (Power over Ethernet) even/odd or none parity, at 10/100 Mbit/s
- Ethernet, FTP even/odd or none parity, at 10/100 Mbit/s
- Ethernet, HTTP even/odd or none parity, at 10/100 Mbit/s
- Ethernet, SNMP even/odd or none parity, at 10/100 Mbit/s
- Ethernet, Modbus TCP/IP even/odd or none parity, at 10/100 Mbit/s
- RS232, Modbus RTU, JBUS, PowerLogic (SY/MAX) even/odd or none parity, at 2400, 4800, 9600, 19200 or 38400 bauds
- RS232, Modbus ASCII even/odd or none parity, at 2400, 4800, 9600, 19200, 38400, 56000 or 57600 bauds
- RS232, Modbus Serial line slave even/odd or none parity, at 2400, 4800, 9600, 19200 or 38400 bauds
- RS485, Modbus RTU, JBUS, PowerLogic (SY/MAX) even/odd or none parity, at 2400, 4800, 9600, 19200 or 38400 bauds
- RS485, Modbus ASCII even/odd or none parity, at 2400, 4800, 9600, 19200 or 38400 bauds
- RS485, Modbus Serial line slave even/odd or none parity, at 2400, 4800, 9600, 19200 or 38400 bauds
Communication port protocol
- Ethernet Modbus TCP/IP daisy chain, insulation 6 kV
- Modbus TCP/IP, insulation 6 kV
- Modbus RTU, JBUS, PowerLogic (SY/MAX), master - 2 or 4 wires, insulation 2.5 kV
- Modbus ASCII, master - 2 or 4 wires, insulation 2.5 kV
- Modbus RTU and ASCII, slave - 2 or 4 wires, insulation 2.5 kV
Connections - terminals
- power supply: screw terminal block (top) 0.2-1.5 mm² cable(s) rigid
- power supply: screw terminal block (top) 0.2-1.5 mm² cable(s) flexible with cable end
- power supply: screw terminal block (top) 0.2-1.5 mm² cable(s) flexible without cable end
Wire stripping length
power supply: 7 mm for top connector connection
Mounting mode
clip-on
Mounting support
35 mm DIN rail
Product certifications
- cULus
- FCC Class A
- CE
- RCM
- UL
- cUL
Standards
- IEC 60950-1
- UL 61010-2-201
- UL 61010-1
- CSA C22.2 No 60950-1
- AS/NZS 60950-1
- UL 60950-1
- IEC 61000-6-2
Depth
72 mm
Height
105 mm
Width
71 mm
Net weight
175 g
Local signalling
- LED: for Ethernet activity (ETH1)
- LED: for Ethernet activity (ETH2)
- LED: for module status
- LED: for network communication status (Net Status)
- LED: for communication (RS232)
- LED: for communication (RS485)
Relative humidity
5...95 % at 55 °C without condensation
Ip degree of protection
- IP40 (front panel (in enclosure))
- IP30 (casing)
- IP20 (terminal block)
Ambient air temperature for operation
-25...70 °C
Ambient air temperature for storage
-40...85 °C
Eu rohs directive
Compliant with Exemptions
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
X
Environmental disclosure
ENVPEP090601EN_V0
Circularity profile
ENVEOLI100609EN
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Others
Commercial status history
- SESA65410
- Wed May 07 03:28:00 CEST 2025
- From Import Local
- From 16 to 16
Package 1 bare product quantity
1
Package 2 bare product quantity
24
Package 3 bare product quantity
192
Product name
Link
Device short name
Link150
[us] rated supply voltage
external supply: 19.2...26.4 V DC, <500 mA
Number of port
2
Communication gateway
Ethernet/fieldbus
Current consumption
- 130 mA at 24 V DC via external supply (20 °C)
- 65 mA at 48 V DC via PoE (20 °C)
Maximum power consumption in w
15 W via PoE
Parity
even/odd or none
Communication port support

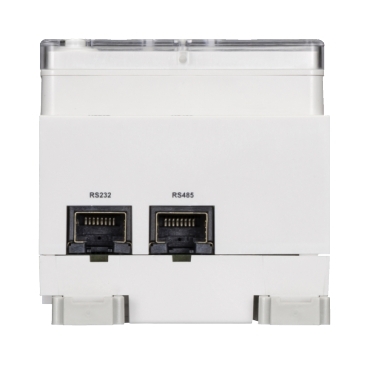

- RJ45: ETHERNET
- RJ45: RS232
- RJ45: RS485
Number of inputs
0
Number of outputs
0
Tightening torque
power supply: 0.3...0.3 N.m flat screwdriver 3 mm
Web services
web server
Compatibility code
EGX150
Mechanical robustness
- vibrations in operation: 1 Gn, 5 Hz...150 Hz conforming to IEC 60068-2-6
- vibrations de-energized: 1 Gn, 5 Hz...150 Hz conforming to IEC 60068-2-6
- shocks in operation: 10 Gn for 11 ms conforming to IEC 60068-2-27
- shocks de-energized: 15 Gn for 11 ms conforming to IEC 60068-2-27
- jolts de-energized: 100 jolts/axle, 15 Gn for 6 ms conforming to IEC 60068-2-29
- free fall resistance: 1.2 m
Electromagnetic compatibility
- immunity for industrial environments conforming to EN 61000-6-2
- immunity for industrial environments conforming to CISPR 24
- conducted and radiated emissions conforming to FCC part 15 class B
- conducted and radiated emissions conforming to EN 55022
- conducted and radiated emissions conforming to CISPR 22
- electrostatic discharge - test level: 8 kV air, 6 kV contact B conforming to EN 61000-4-2
- radiated RF fields - test level: 10 V/m, 80 MHz...1 GHz A conforming to EN 61000-4-3
- radiated RF fields - test level: 3 V/m, 1 MHz...3 GHz A conforming to EN 61000-4-3
- fast transients immunity test level 4 conforming to EN 61000-4-4
- fast transient bursts class 3 conforming to EN 61000-4-12
- surges - test level: level 4 B (1.2/50 µs) conforming to EN 61000-4-5
- conducted RF disturbances - test level: 10 V conforming to EN 61000-4-6
- conducted RF disturbances conforming to CISPR 11
- magnetic field at power frequency - test level: 30 A/m class 5 conforming to EN 61000-4-8
- voltage dips and interruptions immunity test - test level: 100 %, 20 ms B conforming to EN 61000-4-11
- voltage dips and interruptions immunity test - test level: 60 %, 200 ms B conforming to EN 61000-4-11
- voltage dips and interruptions immunity test - test level: 30 %, 500 ms conforming to EN 61000-4-11
Pollution degree
2
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9.300 cm
Package 1 width
9.000 cm
Package 1 length
12.500 cm
Package 1 weight
314.000 g
Unit type of package 2
S03
Number of units in package 2
24
Package 2 height
30.000 cm
Package 2 width
30.000 cm
Package 2 length
40.000 cm
Package 2 weight
8.200 kg
Unit type of package 3
P06
Number of units in package 3
192
Package 3 height
75.000 cm
Package 3 width
60.000 cm
Package 3 length
80.000 cm
Package 3 weight
72.000 kg
Packaging made with recycled cardboard
No
Packaging without single use plastic
No
Scip number
fe781b3c-9d04-4c09-9e07-16203c7663f2
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Pvc free
Yes
Pvc free
Yes
Recyclability
Product designed for enhanced end-of-life management and recycling
Take-back
No
Take-back
No
Product contributes to saved and avoided emissions
No
Removable battery
No
Removable battery
No
Documents & downloads
hide showFilter items
-
All
-
Other technical guide
-
Environmental Disclosure
-

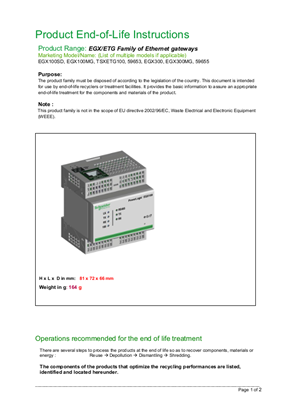

End of Life Manual
-

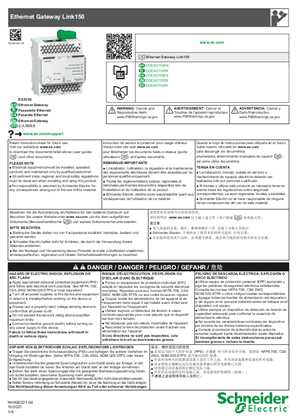

Installation Instruction
-

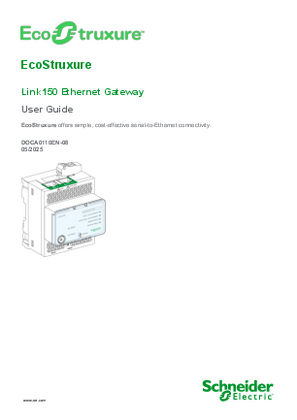

Operating Manuals
-
Technical Drawing
-
Declaration of Conformity
-

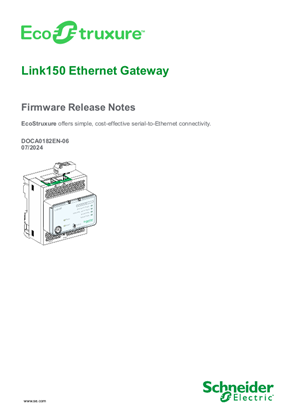

Firmware
-

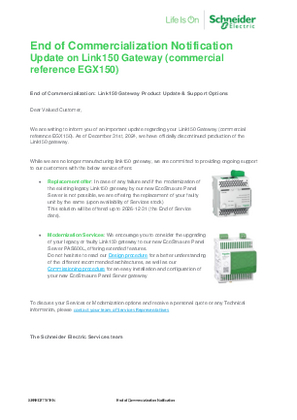

Product Announcement
-

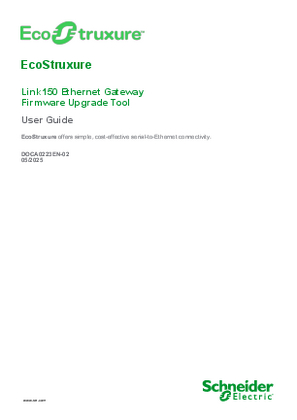

Firmware - History, Utility & Others
Frequently Asked Questions
How to change IP address on EGX150
Hide Show
Issue:
How to change IP address on EGX150
Product Line:
Enerlin'X
Environment:
Link
Resolution:
You can change the IP address on Link 150 web server, go to settings page and then go to IP Configuration tab to change the IP address, please attached screenshot from the Link 150 user guide and screenshot from the web interface page.
How to change IP address on EGX150
Product Line:
Enerlin'X
Environment:
Link
Resolution:
You can change the IP address on Link 150 web server, go to settings page and then go to IP Configuration tab to change the IP address, please attached screenshot from the Link 150 user guide and screenshot from the web interface page.
Is Ethernet communication available on ATS48 or ATS22 solid state softstarters?
Hide Show
Issue:
Needs Ethernet communication on the ATS48 or ATS22 solid state softstarters
Product Line:
ATS22, ATS48
Environment:
All
Cause:
NA
Resolution:
The ATS22 and ATS48 only support Modbus communication protocol.
Use a Gateway for Modbus - Ethernet IP conversion.
Consider the EGX150 - Link150 Ethernet Gateway or a device from a 3rd party such as ProSoft or AnyBus.
Please be aware that you cannot do I/O scanning on the ATS48 or the ATS22 soft starter.
Needs Ethernet communication on the ATS48 or ATS22 solid state softstarters
Product Line:
ATS22, ATS48
Environment:
All
Cause:
NA
Resolution:
The ATS22 and ATS48 only support Modbus communication protocol.
Use a Gateway for Modbus - Ethernet IP conversion.
Consider the EGX150 - Link150 Ethernet Gateway or a device from a 3rd party such as ProSoft or AnyBus.
Please be aware that you cannot do I/O scanning on the ATS48 or the ATS22 soft starter.
What options are there for an ATS48 softstart to communicate via Modbus ethernet?
Hide Show
Issue:
ATS48 communication options via Modbus Ethernet.
Product Line:
Altistart ATS48
Environment:
All
Cause:
Communications Options
Resolutions:
The softstart has built-in Modbus RTU.
Consider a Modbus to Ethernet Gateway such as the EGX150.
ATS48 communication options via Modbus Ethernet.
Product Line:
Altistart ATS48
Environment:
All
Cause:
Communications Options
Resolutions:
The softstart has built-in Modbus RTU.
Consider a Modbus to Ethernet Gateway such as the EGX150.
Does ATS48 have Ethernet IP option?
Hide Show
Issue:
Do Schneider Electric drives connect to Allen Bradley Blue Hose protocol?
Product line:
Altistart ATS48, ATS22
Environment:
All models, all serial numbers
Cause:
Need to connect to Ethernet IP
Resolution:
Do Schneider Electric drives connect to Allen Bradley Blue Hose protocol?
Product line:
Altistart ATS48, ATS22
Environment:
All models, all serial numbers
Cause:
Need to connect to Ethernet IP
Resolution:
Yes. EGX150 - Link150 Ethernet Gateway or contact 3rd party such as ProSoft or AnyBus for a Modbus to Ethernet IP Gateway.
Can the IEM3255 be monitored remotely via WiFi?
Hide Show
Issue:
Can the IEM3255 communicate via WIFI?
Product:
IEM3255
Environment:
Ethernet Communications / Wireless Communications
Resolution:
Unfortunately, not. The IEM3255 is only capable of Modbus RTU. However, the meter can utilize one of our ethernet gateways such as the LINK150 which will allow for a WIFI router to connect to it. For information on the LINK150 please click here. To view information on how to configure an Ethernet Gateway check out the FAQ FA21220.
Can the IEM3255 communicate via WIFI?
Product:
IEM3255
Environment:
Ethernet Communications / Wireless Communications
Resolution:
Unfortunately, not. The IEM3255 is only capable of Modbus RTU. However, the meter can utilize one of our ethernet gateways such as the LINK150 which will allow for a WIFI router to connect to it. For information on the LINK150 please click here. To view information on how to configure an Ethernet Gateway check out the FAQ FA21220.
