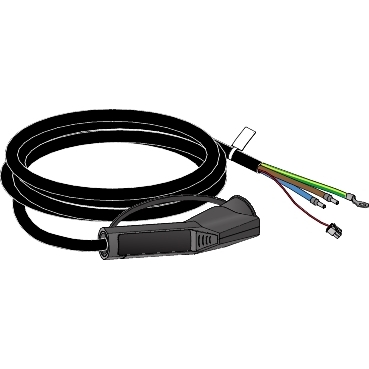

EVlink Smart Wallbox, Attached cable, T1 32A 1-Ph IEC 4,5m

Home ProductsEnergy EfficiencyEV ChargingAttached cable

EVlink Smart Wallbox, Attached cable, T1 32A 1-Ph IEC 4,5m

Item Number: EVP1CBS321A45

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

EVlink

Product or component type

charging cable

Physical

[in] rated current

32 A

Socket number

1

Connector type

<ul><li>T1 vehicle end silver plated contacts</li><li>without connector charging station end</li></ul>

Range compatibility

EVlink EVlink Smart Wallbox EVB1 charging station

Standards

<ul><li>IEC 62196-1</li><li>IEC 62196-2</li></ul>

Product certifications

CE

Length

4.5 m

Net weight

2.6 kg

Ip degree of protection

IP54 conforming to IEC 60529

Ik degree of protection

IK10 conforming to IEC 62262

Ambient air temperature for operation

-30...50 °C

Ambient air temperature for storage

-40...80 °C

Relative humidity

5...95 %

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Spare parts, accessories or module, no need in separate

Package 1 bare product quantity

1

Accessory / separate part category

spare part

Network number of phases

single phase

Poles description

1P + N

[us] rated supply voltage

220...240 V AC 50/60 Hz

Earthing system

<ul><li>compatible IT with additional isolation transformer on the power supply</li><li>compatible TN</li><li>compatible TT</li></ul>

Nominal output power

7.4 W 32 A

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

15.0 cm

Package 1 width

30.0 cm

Package 1 length

40.0 cm

Package 1 weight

1.671 kg

Product contributes to saved and avoided emissions

否
