Weathershield Switch, 1-Gang, 20A/16AX, 250VAC, IP66 1-Gang, 20A/16AX, 250VAC, IP66

Back to WS Series Switches Home Surface Mount WS Series Switches

Grey | Weathershield Switch, 1-Gang, 20A/16AX, 250VAC, IP66 1-Gang, 20A/16AX, 250VAC, IP66

Weathershield Switch, 1-Gang, 20A/16AX, 250VAC, IP66 1-Gang, 20A/16AX, 250VAC, IP66

Item Number: WS229-GY

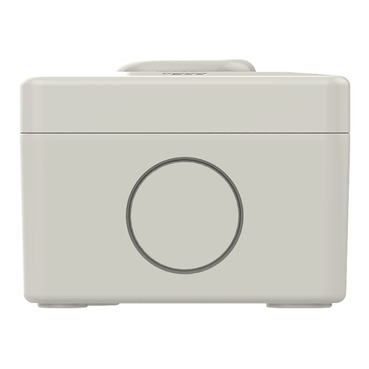

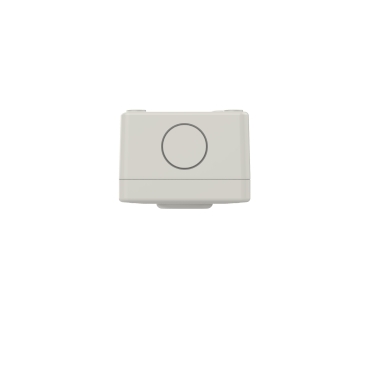

A very compact and versatile weatherproof switch, the WS229. The enclosure has 20mm knock out entries on two sides for surface cabling, and one in the rear for back wiring. A highly durable UV stabilized membrane covers an aperture that accepts any 30 Series mechanism but excludes dust and moisture to IP66. It is available standard with a 20A/ 16AX mechanism or the flexibility to change out the mechanism to allow for other mechanism requirements.

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

  • Series WS
  • Weathershield

Product brand

Clipsal

Surface finish

brilliant

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element

Switch function

  • 1-way
  • 2-way

Device mounting

surface

Local signalling

without

[Ue] rated operational voltage

250 V AC

Rated current

15 A

Marking

without marking

Standards

AS 60529:approval number S/1

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

RoHS exemption information

Yes

Environmental Disclosure

ENVPEP130201EN

Others

Package 1 Bare Product Quantity

1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.0 cm

Package 1 Width

7.0 cm

Package 1 Length

18.0 cm

Package 1 Weight

92.0 g
