Pro Series, Protective box IK10 with lockable lid

Back to Surface Enclosures Home Mounting Accessories Surface Enclosures

Arctic Silver | Pro Series, Protective box IK10 with lockable lid

Pro Series, Protective box IK10 with lockable lid

Item Number: P223H-3A

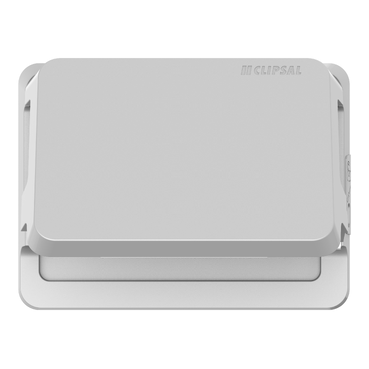

Protect switches and sockets from unwanted fingers with a Pro Series Protective Box with Lockable Lid. Constructed from zinc alloy, the box has an IK rating of 10 and is designed to be surface mounted on a wall. The box can be locked and unlocked with a slotted/ standard screwdriver.

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

Pro Series

Product brand

Clipsal

Product or component type

box

Device application

protection

Colour

wall: aluminium

Market segment

commercial

Physical

Device mounting

wall mounted

Mounting mode

surface mounted

Mounting support

wall box

Installation direction

horizontal

Fixing mode

by screws

Length

150 mm

Depth

45 mm

Height

112 mm

IK degree of protection

IK10

Ambient air temperature for operation

0...45 °C

Material

Material

zinc alloy

Others

Package 1 Bare Product Quantity

1

Cover type

lockable hinged lid

Lock type

1 point locking system

Enclosure type

enclosure for power outlet

Shape

rectangular

Number of mounting holes

6

Tightening torque

0.53 N.m

Targeted country

Australia

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

16.7 cm

Package 1 Width

10.5 cm

Package 1 Length

13.0 cm

Package 1 Weight

672.0 g
