socket swt 2xsgle d/horz grid

Power Outlet, Double Socket, Rocker Switched, 250V AC 10A - with Blue LED

Catalogue Number: M8015LH2
socket swt 2xsgle d/horz grid
Retail
$87.07
RRP (Inc. GST)
Colour White Electric (WE)
  • White Electric 1 PCE

Specifications

hide show
Product brand
Clipsal
Range of product
PDL 800 Modena Series
Control type
ON/OFF button
Number of gangs
2 gangs
Pin number
3
Number of power socket outlets
2
Actuator
  • rocker
  • switch
    • Mounting position
      horizontal
      Local signalling
      indicator light
      [Ue] rated operational voltage
      250 V AC
      [In] rated current
      10 A
      Depth
      9 mm
      Length
      124 mm
      Width
      85 mm
      Unit Type of Package 1
      PCE
      Number of Units in Package 1
      1
      Package 1 Weight
      191.8 g
      Package 1 Height
      30 mm
      Package 1 width
      87 mm
      Package 1 Length
      215 mm
      EU RoHS Directive
      Compliant
      Mercury free
      Yes
      RoHS exemption information
      Yes
      China RoHS Regulation
      Product out of China RoHS scope. Substance declaration for your information

      Documents & downloads

      hide show
      Filter items
      • All

      • Product Brochures

      • Technical Data Catalogues

      • Installation Instruction

      • Specifications

      • Certificates (MSDS)

      Frequently Asked Questions

      hide show

      What is the part number for the wall box for the Modena outlet - M8015LV2?

      The part number for the wall box for the Modena outlet - M8015LV2 is - 157/2

      For further information , visit link below:-
      https://www.clipsal.com/Trade/search-results?q=157/2
      User-added image

      Is the M8015LV2 a complete part?

      Yes, this is a complete unit.

      Some of the key features are:
      • Blue LED switch and outlet indicators
      • Classic sophisticated curved surround

      For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=M8015LV2



      What is the part number of mounting accessories suitable for M8025LV2?

      Mounting accessories suitable for M8025LV2 are :

      800FB2V :
      Metal Mounting Bracket for Double Vertical Grid Plates
      Dimensions Height: 148mm Width: 147.5mm Depth: 38mm
      Mounting Centre: 84mm x 47mm apart
      Aperture Size: 76mm x 102mm
      Note: Mounting centres are recessed
      For further information, please visit: https://www.clipsal.com/Trade/Products/ProductDetail?catno=800FB2V

      147/2:
      Metal Wall Box for Double Vertical Grid Plates
      Dimensions Height: 116mm Width: 98mm Depth: 40mm
      Mounting Centre: 84mm x 46mm apart
      Notes: The wall box needs to be recessed by 10mm
      For further information, please visit https://updates.clipsal.com/ClipsalOnline/Files/Brochures/A0000264.pdf



      What is the dimension of M8025LV2, quad socket outlet , 250V AC, 10A with blue LED indicators?

      The dimension of M8025LV2, quad socket outlet , 250V AC, 10A with blue LED indicators is 133mm(H) 124mm(W). Plate thickness is 9mm.

      For further information, please visit: https://www.clipsal.com/Trade/Products/ProductDetail?catno=M8025LV2
      User-added image


      What is the part no for the cover to suit M8025L?

      The part no is M8000HC-xx

      Please see the following link for further details
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=M8000HC

      User-added image

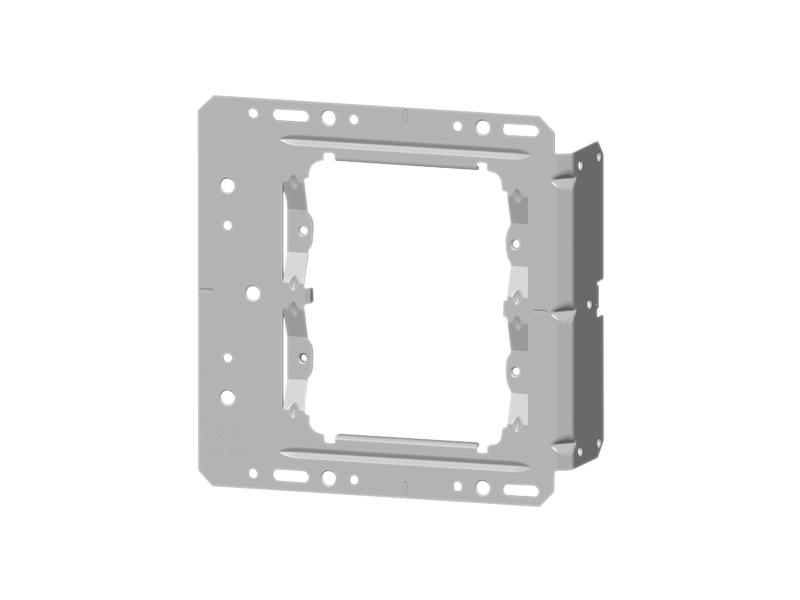

      What is the part number for a mounting bracket for the M8080H2?

      The part number for a mounting bracket for the M8080H2 is - 800FB2H

      For further information , visit link below:-
      https://www.clipsal.com/Trade/search-results?q=800FB2H
      User-added image

      What is the part number of the mounting flange to suit Modena M8025L, auto-switched double socket outlet?

      449CSD is the part number of the mounting flange suitable for M8025L.

      For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=449CSD
