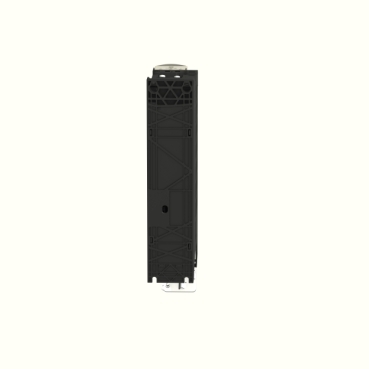

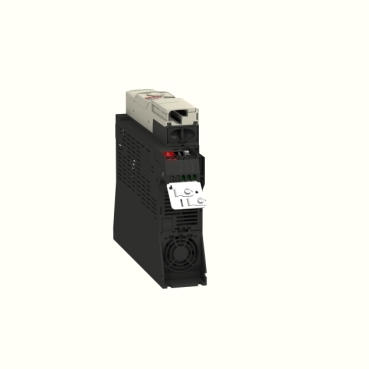

Altivar 32, 400V, 4 Kw, Variable Speed Drives

Product Dimensions

Width icon

Width60 mm

Height icon

Height325 mm

Depth icon

Depth245 mm

See full specifications

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Altivar 32

Product or component type

variable speed drive

Product destination

  • asynchronous motors
  • synchronous motors
    • Warranty

      18 months

      Physical

      Function available

      -

      Local signalling

    • 1 LED red for drive voltage
    • 1 LED green for CANopen run
    • 1 LED red for CANopen error
    • 1 LED red for drive fault
      • Supply

        internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection

        Protection type

      • input phase breaks: drive
      • overcurrent between output phases and earth: drive
      • overheating protection: drive
      • short-circuit between motor phases: drive
      • thermal protection: drive
        • Communication port protocol

        • Modbus
        • CANopen
          • Connector type

            1 RJ45 (on front face) for Modbus/CANopen

            Width

            60 mm

            Height

            325 mm

            Depth

            245 mm

            Net weight

            3 kg

            Standards

          • EN/IEC 61800-3
          • EN 61800-3 environments 2 category C2
          • EN 61800-3 environments 1 category C2
          • EN 55011 class A group 1
          • EN/IEC 61800-5-1
            • Product certifications

            • NOM 117
            • C-Tick
            • GOST
            • UL
            • CSA
              • Marking

                CE

                IP degree of protection

                IP20 conforming to EN/IEC 61800-5-1

                Relative humidity

              • 5-95 % without condensation conforming to IEC 60068-2-3
              • 5-95 % without dripping water conforming to IEC 60068-2-3
                • Ambient air temperature for operation

                • -10-50 °C without derating
                • 50-60 °C with derating factor
                  • Ambient air temperature for storage

                    -25-70 °C

                    Others

                    Product specific application

                    complex machines

                    Assembly style

                    with heat sink

                    Component name

                    ATV32

                    EMC filter

                    Class C2 EMC filter integrated

                    Network number of phases

                    3 phases

                    [Us] rated supply voltage

                    380...500 V - 15...10 %

                    Supply voltage limits

                    323-550 V

                    Supply frequency

                    50...60 Hz - 5...5 %

                    Network frequency

                    47.5...63 Hz

                    Motor power kW

                    4 kW at 380...480 V

                    Motor power hp

                    5 hp at 380...480 V

                    Line current

                  • 10.5 A for 500 V 3 phases 4 kW / 5 hp
                  • 13.7 A for 380 V 3 phases 4 kW / 5 hp
                    • Apparent power

                      9.1 kVA at 500 V 3 phases 4 kW / 5 hp

                      Prospective line Isc

                      5 kA for 3 phases

                      Nominal output current

                      9.5 A at 4 kHz 500 V 4 kW / 5 hp

                      Maximum transient current

                      14.3 A for 60 s 4 kW / 5 hp

                      Output frequency

                      5.0E-4-0.599 kHz

                      Nominal switching frequency

                      4 kHz

                      Switching frequency

                      2...16 kHz adjustable

                      Speed range

                      1-100 for asynchronous motor in open-loop mode

                      Speed accuracy

                      +/- 10 % of nominal slip 0.2 Tn to Tn

                      Torque accuracy

                      +/- 15 %

                      Transient overtorque

                      170-200 %

                      Braking torque

                      <= 170 % with braking resistor

                      Asynchronous motor control profile

                    • voltage/frequency ratio - Energy Saving, quadratic U/f
                    • flux vector control without sensor, standard
                    • voltage/frequency ratio, 5 points
                    • flux vector control without sensor - Energy Saving, NoLoad law
                    • voltage/frequency ratio, 2 points
                      • Synchronous motor control profile

                        vector control without sensor

                        Regulation loop

                        adjustable PID regulator

                        Motor slip compensation

                      • adjustable 0...300 %
                      • automatic whatever the load
                      • not available in voltage/frequency ratio (2 or 5 points)
                        • Output voltage

                          <= power supply voltage

                          Noise level

                          45 dB conforming to 86/188/EEC

                          Insulation

                          electrical between power and control

                          Electrical connection

                        • screw terminal, clamping capacity: 0.5...1.5 mm², AWG 18...AWG 14 (control)
                        • removable screw terminals, clamping capacity: 1.5...2.5 mm², AWG 14...AWG 12 (motor/braking resistor)
                        • screw terminal, clamping capacity: 2.5...4 mm², AWG 12...AWG 10 (power supply)
                          • Tightening torque

                          • 0.5 N.m, 4.4 lb/ft (control)
                          • 0.7 N.m, 7.1 lb/ft (motor/braking resistor)
                          • 0.6 N.m, 5.3 lb/ft (power supply)
                            • Analogue input number

                              3

                              Analogue input type

                            • AI1 voltage: 0...10 V DC, impedance: 30000 Ohm, resolution 10 bits
                            • AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30000 Ohm, resolution 10 bits
                            • AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits
                              • Sampling duration

                              • 2 ms (AI1, AI2, AI3) - analog input(s)
                              • 2 ms (AO1) - analog input(s)
                                • Response time

                                • LI1...LI6 8 ms, tolerance +/- 0.7 ms for logic output(s)
                                • R1A, R1B, R1C 2 ms for relay output(s)
                                • R2A, R2C 2 ms for relay output(s)
                                  • Accuracy

                                  • +/- 0.2 % (AI1, AI2, AI3) for a temperature of -10...60 °C
                                  • +/- 0.5 % (AI1, AI2, AI3) for a temperature of 25 °C
                                  • +/- 1 % (AO1) for a temperature of 25 °C
                                  • +/- 2 % (AO1) for a temperature of -10...60 °C
                                    • Linearity error

                                    • +/- 0.2...0.5 % of maximum value (AI1, AI2, AI3)
                                    • +/- 0.3 % (AO1)
                                      • Analogue output number

                                        1

                                        Analogue output type

                                      • AO1 software-configurable current 0...20 mA, impedance: 800 Ohm, resolution 10 bits
                                      • AO1 software-configurable voltage 0...10 V, impedance: 470 Ohm, resolution 10 bits
                                        • Discrete output number

                                          3

                                          Discrete output type

                                        • configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
                                        • configurable relay logic: (R2A, R2B) NO - 100000 cycles
                                        • logic: (LO)
                                          • Minimum switching current

                                            5 mA at 24 V DC for configurable relay logic

                                            Maximum switching current

                                          • R1: 3 A at 250 V AC resistive load, cos phi = 1
                                          • R1: 4 A at 30 V DC resistive load, cos phi = 1
                                          • R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4
                                          • R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4
                                          • R2: 5 A at 250 V AC resistive load, cos phi = 1
                                          • R2: 5 A at 30 V DC resistive load, cos phi = 1
                                            • Discrete input number

                                              7

                                              Discrete input type

                                            • programmable (sink/source) (LI1...LI4)24...30 V DC, with level 1 PLC
                                            • programmable as pulse input 20 kpps (LI5)24...30 V DC, with level 1 PLC
                                            • switch-configurable PTC probe (LI6)24...30 V DC
                                            • safe torque off (STO)24...30 V DC - 1500 Ohm
                                              • Discrete input logic

                                              • negative logic (sink) (LI1...LI6), > 19 V (state 0), < 13 V (state 1)
                                              • positive logic (source) (LI1...LI6), < 5 V (state 0), > 11 V (state 1)
                                                • Acceleration and deceleration ramps

                                                • U
                                                • CUS
                                                • deceleration ramp adaptation
                                                • linear
                                                • S
                                                • ramp switching
                                                • deceleration ramp automatic stop DC injection
                                                  • Braking to standstill

                                                    by DC injection

                                                    Physical interface

                                                    2-wire RS 485 for Modbus

                                                    Transmission frame

                                                    RTU for Modbus

                                                    Type of polarization

                                                    no impedance for Modbus

                                                    Number of addresses

                                                  • 1-127 for CANopen
                                                  • 1-247 for Modbus
                                                    • Method of access

                                                      slave CANopen

                                                      Electromagnetic compatibility

                                                    • 1.2/50 µs - 8/20 µs surge immunity test, level 3 conforming to IEC 61000-4-5
                                                    • conducted radio-frequency immunity test, level 3 conforming to IEC 61000-4-6
                                                    • electrical fast transient/burst immunity test, level 4 conforming to IEC 61000-4-4
                                                    • electrostatic discharge immunity test, level 3 conforming to IEC 61000-4-2
                                                    • radiated radio-frequency electromagnetic field immunity test, level 3 conforming to IEC 61000-4-3
                                                    • voltage dips and interruptions immunity test conforming to IEC 61000-4-11
                                                      • Option card

                                                      • communication card for CANopen daisy chain
                                                      • communication card for CANopen open style
                                                      • communication card for DeviceNet
                                                      • communication card for Ethernet/IP
                                                      • communication card for Profibus DP V1
                                                        • Functionality

                                                          mid

                                                          Specific application

                                                          other applications

                                                          Pollution degree

                                                          2 conforming to EN/IEC 61800-5-1

                                                          Vibration resistance

                                                        • 1 gn (f = 13-200 Hz) conforming to EN/IEC 60068-2-6
                                                        • 1.5 mm peak to peak (f = 3-13 Hz) conforming to EN/IEC 60068-2-6
                                                          • Shock resistance

                                                            15 gn for 11 ms conforming to EN/IEC 60068-2-27

                                                            Operating altitude

                                                          • <= 1000 m without derating
                                                          • 1000...3000 m with current derating 1 % per 100 m
                                                            • Operating position

                                                              vertical +/- 10 degree

                                                              Package 1 Weight

                                                              2.9 kg

                                                              Package 1 Height

                                                              1 dm

                                                              Package 1 width

                                                              2.75 dm

                                                              Package 1 Length

                                                              3.25 dm
                                                              Show all specifications
