Mod. Power Supply 12V 2A

Back to Phaseo Switch Mode Power Supplies Home Phaseo ABL Phaseo Switch Mode Power Supplies

Mod. Power Supply 12V 2A

Mod. Power Supply 12V 2A

Item Number: ABL8MEM12020

Retail
$538.45
RRP (Inc. GST)
Where To Buy

Product Dimensions

Width icon

Width54 mm

Height icon

Height100 mm

Depth icon

Depth59 mm

See full specifications

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Modicon Power Supply

Product or component type

power supply

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Rated power in W

25 W

Inrush current

20 A

[Ue] rated operational voltage

12...15 V DC 0.5

Connections - terminals

  • screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection
  • screw type terminals: 4 x 0.14...4 x 2.5 mm², (AWG 26...AWG 14) for output connection

      • Depth

      59 mm

      Height

      100 mm

      Width

      54 mm

      Net weight

      0.195 kg

      Marking

      CE

      Mounting support

    • 35 x 7.5 mm symmetrical DIN rail
    • 35 x 15 mm symmetrical DIN rail
    • panel 2 screws, diameter : 4 mm

        • Standards

      • UL 508
      • CSA C22.2 No 60950-1

          • Product certifications

        • EAC
        • RCM
        • KC
        • TUV 60950-1
        • cCSAus
        • CSA 22-2 No 950
        • cULus 508

            • Environmental characteristic

          • EMC conforming to EN 55022 class B
          • EMC conforming to EN 61000-6-3
          • EMC conforming to EN/IEC 61000-6-2
          • EMC conforming to EN/IEC 61204-3
          • safety conforming to EN/IEC 60950-1
          • safety conforming to SELV

              • IP degree of protection

              IP20 conforming to EN/IEC 60529

              Ambient air temperature for operation

            • -25-55 °C (without)
            • 55-70 °C (with derating factor)

                • Ambient air temperature for storage

                -40-70 °C

                Relative humidity

              • 0-90 % during operation
              • 0-95 % in storage

                  • REACh Regulation

                  Reference contains Substances of Very High Concern above the threshold

                  EU RoHS Directive

                  Pro-active compliance (Product out of EU RoHS legal scope)

                  Mercury free

                  Yes

                  RoHS exemption information

                  Yes

                  China RoHS Regulation

                  X

                  Environmental Disclosure

                  ENVPEP130206EN

                  Circularity Profile

                  ENVEOLI130205EN

                  Others

                  Power supply type

                  regulated switch mode

                  Input voltage

                • 100...240 V AC phase to phase, terminal(s): L1-L2
                • 100...240 V AC single phase, terminal(s): N-L1
                • 120...250 V DC

                    • Input voltage limits

                    85...264 V AC

                    Output voltage

                    12...15 V DC

                    Power supply output current

                    2.1 A

                    Input protection type

                    integrated fuse (not interchangeable)

                    Efficiency

                    80 %

                    Output voltage limits

                    11.4...15 V adjustable

                    Power dissipation in W

                    6.2 W

                    Current consumption

                  • 0.35 A 240 V AC
                  • 0.6 A 100 V AC

                      • Residual ripple

                      250 mV

                      Output protection type

                      against short-circuits

                      Status LED

                      1 LED (green)output voltage:

                      Output coupling

                    • parallel
                    • series

                        • Operating position

                        vertical

                        Operating altitude

                        2000 m

                        Dielectric strength

                        3000 V between input and output

                        Compatibility code

                        ABL8M

                        Package 1 Weight

                        0.227 kg

                        Package 1 Height

                        0.75 dm

                        Package 1 width

                        1 dm

                        Package 1 Length

                        0.7 dm

                        PVC free

                        Yes
                        Show all specifications

                        Documents & downloads

                        hide show
                        Filter items

                        • All

                        • CAD Files and Packs

                        • Product Brochures

                        • Technical Data Catalogues

                        • Installation Instruction

                        • End of Life Manual

                        • Product Environmental

                        • Certificates (MSDS)

                        • eTechPub

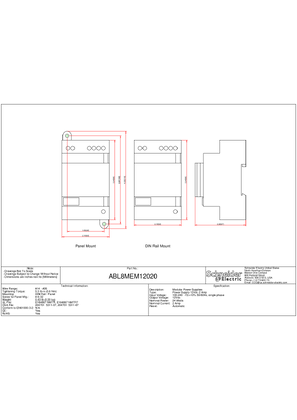

                        ABL8MEM12020_CAD_DOC

                        ABL8MEM12020_CAD_DOC

                        ZIP

                        CAD file (on Thomasnet) for ABL8MEM12020: regulated SMPS - 1 or 2-phase - 100..240 V AC - 12 V - 2 A

                        CAD file (on Thomasnet) for ABL8MEM12020: regulated SMPS - 1 or 2-phase - 100..240 V AC - 12 V - 2 A

                        ZIP

                        Modular Power Supply 20, 25, 30W

                        Modular Power Supply 20, 25, 30W

                        ZIP

                        Modular Power Supply 20, 25, 30W

                        Modular Power Supply 20, 25, 30W

                        ZIP

                        Modular Power Supply 20, 25, 30W

                        Modular Power Supply 20, 25, 30W

                        ZIP

                        Alimentations & Transformateurs

                        Alimentations & Transformateurs

                        1.9 MB PDF

                        Innovative energy-efficient solutions to power containerships owned by Hamburg Sud

                        Innovative energy-efficient solutions to power containerships owned by Hamburg Sud

                        ZIP

                        Innovative energy-efficient solutions to power containerships owned by Hamburg Sud

                        Innovative energy-efficient solutions to power containerships owned by Hamburg Sud

                        23.7 MB PDF

                        Phaseo Power Supplies Brochure

                        Phaseo Power Supplies Brochure

                        5.5 MB pdf

                        Power Supplies and Transformers

                        Power Supplies and Transformers

                        1.7 MB PDF

                        Recommended Cybersecurity Best Practices

                        Recommended Cybersecurity Best Practices

                        214 KB PDF

                        Catalog Modicon Power Supply for industrial use - rail mounting English July 2020

                        Catalog Modicon Power Supply for industrial use - rail mounting English July 2020

                        7.7 MB PDF

                        Digest 178 Catalog 23: Relays and Timers

                        Digest 178 Catalog 23: Relays and Timers

                        6 MB PDF

                        Modicon - Fontes de Alimentação | Catálogo

                        Modicon - Fontes de Alimentação | Catálogo

                        7.7 MB PDF

                        Phaseo ABL7 Power Supplies Catalog

                        Phaseo ABL7 Power Supplies Catalog

                        1.2 MB pdf

                        ABL8MEM...Regulated swich mode power supplies Phaseo Modular

                        ABL8MEM...Regulated swich mode power supplies Phaseo Modular

                        ZIP

                        ABL8MEM.... Regulated switch mode power supply, Product End-of-Life Instructions

                        ABL8MEM.... Regulated switch mode power supply, Product End-of-Life Instructions

                        ZIP

                        ABL8 MEM.... Regulated switch mode power supply, Product Environmental Profile

                        ABL8 MEM.... Regulated switch mode power supply, Product Environmental Profile

                        ZIP

                        UL Certificate E164867 NMTR - ABL8MEM and ABL8REM

                        UL Certificate E164867 NMTR - ABL8MEM and ABL8REM

                        190.9 KB PDF

                        EPDS for Phaseo ABL8M, ABL8R, ABL8W (english)

                        EPDS for Phaseo ABL8M, ABL8R, ABL8W (english)

                        550.9 KB ZIP

                        Frequently Asked Questions

                        hide show

                        What is the dimensions for ABL8MEM12020

                         Dimensions 59mm x 100mm x 60mm

                        What is the part code for a power supply with a 12V DC output?

                        ABL8MEM12020 is 12V DC @ 2A

                        What are the dimensions for ABL8REM24050

                         Dimensions 54 wide x 120 high x 120mm deep to the din rail face

                        What is the replacement for ABL1REM12050?

                        Nearest eqivalent will be part number ABL1RPM12083
                        For reference please follow the below link,
                        https://www.schneider-electric.com.au/en/product-range-selector/782-phaseo-abl1/?p_url=http%3A%2F%2Fwww.ops-ecat.schneider-electric.com%2Fecat%2Fbrowse.do%3Fconf%3Dnull%26el_typ%3Dproduct%26range_id%3D782%26prd_id%3DABL1RPM12083%26scp_id%3DAU_en



                        Is part code ABL7RE24025 still available in NZ

                         Part code ABL7RE24025 discontinued 30/03/2008.  You can use a ABL8REM24050

                        What power supply would be the best replacement for the Momentum 170CPS11100?

                        The best replacement for the Momentum 170CPS11100 would be the Phaseo ABL8MEM24012.
