Modular Power Supply 24V 2,5A

Back to Phaseo Switch Mode Power Supplies Home Phaseo ABL Phaseo Switch Mode Power Supplies

Modular Power Supply 24V 2,5A

Modular Power Supply 24V 2,5A

Item Number: ABL7RM24025

Where To Buy

Product Dimensions

Width icon

Width74 mm

Height icon

Height100 mm

Depth icon

Depth59 mm

See full specifications

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Sustainable offer status

Green Premium product

Warranty

18 months

Range of product

Modicon Power Supply

Product or component type

power supply

Physical

Inrush current

90 A

Provided equipment

power factor correction filter conforming to IEC 61000-3-2

Connections - terminals

  • screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection
  • screw type terminals: 4 x 0.14...4 x 2.5 mm², (AWG 26...AWG 14) for output connection

Depth

59 mm

Height

100 mm

Width

74 mm

Net weight

0.255 kg

Marking

CE

Mounting support

  • 35 x 7.5 mm symmetrical DIN rail
  • panel 2 screws, diameter : 4 mm
  • 35 x 15 mm symmetrical DIN rail

Supply

  • SELV conforming to EN/IEC 60950-1
  • SELV conforming to EN/IEC 60204-1
  • SELV conforming to IEC 60364-4-41

Standards

  • CSA C22.2 No 60950-1
  • UL 508
  • EN/IEC 62368-1

Product certifications

  • EAC
  • cULus 508
  • TUV 60950-1
  • RCM
  • KC

Environmental characteristic

  • EMC conforming to EN 55022 class B
  • EMC conforming to EN 61000-6-3
  • EMC conforming to EN/IEC 61000-6-2
  • EMC conforming to EN/IEC 61204-3
  • safety conforming to EN/IEC 60950-1

IP degree of protection

IP20 conforming to EN/IEC 60529

Ambient air temperature for operation

  • -25...55 °C without derating mounting position A < 2000="">
  • 55...70 °C with derating factor mounting position A < 2000="">

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

X

Environmental Disclosure

ENVPEP1403018EN

Circularity Profile

ENVEOLI1403018EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rated power in W

60 W

Others

Input voltage limits

85...264 V AC

Input protection type

integrated fuse (not interchangeable)

Power factor

0.5 at 24 V DC

Efficiency

84 %

Output voltage limits

22.2...28.8 V adjustable

Power dissipation in W

11.4 W

Current consumption

0.7 A 240 V AC

Residual ripple

200 mV

Output protection type

  • against undervoltage, protection technology: tripping if U < 19="">
  • against short-circuits

Status LED

1 LED (green)output voltage

Output coupling

  • series
  • parallel

Operating position

vertical

Dielectric strength

3000 V with between input and output

Operating altitude

2000 m

Compatibility code

ABL7R

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

318.0 g

Package 1 Height

6.8 cm

Package 1 width

8.3 cm

Package 1 Length

10.8 cm

Unit Type of Package 2

S02

Number of Units in Package 2

20

Package 2 Weight

6.875 kg

Package 2 Height

15 cm

Package 2 width

30 cm

Package 2 Length

40 cm

Unit Type of Package 3

P06

Number of Units in Package 3

320

Package 3 Weight

118.5 kg

Package 3 Height

77 cm

Package 3 width

60 cm

Package 3 Length

80 cm

PVC free

Yes

Power supply type

regulated switch mode

Input voltage

  • 100...240 V AC phase to phase, terminal(s): L1-L2
  • 100...240 V AC single phase, terminal(s): N-L1

Output voltage

24 V DC

Power supply output current

2.5 A

Anti-harmonic filter

low frequency harmonic currents
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • End of Life Manual

  • Product Environmental

  • Technical Drawing

  • eTechPub

Recommended Cybersecurity Best Practices
PDF

Recommended Cybersecurity Best Practices

DATE

03 Feb 2022

VERSION

2

DOWNLOAD

(214 KB)
Innovative energy-efficient solutions to power containerships owned by Hamburg Sud
ZIP

Innovative energy-efficient solutions to power containerships owned by Hamburg Sud

DATE

19 Jan 2022

VERSION

1

DOWNLOAD
Alimentations & Transformateurs
PDF

Alimentations & Transformateurs

DATE

07 Apr 2018

VERSION

1

DOWNLOAD

(1.9 MB)
Power Supplies and Transformers
PDF

Power Supplies and Transformers

DATE

22 Dec 2009

VERSION

1

DOWNLOAD

(1.7 MB)
ABL7RM24025_CAD_DOC
ZIP

ABL7RM24025_CAD_DOC

DATE

16 Jul 2021

VERSION

1

DOWNLOAD
ABL7RM24025_CAD_SE
ZIP

ABL7RM24025_CAD_SE

DATE

03 Nov 2020

VERSION

1

DOWNLOAD
Digest Catalog 23: Relays and Timers (October 2020)
PDF

Digest Catalog 23: Relays and Timers (October 2020)

DATE

31 Jul 2021

VERSION

1

DOWNLOAD

(4.4 MB)
Phaseo ABL7 Power Supplies Catalog
pdf

Phaseo ABL7 Power Supplies Catalog

DATE

29 Jun 2021

VERSION

1

DOWNLOAD

(1.2 MB)
Operátorské panely Magelis GTO
pdf

Operátorské panely Magelis GTO

DATE

19 Nov 2020

VERSION

1

DOWNLOAD

(2.5 MB)
Modicon - Fontes de Alimentação | Catálogo
PDF

Modicon - Fontes de Alimentação | Catálogo

DATE

03 Sep 2020

VERSION

1

DOWNLOAD

(7.7 MB)
Catalog Modicon Power Supply for industrial use - rail mounting English July 2020
PDF

Catalog Modicon Power Supply for industrial use - rail mounting English July 2020

DATE

06 Jul 2020

VERSION

4

DOWNLOAD

(7.7 MB)
ABL7RM... Switch mode modular power supplies
ZIP

ABL7RM... Switch mode modular power supplies

DATE

16 Dec 2020

VERSION

5

DOWNLOAD

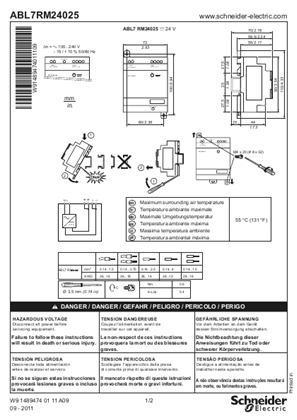

ABL7RM24025 Instruction Sheet
pdf

ABL7RM24025 Instruction Sheet

DATE

30 Jun 2020

VERSION

1

DOWNLOAD

(318 KB)
ABL7RM24025 MODULAR POWER SUPPLY 24V 2,5A, Product End-of-Life Instructions
ZIP

ABL7RM24025 MODULAR POWER SUPPLY 24V 2,5A, Product End-of-Life Instructions

DATE

04 Jul 2014

VERSION

1

DOWNLOAD

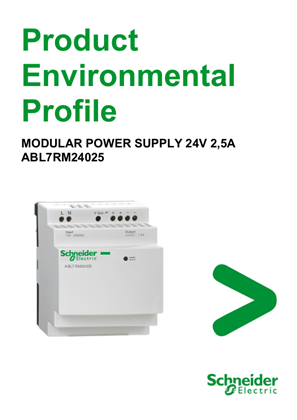

ABL7RM24025 MODULAR POWER SUPPLY 24V 2,5A, Product Environmental Profile
