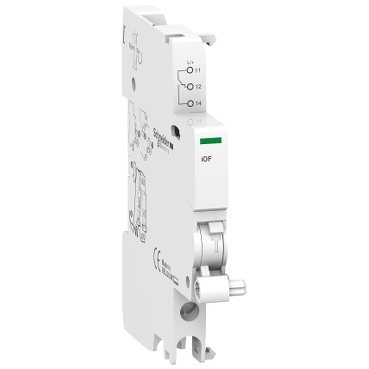

Acti 9 Auxiliary Contact Iof, 1 Change Over, 240-415VAC, 24-130VDC

Acti 9 Auxiliary Contact Iof, 1 Change Over, 240-415VAC, 24-130VDC

Acti 9 Auxiliary Contact Iof, 1 Change Over, 240-415VAC, 24-130VDC

Item Number: A9A26924

Retail
$212.19
RRP (Inc. GST)

Product Dimensions

Width icon

Width9 mm

Height icon

Height86 mm

Depth icon

Depth73 mm

See full specifications

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti 9

Range of product

  • iID
  • ARA
  • iSW-NA
  • RCA
  • iSW 40...125
  • iC60
  • iDPN Vigi
    • Product or component type

      OC contact

      Product compatibility

      single terminal

      Market segment

    • small commercial
    • residential
      • Sustainable offer status

        Green Premium product

        Warranty

        18 months

        Physical

        [In] rated current

      • 1-1 A at 130 V DC
      • 1.5-1.5 A at 60 V DC
      • 2-2 A at 48 V DC
      • 6-6 A at 24 V DC
      • 3-3 A at 415 V AC - 50/60 Hz
      • 6-6 A at 240 V AC - 50/60 Hz
        • Range compatibility

        • Acti 9 iSW-NA
        • Acti 9 iC60
        • Acti 9 iC65
        • Acti 9 iC60 RCBO
        • Acti 9 iID
        • Acti 9 ARA
        • Acti 9 RCA
        • Acti 9 iDPN (China version)
        • Acti 9 iDPN Vigi
        • Acti 9 iSW
        • Acti 9 iC40
          • Mounting mode

            clip-on

            Mounting support

            DIN rail

            Height

            86 mm

            Width

            9 mm

            Depth

            73 mm

            Net weight

            32 g

            Connections - terminals

          • screw clamp terminal (bottom) 1 cable(s) 1-4 mm² - rigid
          • screw clamp terminal (bottom) 1 cable(s) 0.5-2.5 mm² - flexible
          • screw clamp terminal (bottom) 2 cable(s) 2.5-2.5 mm² - rigid
          • screw clamp terminal (bottom) 2 cable(s) 1.5-1.5 mm² - flexible with ferrule
            • Wire stripping length

              10 mm

              Standards

              EN/IEC 60947-5-1

              IP degree of protection

              IP20 conforming to EN/IEC 60947-5-1

              Ambient air temperature for operation

              -35-70 °C

              Ambient air temperature for storage

              -40-85 °C

              REACh Regulation

              Free of Substances of Very High Concern above the threshold

              REACh free of SVHC

              Yes

              EU RoHS Directive

              Compliant

              Toxic heavy metal free

              Yes

              Mercury free

              Yes

              RoHS exemption information

              Yes

              China RoHS Regulation

               Pro-active China RoHS declaration (out of China RoHS legal scope)

              Environmental Disclosure

              ENVPEP091004EN

              Others

              Device short name

              iOF

              Signal contacts composition

              1 C/O

              9 mm pitches

              1

              [Ui] rated insulation voltage

              500 V

              [Uimp] rated impulse withstand voltage

              4 kV

              Tightening torque

              1-1 N.m

              Compatibility code

              iOF

              Pollution degree

              3 conforming to EN/IEC 60947-5-1

              Tropicalisation

              2 conforming to EN/IEC 60947-5-1

              Package 1 Weight

              0.042 kg

              Package 1 Height

              0.78 dm

              Package 1 width

              0.2 dm

              Package 1 Length

              0.925 dm

              WEEE

              The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
              Show all specifications

              Documents & downloads

              hide show
              Filter items
              • All

              • Product Brochures

              • CAD Files and Packs

              • Technical Data Catalogues

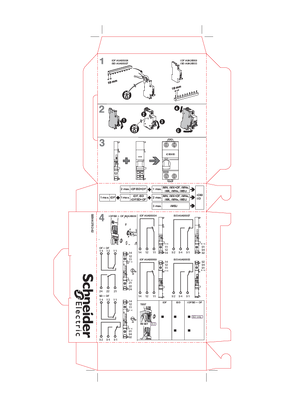

              • Installation Instruction

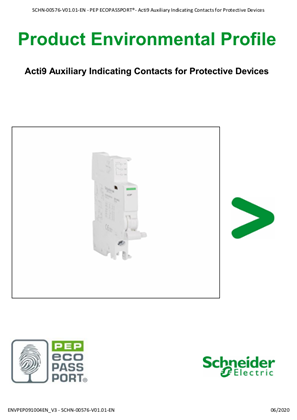

              • Product Environmental

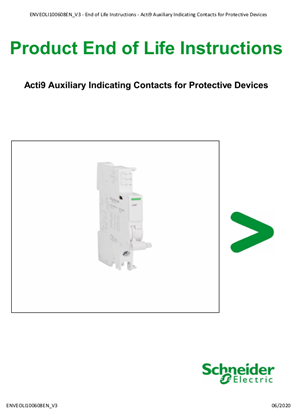

              • End of Life Manual

              • Declaration of Conformity

              Frequently Asked Questions

              hide show

              Are the A9N18359 and A9A26924 compatible?

              The ref A9N18359 is C120 MCB (Multi9 design in the white material).

              The ref A9A26924 is iOF auxiliary (Aciti9 design for iC60 MCB).

              I can confirm that the parts A9N18359 and A9A26924 are not compliant with each other



              will the A9A26929 fit on a C60-DC MCB?

              No, those are designed to fit onto the acti9 AC MCBs for those MCBs use the A9N26929

              What are the codes of the items supplied with the 3 phase EV parking protection kits?

              Parts that should be supplied as follows:

              KITPARKING22-1:
              A9F54440 x 1, MCB, iC60H 4P 40A C Curve
              A9Z51440 x 1, RCD, iIDP 4P 40A 30mA Type B, 400V
              A9A26969 x 2, Under voltage release, iMNX 220 240VAC
              A9F44204 x 1, MCB, iC60N 2P 4A C Curve
              A9R91240 x 1, RCCB, iID 2P 40A 30mA Type Asi
              A9A26924 x 2, Aux contact, iOF 240 415VAC 24 130VDC

              KITPARKING22-2:
              A9F54440 x 2, MCB, iC60H 4P 40A C Curve
              A9Z51440 x 2, RCD, iIDP 4P 40A 30mA Type B, 400V
              A9A26969 x 3, Under voltage release, iMNX 220 240VAC
              A9F44204 x 1, MCB, iC60N 2P 4A C Curve
              A9R91240 x 1, RCCB, iID 2P 40A 30mA Type Asi
              A9A26924 x 4, Aux contact, iOF 240 415VAC 24 130VDC


              What is the code for the Acti9 Padlock?

              The code is A9A26970

              Will a new A9A26948 fit an old MG breaker

              No they don't fit. You will need to replace the old MG MCB with new Acti9 MCB to fit the new Auxiliaries

              Does A9A26976 go with iDPN N VIGI?

              No. Unfortunately it does not and we don't do the terminal Shiels for iDPN N vigi as the screws are small.
