switch 2gang a style s/s

Flush Switch 2 Gang, 250VAC, 10A, Metal Plate Range, A Style, Standard, Vertical

Catalogue Number: A32VA
switch 2gang a style s/s
Colour: White Electric
Colour: Per UOM Std.
  • Black 1 PCE
  • Brown 1 PCE
  • White Electric 1 PCE
Added to cart

Specifications

hide show
Range of product
Metal Plate
Product brand
Clipsal
Device presentation
basic element with full cover plate and grid
Switch function
  • 1-way
  • 2-way
    • Actuator
      rocker
      Number of rocker
      2
      Device mounting
      flush
      Fixing mode
      by screws
      Surface treatment
      stainless steel
      Local signalling
      without
      [Ue] rated operational voltage
      250 V AC
      Rated current
      10 A
      Marking
      without marking
      EU RoHS Directive
      Compliant
      Circularity Profile
      N/A

      Frequently Asked Questions

      hide show

      Is part number 32VA still available in Brown?

      Yes. Part number 32VA -BR is standard part.

      What is part number for 630va transformer?

      The part number for 630va transformer is a part number ABL6TS63U.


      What is part no for mounting block to suit A31VX

      Part no A31VX will fit onto any standard wall box eg 449a

      Will part number A31VX fit onto standard wall box?

      Yes A31VX will fit onto standard wall boxes.

      for further information on this part please refer to https://www.clipsal.com/Trade/Products/ProductDetail?catno=A31VX

      User-added image

      What is the part number for a 32VAC batten holder?

      There are no batten holders for 32v


      What is the part number for a 3 pole contactor , 25amp 32VAC coil?

      The part number for a 3 pole contactor , 25amp 32VAC coil is - LC1D25C7

      For further information , visit link below:-
      https://www.schneider-electric.com.au/en/search/LC1D25C7


      What is the code for an RSL Relay with 32VAC control

      We have no plug in relay options with 32V coil voltage.

      What is the dimension of 31VA, 32VA, 33VA, 34VA, 35V and 36VA standard sized vertical flush switches?

      31VA, 32VA,  33VA,  34VA,  35VA and 36VA standard sized vertical flush switches have a dimension of 115mm(length) x 73mm(width) x 11mm(depth). Mounting centres are 84mm apart. The switches are rated to 250V AC, 10A, 1 way/ 2 way.
      For further information, please visit https://updates.clipsal.com/ClipsalOnline/Files/Brochures/A0000108.pdf



      What is part number for 40amp 4 pole , 2 N/C & 2 N/O contacts with 32VAC coil?

      Part number for 40amp contactor , 4 pole , 2 N/C & 2 N/O contacts is - LC1D40008

      For more information regarding this contactor , go to link below:-
      https://www.schneider-electric.com.au/en/search/LC1D40008

      User-added image

      Getting alarm A324 on LXM32 drive

      Issue:
      Getting alarm A324 on the LXM32 drive

      Product Line:
      Lexium 32
      LXM32

      Resolution:
      A324 is an error during the homing sequence of the LXM32
      Possible reasons are a bad insulation on the limit switch wire, EMC interference caused by running a power cable next to the limit switch wire, a reference switch not enabled, low or no voltage on the reference or limit switches or multiple positive/negative/reference switches active

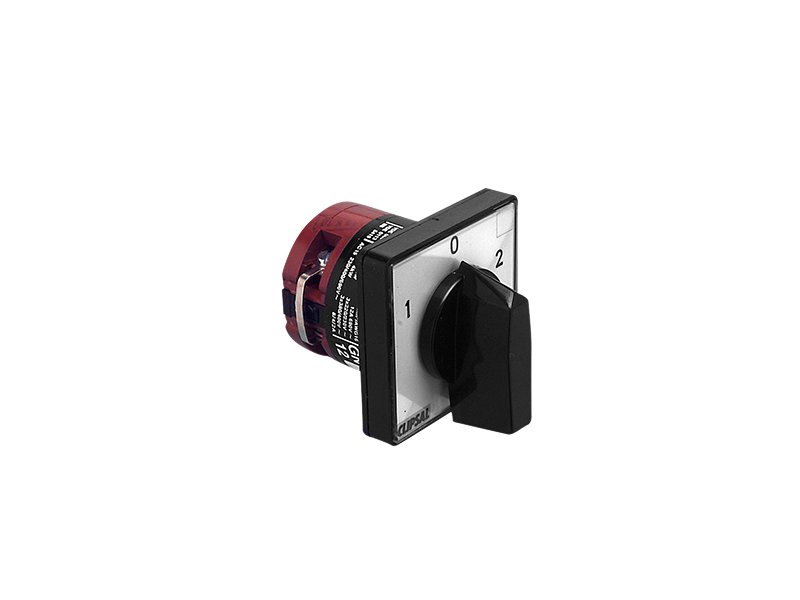

      Is there a 3 position marked "1, 0, 2" 2 pole cam switch 16A available?

      Yes, the part number for a 3 position marked "1, 0, 2" 2 pole cam switch 16A is a 7GN12/52/U.
      Brief :

       Rotary Cam Switches and Accessories, Rated Thermal Current (Ith) = 12A AC23A rating - 6kW at 415V. Rated Insulation Voltage Ui = 480V. Maximum 16A Fuse (gG/gL) for 3kA short circuit protection, 2 Pole 12A 60° changeover switch with Off marked 1-O-2.

      Some of the key features are:

      • Front mounting
      • AC23A Rating
      • Changeover switch with OFF marked 1-O-2
      For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=7GN12/52/U​







      A320 error on ILE2 integrated motor

      Issue:
      A320 error on ILE2 integrated motor

      Product Line:
      ILE motor

      Resolution:
      Possible reasons of the A320 error are:
      1. Higher amount of friction in application that is on this motor - check the mechanical if there is some blockage, check bearing.
      2. Gearbox attached on the motor has higher friction because it lost lubrication
      3. Motors bearings are damaged - wear out.
      4. Tuning of the drive to an application has not been done.
      5. Any change of inertia in the system (higher).
      If simply powering the motor without even sending any run command to it shows error A320, then motor has to be repaired or replaced.

      How do I contact the Schneider Software Support team and what industrial software are supported?

      Schneider Electric has now become the distributor of AVEVA Software in Australia and Newzeland.

      The Portfolio covers Citect SCADA, Wonderware and Clear SCADA products for customers with primary and standard support agreements.

      The new software support team has got decades of experience with industrial software and we look forward to receive your technical enquiries.

      Contact us on:
      Phone: 13 73 28 (13 SEAU)
      Email: software.supportpz@schneider-electric.com
