Switch Mechanism Assembly 32A 250V

Zen White | Switch Mechanism Assembly 32A 250V

Switch Mechanism Assembly 32A 250V

Item Number: 60R32-ZW

Retail
$54.09
RRP (Inc. GST)
Colour Zen White (ZW)
  • Zen White 1 PCE
  • Arctic Silver 1 PCE
  • Charcoal 1 PCE
  • Zen Black 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

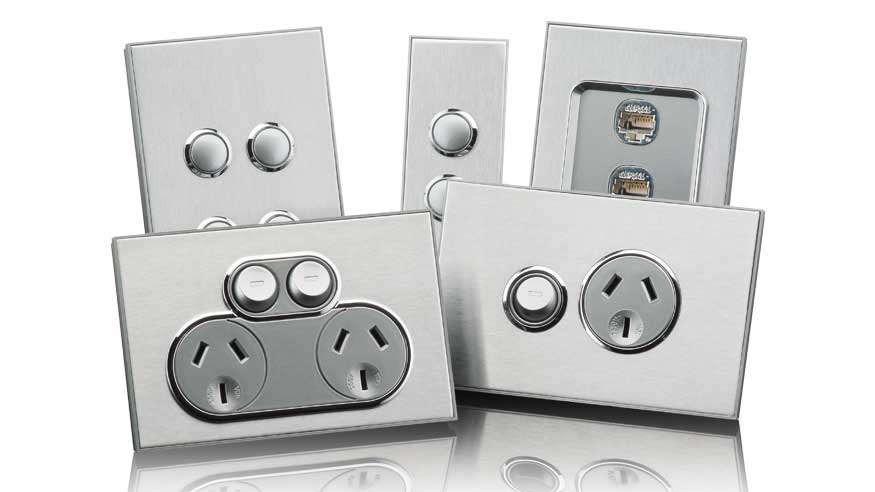

Clipsal Saturn Horizon Silver Group shot
Saturn 4000 Espresso Black 4025-EB
Clipsal Saturn 4000 Ocean Mist, 4025-OM
Saturn 4000 Pure White 4025-PW

Specifications

Design

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP111024EN

Circularity Profile

ENVEOLI110713EN

Others

Package 1 Weight

0.03 kg

Package 1 Height

1 mm

Package 1 width

1 mm

Package 1 Length

1 mm
Show all specifications

Frequently Asked Questions

hide show

What is the mechanism that goes into 4025XUA

60R16 which is rated at 16 amps and used for general lighting etc.
60r32 which is rated at 32 amps and can be used for stoves and ovens.

Please see below link for  further documentation
https://www.clipsal.com/Trade/Products/ProductDetail?catno=60R32

What is the part number of the switch plate to suit 60R32, 32A, 250V switch mechanism?

60R32 depending on the colour of the mechanism will suit 4025XA, 4025XUA in the saturn range  and Z4025XA, Z4025XUA in the Saturn Zen range. It will not fit into any other switch plates in the Saturn or Saturn Zen range.

For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=60R32

Will the 60R32 fit into the 4025XA ?

Yes, the 60R32 series are designed only to be fitted into the 4025XUA and 4025XA series

What size cable does the 60R32 accommodate?

The 60R32 switch mechanism accommodates up to  4 x 1.5mm2 or 3 x 2.5mm2 or a single 4mm or a single 6mm.

Does the 60R32 suit the Zen range also?

Yes, the 60R32 suits the Zen range.

For more information, please refer to the link:
https://www.clipsal.com/Trade/Products/ProductDetail?catno=60R32



Will the 60R32 fit into a 4062VH plate ?

No , The 60R32 series mechs are only designed to go into the 4025XA and 4025XUA plate styles. If Mechs over 32 amp are required for Saturn plates then you will need either 4031VH plate and 30M35 series mechs or the dedicated cooker plates 4061D32 or 4061/45 series
Show More
Homeowner relaxed in their kitchen with Saturn 4000 light switches

Range

Simplicity. Beauty. Style.

The Clipsal Saturn 4000 Series is specifically designed to offer a seamless electrical solution for the home. It offers stylish wall switches and sockets with the choice of glass-look fascia’s in three distinctive colours, or the metallic finishes of Saturn Horizon.

Saturn 4000 goes beyond simple light switches and power points. It is a complete electrical accessory solution that gives superior functionality while enhancing your home’s décor.

Its revolutionary push button technology gives you smooth reliable operation at the touch of a button. And the architecturally designed fascias look great and are a breeze to clean.
