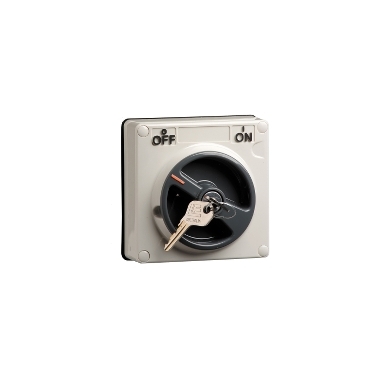

Surface Switch IP66 3 Pole 10A Key Less Enclosure

Grey | Surface Switch IP66 3 Pole 10A Key Less Enclosure

Surface Switch IP66 3 Pole 10A Key Less Enclosure

Item Number: 56K1SW310LE-GY

Retail
$589.08
RRP (Inc. GST)
Colour Grey (GY)
  • Grey 1 PCE

Product Dimensions

Width icon

Width101 mm

Height icon

Height107 mm

Depth icon

Depth76 mm

See full specifications

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

switch

Device application

control

Colour

cover: grey

Market segment

  • small commercial
  • industry
  • utility
    • Sustainable offer status

      Green Premium product

      Physical

      Device presentation

      basic element with full cover plate

      Switch function

      3-pole

      Actuator

      key

      Control type

      rotary knob

      Number of poles

      3

      Device mounting

      surface

      Local signalling

      without

      [Ue] rated operational voltage

      500 V AC 50 Hz

      Rated current

      10 A

      Marking

      ON-OFF

      Height

      107 mm

      Width

      101 mm

      Depth

      76 mm

      Net weight

      0.001 kg

      Ambient air temperature for operation

      -25-75 °C

      IP degree of protection

      IP66 conforming to AS 60529

      Standards

      AS/NZS 3133

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP120809EN

      Material

      Material

      PC (polycarbonate)

      Others

      Handle colour

      grey

      Suitability for isolation

      yes

      Poles description

      3P

      Tightening torque

      0.8 N.m

      Breaking capacity

      10 kA

      Motor M-rating AS3133

      M200 at 500 V

      Rotary handle padlocking

      2 padlocks 8-8 mm

      Marking location

      marking on surface

      Targeted country

      Australia

      Package 1 Weight

      0.001 kg
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • CAD Files and Packs

      • Product Brochures

      • Technical Data Catalogues

      • Product Environmental

      • Specifications

      • Certificates (MSDS)

      • Corporate Marketing

      Frequently Asked Questions

      hide show

      How do I get a 56 Series Double outlet?

      56E4 (4 Gang Base) + 56SO310LE (socket outlet) X2 + 56SW110LE (Switch) X2

      Is the 56C310 available with a key switch?

      No, unfortunately this is not a standard part. However it can be made out of parts.

      You would need:
      56K1SW1156LE or 56K2SW115LE
      56SO310LE
      56E2

      For further information please visit https://www.clipsal.com/Trade/search-results?q=56

      What is part number for 6K1SW120CK less enclosure?

      Part number is a special 56K1SW120CKL.

      What 56 series key switch can only be locked in the off position?

      The 56 series key switch that can only be locked in the off position is the 56K1SW132.

      How many keys does the 56K1SW115CK come with?

      The 56K1SW115CK comes with two keys.

      Some of the key features are:
      • Standard security KSW
      • 107 mm Height x 101 mm Width x 87mm Depth
      • M80 rating
      • 6 - 1.5 AWG conductor terminal
      • For locking in the Off position
      For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=56K1SW115CK



      What key number is supplied with the 56 series commom keyed switches, eg 56K1SW120CK or 56K2SW120CK ?

      It is a L&F style key with number 60103

      For more information on this product range please visit the Clipsal web site on the link provided
      https://www.clipsal.com/Trade/search-results?q=56k
