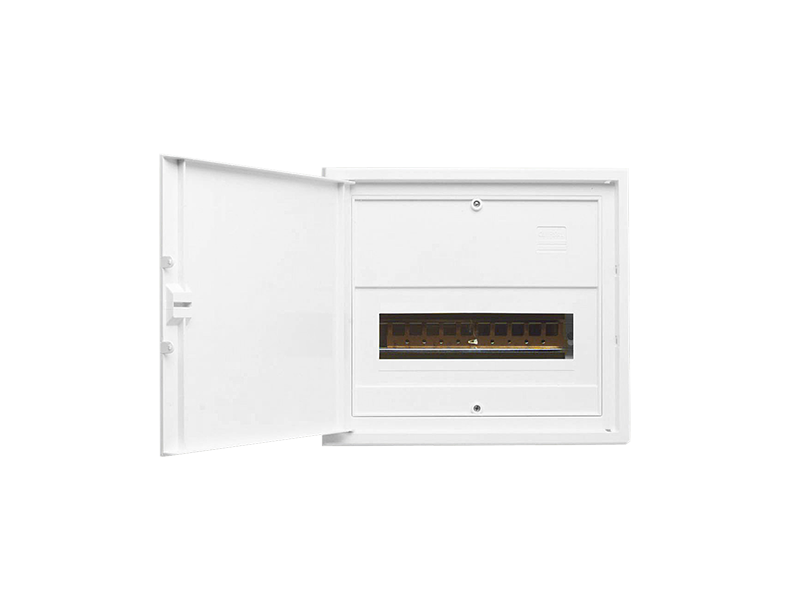

Switchboard Enclosure, Series 4FC, 11 Module, Full DIN Rail, Flush Mount

White Electric | Switchboard Enclosure, Series 4FC, 11 Module, Full DIN Rail, Flush Mount

Switchboard Enclosure, Series 4FC, 11 Module, Full DIN Rail, Flush Mount

Item Number: 4FC11FD-WE

Retail
$298.24
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 4FC

Product brand

Clipsal

Physical

Device mounting

flush

Height

281 mm

Depth

82 mm

Mounting support

DIN rail

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure

ENVPEP121018EN

Material

Material

plastic: housing

Others

Number of horizontal rows

1

Number of modules

11

Cover type

  • transparent
  • closed cover
    • Unit Type of Package 1

      PCE

      Number of Units in Package 1

      1

      Package 1 Weight

      2923 g

      Package 1 Height

      105 mm

      Package 1 width

      283 mm

      Package 1 Length

      315 mm
      Show all specifications

      Frequently Asked Questions

      hide show

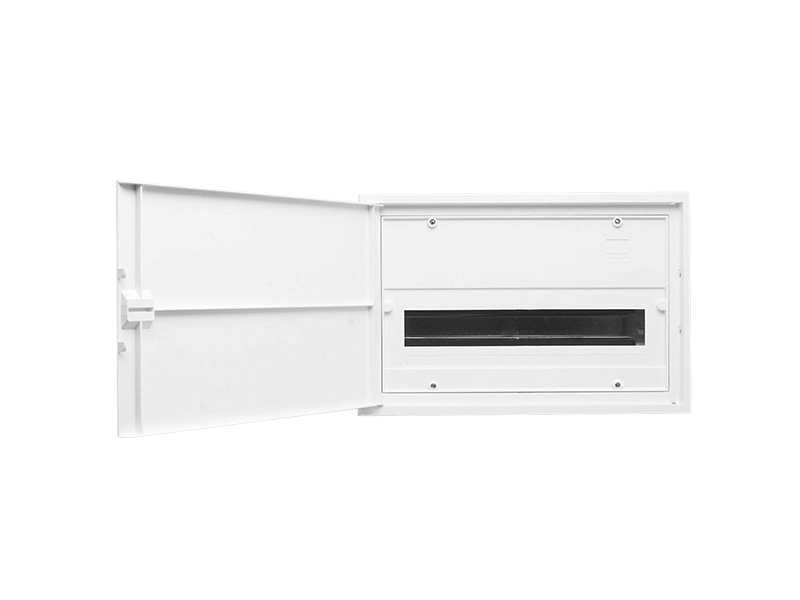

      What is the maximum current rating of the Clipsal 17 way switchboard eg 4FC17FD?

      The 4FC17FD and 4C17FD have a maximum current rating of 100A

      Is 4FC17FD, 17 module flush mount board fire rated?

      Unfortunately not, 4FC17FD is not fire rated.

      For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=4FC17FD





      Is there a metal backing plate/ wall box available for the 4FCC15 Switchboard enclosure?

      No, unfortunately we only do metal backing plates/ wall boxes for the switchboard enclosure 4FC11FD and the 4FC17FD.
      You will need to source another manufacturer for this part or create your own.

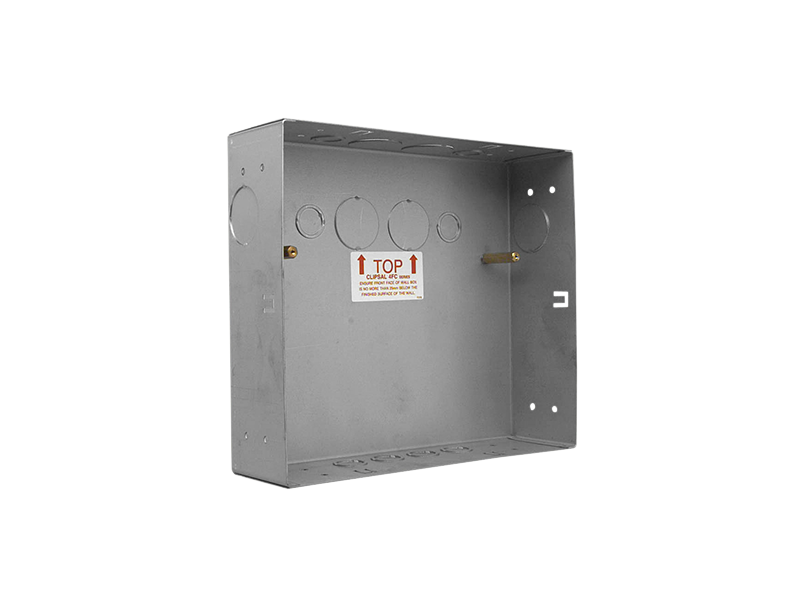

      • The part number for the backing plate/ wall box to suit the switchboard 4FC11FD is 4FC11WB.

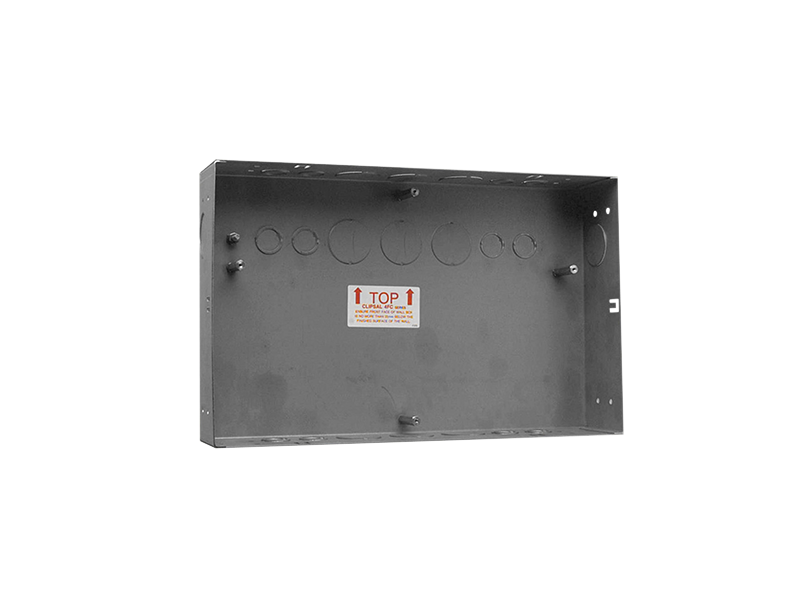

      • The part number for the backing plate/ wall box to suit the switchboard 4FC17FD is 4FC17WB



      For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=4FC11WB



      4FC11FD--------------------------------------------------------------------- 4FC11WB




      4FC17FD--------------------------------------------------------------------4FC17WB

      What is the width of the 4C11FD?

      The width of the 4C11FD is 236mm.

      For more information, please refer to the link:
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=4C11FD

      What is the IP rating on 4FC11FD?

      There is no IP rating given on this flush mount board.


      What is the replacement board for the 4FCC24 with a metal back?

      The 4FCC24 was replaced by 4FCC30. The only parts with a metal backing available are 4FC11FD and 4FC17FD
      Please see following website link and look under the documents tab for more information and entire range.
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=4FCC30
