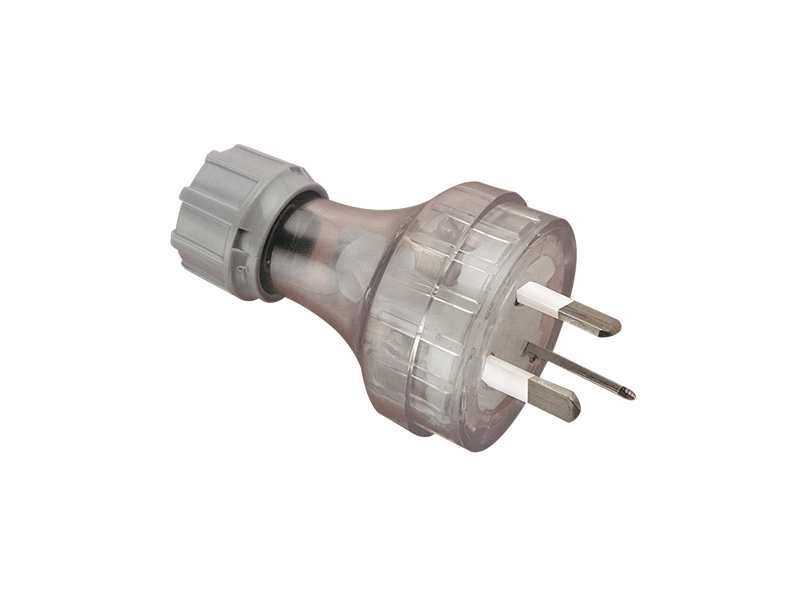

Plug, Flexible, Straight, 3 PIN, 10A, 250V, Extra Heavy Duty

Grey | Plug, Flexible, Straight, 3 PIN, 10A, 250V, Extra Heavy Duty

Plug, Flexible, Straight, 3 PIN, 10A, 250V, Extra Heavy Duty

Item Number: 439SXHD-GY

Retail
N/A
RRP (Inc. GST)
Colour Grey (GY)
  • Grey 1 PCE
  • Transparent 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product brand

Clipsal

Colour

grey

Physical

[In] rated current

10 A

[Ue] rated operational voltage

230 V 50/60 Hz conforming to EN 60309-2

Connections - terminals

screw terminal

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

plastic

Others

Voltage colour

blue

Plug, socket, control station shape

straight

Duration

6 h

Package 1 Weight

43 g

Package 1 Height

40 mm

Package 1 width

70 mm

Package 1 Length

100 mm
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • Technical Data Catalogues

  • Certificates (MSDS)

Frequently Asked Questions

hide show

Is there a plug top which is 10 amp and can take 2.5mm² cable?

Yes, the 439SXHD is 10 amp and can take 2.5mm² cable.

For more information, please refer to the link:
https://www.clipsal.com/Trade/Products/ProductDetail?catno=439SXHD


Is there a plug top which is 10 amp and can take 2.5mm² cable?

Yes, the 439SXHD is 10 amp and can take 2.5mm² cable.

For more information, please refer to the link:
https://www.clipsal.com/Trade/Products/ProductDetail?catno=439SXHD

What is the alternate for a Clipsal 439/15HD (PVC 15A Plug top)

The 439/15HD is obsolete the alternate is 905

What is the part number for a 4 pin surface socket for the 4 pin plug 439/4HD?

The part number for the 4 pin surface mount socket is 410-WE.
