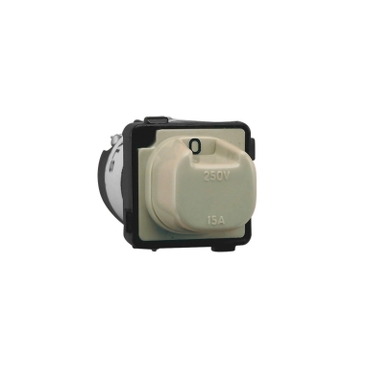

Switch Mechanisms, 30 Series, 250V 15A - Rotary 2 On - 2 Off

White Electric | Switch Mechanisms, 30 Series, 250V 15A - Rotary 2 On - 2 Off

Switch Mechanisms, 30 Series, 250V 15A - Rotary 2 On - 2 Off

Item Number: 30RSM2-WE

Retail
$23.75
RRP (Inc. GST)
Colour White Electric (WE)
  • White Electric 1 PCE
  • Black 1 PCE
  • Cream 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • Series 30
  • Standard Series
    • Product brand

      Clipsal

      Sustainable offer status

      Green Premium product

      Physical

      Device presentation

      basic element

      Control type

      rotary knob

      Device mounting

      flush

      Local signalling

      without

      [Ue] rated operational voltage

      250 V AC

      Rated current

      15 A

      Marking

      without marking

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP120506EN

      Material

      Material

      plastic

      Others

      Package 1 Weight

      16 g

      Package 1 Height

      20 mm

      Package 1 width

      20 mm

      Package 1 Length

      40 mm
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • Product Brochures

      • Certificates (MSDS)

      • Corporate Marketing

      Frequently Asked Questions

      hide show

      Is there a rotary switch mech in 30 series?

      Yes, We offer the 30RSM3 which is a rotary 3 on 1 off and the 30RSM2 which is a rotary 2 on 2 off.

      Can i get a knob only for a 30SRM3?

      Yes the part number is 30RSM3-KB.

      Will the 30RSM mechanism fit into a Saturn plate?

      No, unfortunately this mechanism does'nt fit the Saturn series. However, this mechanism will fit into the coms Saturn series comunication plate 4031VH.

      is there a generic capacitor only, available for fan speed controllers ?

      No, we only sell the capacitors with our fan controllers, as capacitor ratings vary amongst brands
      If alternate brands are used the original capacitor for the fan  can be used with a 3 position rotary mech such as the 30RSM3 or 60RSM3
      For more information please visit the Clipsal web site on the link provided
      https://www.clipsal.com/Trade/search-results?q=fan%20control





      What is the part number for a Saturn range rotary dimmer?

      The part numbers for a Saturn range rotary dimmer are - 60RSM2 & 60RSM3

      For further information , visit link below;-
      https://www.clipsal.com/Trade/search-results?q=60RSM2
      https://www.clipsal.com/Trade/search-results?q=60RSM3


      What is the M rating for on your switches?

      The M rating is a rating given to distinguish the current size of a motor that the specific switch can handle.  This is resolved by dividing the M rating by 4.

      E.g. M rating = M50

      50÷4 =12.5A Therefore this switch has the capacity to drive a motor with a rating of 12.5A.
