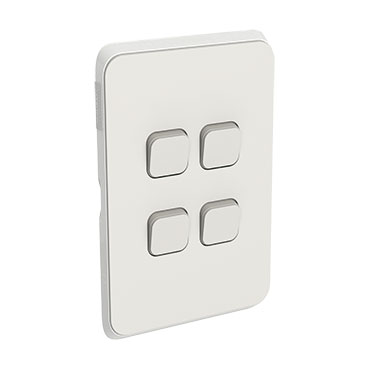

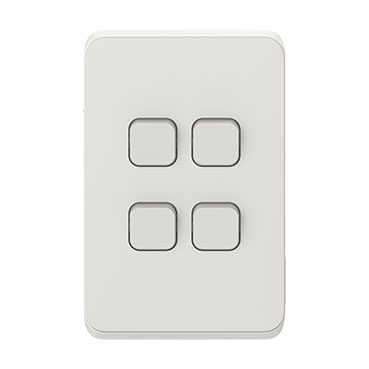

Clipsal Iconic Switch Plate Skin 4 Gang, Horizontal/Vertical Mount

Vivid White | Clipsal Iconic Switch Plate Skin 4 Gang, Horizontal/Vertical Mount

Clipsal Iconic Switch Plate Skin 4 Gang, Horizontal/Vertical Mount

Item Number: 3044C-VW

Build this product i

Retail
$8.68
RRP (Inc. GST)
Colour Vivid White (VW)
  • Vivid White 1 PCE
  • Anthracite 1 PCE
  • Cool Grey 1 PCE
  • Warm Grey 1 PCE
  • Extra Vivid White 1 PCE

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth9 mm

See full specifications

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Clipsal Iconic 3025 exploded view
3043G Rear Perspective

Specifications

Design

Range

Clipsal Iconic

Aesthetic name

Iconic

Product or component type

cover frame

Colour tint

vivid white (VW)

Product destination

switch

Surface treatment

untreated

Physical

Type of packing

polybag

Quantity per set

set of 20

Range compatibility

switch

Device mounting

flush

Number of rocker

4

Installation direction

horizontal/vertical

Fixing mode

clip-on

Height

120 mm

Width

78 mm

Depth

9 mm

Net weight

0.02 kg

Ambient air temperature for operation

0-45 °C

Relative humidity

10-95 %

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Not compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP120506EN

Material

Material

  • PC (polycarbonate): skin
  • ABS (acrylonitrile butadiene-styrene): skin
    • Others

      Package 1 Weight

      22.76 g

      Package 1 Height

      9.46 mm

      Package 1 width

      83.3 mm

      Package 1 Length

      124.79 mm
      Show all specifications

      Frequently Asked Questions

      hide show

      Is Iconic intermediate mechanism available assembled on a switch plate?

      Unfortunately, the Iconic intermediate mechanism is not available assembled on a plate. It can put together using below part numbers;
      40MIL  - Clipsal Iconic Intermediate Switch Mechanism, 250V, 10A, LED.
      +
      3041G - Clipsal Iconic - Switch-Grid, Vertical/Horizontal Mount, 1 Gang
      +
      3041C - Clipsal Iconic - Skin Switch Plate Cover, Vertical/Horizontal Mount, 1 Gang
      For further information, please visit the below links:
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=40MIL
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=3041G
      https://www.clipsal.com/Trade/search-results?q=3041C


      What are the part numbers to make up a 4 gang switch with LED for the Iconic range?

      The part numbers to make up a 4 gang switch with LED for the Iconic range are - 3044G , 40ML & 3044C

      For further information visit links below:-
      https://www.clipsal.com/Trade/search-results?q=3044G
      https://www.clipsal.com/Trade/search-results?q=40ML
      https://www.clipsal.com/Trade/search-results?q=3044C
      User-added image

      What are the replacement parts needed to make up a XACA871 Pendant Station

       XACA08 x 1  EPTY PNDANT CONTROL STATION XACA 8 VER + ZB2BY2307 x 1 LEGEND 30 X 40 MM BLACK UP + ZB2BY2308 x 1
      LEGEND 30 X 40 MM BLACK DOWN + ZB2BY23EA x 1 LEGEND PL EAST 30X40 + ZB2BY23WE x 1 LEGEND PL WEST 30X40 + ZB2BY23NO x 1
      LEGEND PL NORTH 30X40 + ZB2BY23SO x 1 LEGEND PL SOUTH 30X40 + ZB2BY2303 x 1 LEGEND 30 X 40 MM BLACK START + ZB2BY2931
      x 1 LEGEND 30 X 40 MM RED 0 + ZB2BE101 x 7 SPRING RETURN CONTACT BLOCK 1 NO + ZB2BE102 x 1 SPRING RETURN CONTACT BLOCK 1 NC
      + XACA009 x 4 PADLOCK ATTACHMENT + XACA9411 x 4 ROUND HEAD FOR PUSHBUT TO N SPRING RETUR +
      XACA9412 x 3 ROUND HEAD FOR PUSHBUT TO N SPRING RETUR + ZA2BS834 x 1 PUSHBUTTON

      What is the max current rating of an ATS22 relay?

      Issue:
      Max current rating of an ATS22 relay.

      Product Line:
      Altistart 22, ATS22

      Environment:
      All

      Cause:
      N/A

      Resolution:
      Max switching capability:
      5A - 250VAC or 30VDC on resistive load (p.f.=1)
      2A - 250VAC or 30VDC on inductive load (p.f=0.4)

      What is the part number for a 6 gang switch for the Iconic range?

      The part number for a 6 gang switch for the Iconic range is - 3046G & 3046C

      For further information , visit link below:-
      https://www.clipsal.com/Trade/search-results?q=3046G
      https://www.clipsal.com/Trade/search-results?q=3046C
      User-added image

      User-added image



      What is the part number for Iconic 3 gang grid and cover assembly (less mechanisms)?

      In the Iconic range, switch grid and skin(cover) are sold separately.
      Part number of the 3 gang switch grid is 3043G. For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=3043G
      Part number of the skin is 3043C. Skins are available in Vivid White(VW), Warm White(WY), Cool Grey(CY) and Anthracite(AN).
      For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=3043C-WY



      Show More

      Range

      The Clipsal Iconic range is founded on a specialised electrically safe grid plate.
      Once installed by an electrician, it’s safe for anyone to change the skins at any time by simply clipping off the standard skins and snapping on a new design.

      Iconic’s interchangeable standard, Styl and Essence skins provide clever options tailored to suit a homes’ decor or family’s lifestyle.
