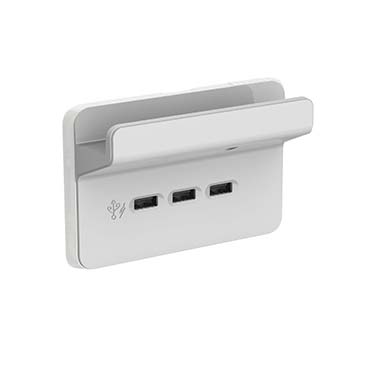

Clipsal Iconic USB Charging Station Skin with Shelf 3 Gang, Horizontal Mount

Vivid White | Clipsal Iconic USB Charging Station Skin with Shelf 3 Gang, Horizontal Mount

Clipsal Iconic USB Charging Station Skin with Shelf 3 Gang, Horizontal Mount

Item Number: 3043HS-VW

Great option for kitchen, study or bedrooms. Suitable for tablets and smart phones with 3x 2.1A (4.5A max) charging with patented current management and BC1.2 compliance. Large floating wrapper terminals and all-in-one design provide installation simplicity and reliability.

Datasheet

Product Dimensions

Width icon

Width120 mm

Height icon

Height78 mm

Embedding depth icon

Embedding depth35 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal Iconic

Aesthetic name

Iconic

Product or component type

cover frame

Colour tint

vivid white (VW)

Product destination

USB charger

Surface treatment

untreated

Sustainable offer status

Green Premium product

Physical

Type of packing

polybag

Quantity per set

set of 1

Range compatibility

Clipsal Iconic USB charger

Device mounting

flush

Number of power socket outlets

3

Installation direction

horizontal

Fixing mode

clip-on

Height

78 mm

Width

120 mm

Depth

35 mm

Embedding depth

35 mm

Ambient air temperature for storage

-5...50 °C

Ambient air temperature for operation

0...40 °C

Relative humidity

15...95 %

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP120506EN

Others

Package 1 Bare Product Quantity

1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.5 cm

Package 1 Width

7.8 cm

Package 1 Length

12 cm

Package 1 Weight

40 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

32.8 cm

Package 2 Width

10.2 cm

Package 2 Length

14.65 cm

Package 2 Weight

604 g

Unit Type of Package 3

CAR

Number of Units in Package 3

50

Package 3 Height

33.5 cm

Package 3 Width

26.1 cm

Package 3 Length

33.5 cm

Package 3 Weight

3.388 kg
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

Frequently Asked Questions

hide show

I want powerpoints with USB outlets in my house – where is the best place to put them?

Before you think about where to put them, first consider which devices you’re using regularly and how you’re using them, and where.

Traditional power points are often hidden behind furniture and other hard-to-reach locations which is not ideal for device charging.

Consider:

  1. Using the Clipsal Iconic Triple USB Charging Station that has a smart shelf to rest your device on – perfect for kitchen benches, near the couch or in the study.
  2. Installing them in light switches – a very accessible location for beside the bed.

Think realistically about where you want – or don’t want – to use your devices while they’re charging.
