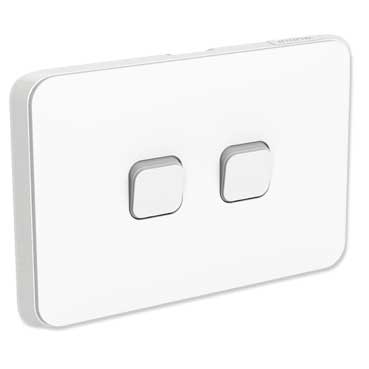

Clipsal Iconic Flush Switch Horizontal Mount, 2 Gang, 1-Way/2-Way, 250V, 10AX

Vivid White | Clipsal Iconic Flush Switch Horizontal Mount, 2 Gang, 1-Way/2-Way, 250V, 10AX

Clipsal Iconic Flush Switch Horizontal Mount, 2 Gang, 1-Way/2-Way, 250V, 10AX

Item Number: 3042HA-VW

Build this product i

Retail
$30.39
RRP (Inc. GST)

The Clipsal Iconic Flush Switch makes lighting control simple while adding a modern look to your home or office. The flush mounted 2-gang switch installs horizontally and provides extra convenience for controlling lights in stairways or large rooms.

Colour Vivid White (VW)
  • Vivid White 1 PCE

Product Dimensions

Width icon

Width120 mm

Height icon

Height78 mm

Depth icon

Depth39 mm

See full specifications

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Clipsal Iconic 3025 exploded view
3043G Rear Perspective

Specifications

Design

Range

Clipsal Iconic

Product or component type

switch

Device application

lighting

Colour tint

vivid white

Physical

Quantity per set

set of 20

Device presentation

complete product

Control type

rocker

Device mounting

flush

Installation direction

horizontal

Switch function

1-pole 1/2-way

Number of rocker

2

Rated current

10 A

[Ue] rated operational voltage

250 V

Height

78 mm

Width

120 mm

Depth

39 mm

Net weight

0.092 kg

EU RoHS Directive

Under investigation

Environmental Disclosure

ENVPEP120506EN

Material

Material

plastic

Others

Package 1 Weight

91.75 g

Package 1 Height

35.02 mm

Package 1 width

83.3 mm

Package 1 Length

124.79 mm
Show all specifications

Frequently Asked Questions

hide show

What is the part number for a 2 gang Iconic switch plate and switch mech and dimmer?

The part number for a 2 gang Iconic switch plate and switch mech and dimmer is - 3042HA , 40M & 41E300PBUD2SM

For further information , visit link below:-
https://www.clipsal.com/Trade/search-results?q=3042HA
https://www.clipsal.com/Trade/search-results?q=40M
https://www.clipsal.com/Trade/search-results?q=41E300PBUD2SM
User-added image

What is the part number for the 1 gang Iconic switch , and can the mech be rotated for horizontal or vertical switch plates?

The part number for the 1 gang Iconic switch , and can the mech be rotated for horizontal or vertical switch plates - 3041VA and yes can be mounted Vertical or Horizontal..
For further information , visit link below:-
https://www.clipsal.com/Trade/search-results?q=3041VA
User-added image
Exploded view of the Clipsal Iconic skins range; Styl, essence and Standard.

Range

Customisable and future-ready

Iconic is based around a unique, electrically safe grid plate, with a choice of three different skin designs that simply clip on top.

Once the grids have been installed by an electrician, it’s safe for anyone to change the skins at any time. Simply clip off the standard skins and clip on the new design.

Interchangeable standard, Styl and Essence skins provide great options to customise to suit specific decor and lifestyle.
