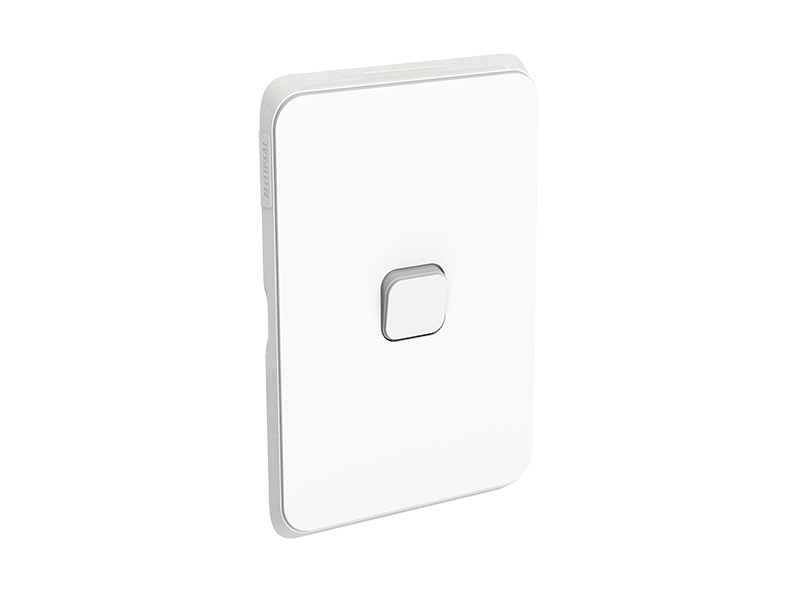

Clipsal Iconic Switch Plate Skin 1 Gang, Horizontal/Vertical Mount, Clip-On

Vivid White | Clipsal Iconic Switch Plate Skin 1 Gang, Horizontal/Vertical Mount, Clip-On

Clipsal Iconic Switch Plate Skin 1 Gang, Horizontal/Vertical Mount, Clip-On

Item Number: 3041C-VW

Build this product i

Retail
$5.60
RRP (Inc. GST)

A modern design makes this Clipsal Iconic Switch Plate Skin ideal for residential use. This switch skin can be mounted in either horizontal or vertical orientation and features a fast and simple installation.

Colour Vivid White (VW)
  • Vivid White 1 PCE
  • Anthracite 1 PCE
  • Cool Grey 1 PCE
  • Warm Grey 1 PCE
  • Extra Vivid White 1 PCE

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth9 mm

See full specifications

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Clipsal Iconic 3025 exploded view
3043G Rear Perspective

Specifications

Design

Range

Clipsal Iconic

Aesthetic name

Iconic

Product or component type

cover frame

Colour tint

vivid white (VW)

Product destination

switch

Surface treatment

untreated

Physical

Type of packing

polybag

Quantity per set

set of 20

Range compatibility

switch

Device mounting

flush

Number of rocker

1

Installation direction

horizontal/vertical

Fixing mode

clip-on

Height

120 mm

Width

78 mm

Depth

9 mm

Net weight

0.02 kg

Ambient air temperature for operation

0-45 °C

Relative humidity

10-95 %

EU RoHS Directive

Under investigation

Environmental Disclosure

ENVPEP120506EN

Material

Material

  • PC (polycarbonate): skin
  • ABS (acrylonitrile butadiene-styrene): skin
    • Others

      Package 1 Weight

      20.09 g

      Package 1 Height

      9 mm

      Package 1 width

      83 mm

      Package 1 Length

      125 mm
      Show all specifications

      Frequently Asked Questions

      hide show

      Is Iconic intermediate mechanism available assembled on a switch plate?

      Unfortunately, the Iconic intermediate mechanism is not available assembled on a plate. It can put together using below part numbers;
      40MIL  - Clipsal Iconic Intermediate Switch Mechanism, 250V, 10A, LED.
      +
      3041G - Clipsal Iconic - Switch-Grid, Vertical/Horizontal Mount, 1 Gang
      +
      3041C - Clipsal Iconic - Skin Switch Plate Cover, Vertical/Horizontal Mount, 1 Gang
      For further information, please visit the below links:
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=40MIL
      https://www.clipsal.com/Trade/Products/ProductDetail?catno=3041G
      https://www.clipsal.com/Trade/search-results?q=3041C


      What is the part number for Iconic foxtel TV outlet?

      The part numbers for Iconic Foxtel TV outlet are 3041G + 3041C-** + 40PFM-TN

      3041G Clipsal Iconic - Switch-Grid, Vertical/Horizontal Mount, 1 Gang

      3041C-WY Clipsal Iconic - Skin Switch Plate Cover, Vertical/Horizontal Mount, 1 Gang

      Clipsal Iconic - TV Antenna Socket, 75 Ohm, F-Type

      For further information see:https://www.clipsal.com/Trade/Products/ProductDetail?catno=3041G:https://www.clipsal.com/Trade/Products/ProductDetail?catno=3041C-WYhttps://www.clipsal.com/Trade/search-results?q=40PFM


      What part numbers are needed to put together an Iconic 1 gang electronic Pushbutton switch plate (Vivid white)?

      Below are the part numbers needed to put together an Iconic 1 gang electronic Pushbutton switch plate :

      3041G - Clipsal Iconic - Switch Grid, Vertical/Horizontal Mount, 1 Gang
      For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=3041G

      +

      3041C-VW -Clipsal Iconic - Skin Switch Plate Cover, Vertical/Horizontal Mount, 1 Gang, Vivid White
      For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=3041C-VW​

      +
      41E350PBES2SM-VW -Clipsal Iconic - Electronic Switch Mechanism, Push Button with ControlLink (without bluetooth) 2-wire, 350W
      For further information, please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=41E350PBES2SM

      What is the max current rating of an ATS22 relay?

      Issue:
      Max current rating of an ATS22 relay.

      Product Line:
      Altistart 22, ATS22

      Environment:
      All

      Cause:
      N/A

      Resolution:
      Max switching capability:
      5A - 250VAC or 30VDC on resistive load (p.f.=1)
      2A - 250VAC or 30VDC on inductive load (p.f=0.4)

      What is the replacement for part number 30M15?

      The replacement for part number 30M15 is 30USM. 30USM is an universal rocker mechanism rated to 20A / 16AX, 250V, 1 way / 2 way.
      For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=30USM
      User-added image

      What is the part number for a 6 gang switch for the Iconic range?

      The part number for a 6 gang switch for the Iconic range is - 3046G & 3046C

      For further information , visit link below:-
      https://www.clipsal.com/Trade/search-results?q=3046G
      https://www.clipsal.com/Trade/search-results?q=3046C
      User-added image

      User-added image


      Show More

      Range

      The Clipsal Iconic range is founded on a specialised electrically safe grid plate.
      Once installed by an electrician, it’s safe for anyone to change the skins at any time by simply clipping off the standard skins and snapping on a new design.

      Iconic’s interchangeable standard, Styl and Essence skins provide clever options tailored to suit a homes’ decor or family’s lifestyle.
